*Discontinued* TownSteel - DBDI-62 - Commercial Deadbolt - Double - IC Core (SFIC) - 2-3/4 " Backset - Satin Chrome - Grade 1
Out of Stock
SKU:
TNS-DBDI-62-26D-delete
NSID:
7133
- $54.33
-
$137.00 - $54.33
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TNS-DBDI-62-26D

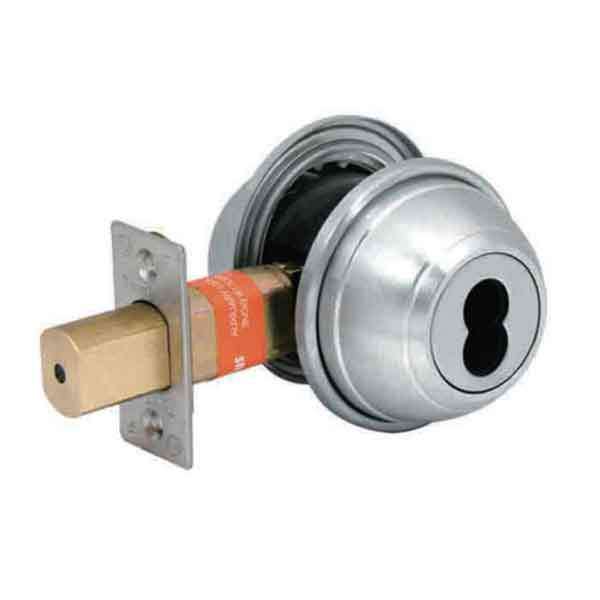

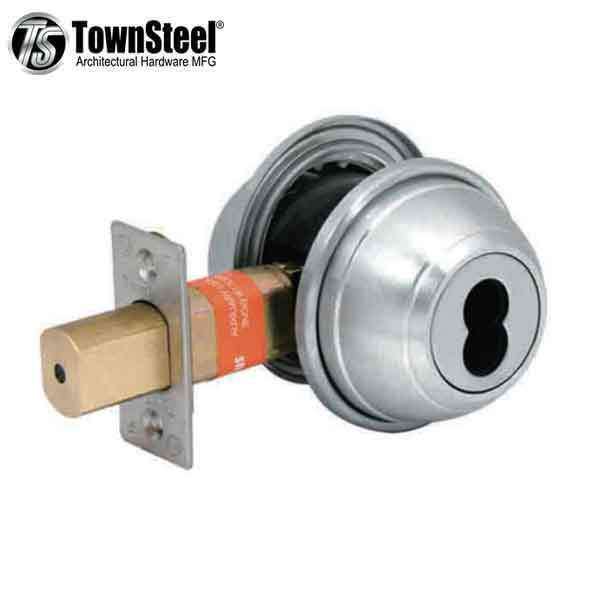

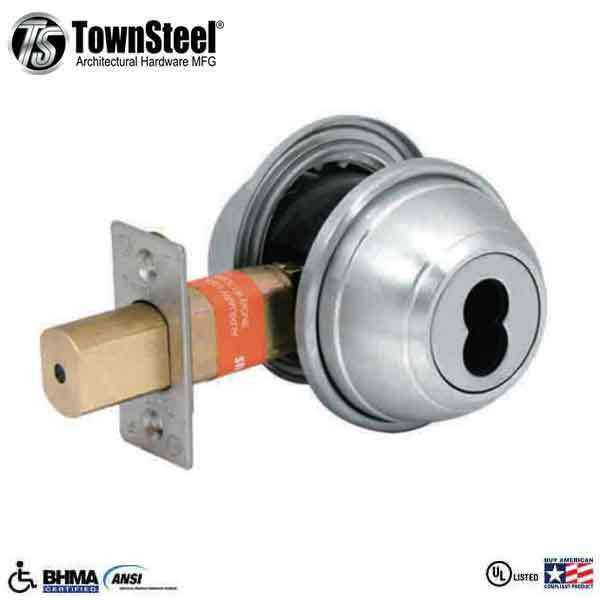

The DBDI-62 is a Grade 1 Heavy Duty Commercial deadbolt. Tamper resistant solid brass one piece housing provides a positive deterrent to forced entry. Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)
More Information Below
- $54.33
-
$137.00 - $54.33
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Application | To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired |
| Door Thickness |
1-9/16″ to 2″ |
| Backset | 2-3/4″ standard |
| Deadbolt | Solid brass with hardened steel rod insert, 1″ throw |
| Strike | 1-1/8″ x 2-3/4″ lipless |
| Faceplate | 1-1/8″ x 2-1/4″, square corner |
| Finish | US26D |
| Function | Double Cylinder |
| Door Prep |
2-1/8″ diameter for lock, 1″ for latch |
| Cylinder | Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately) |
| Keying |
Keyed different - KD (standard) |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA - Meets or exceeds A156.5-2001 Grade 1 requirements UL - UL 10C 3-hour rated BAA - Meets requirements of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, support@townsteel.com or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
