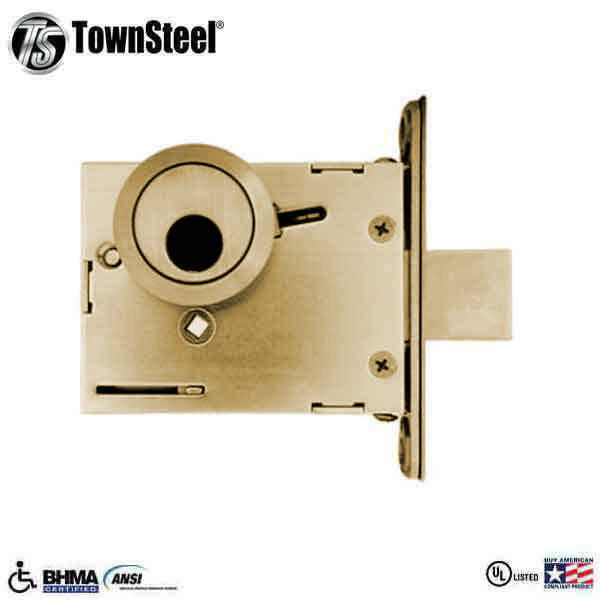

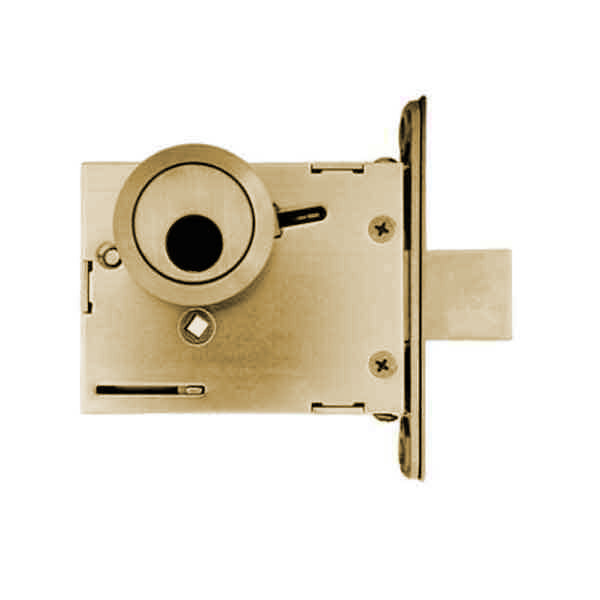

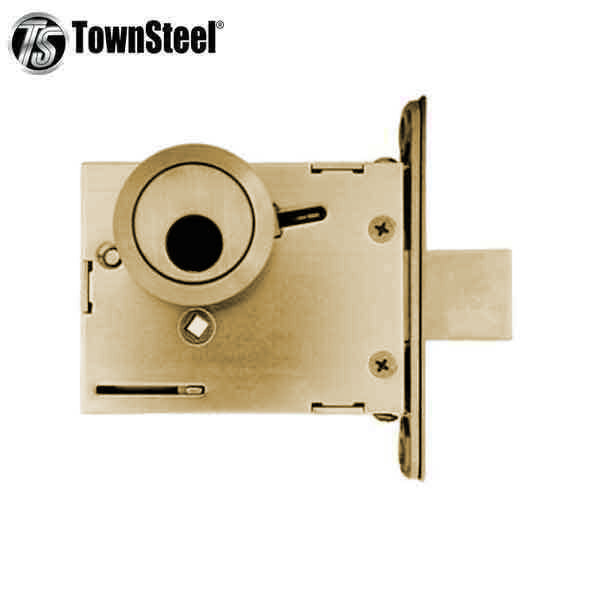

TownSteel - DBM17 - Commercial Mortise Deadbolt - Single Cylinder - IC Core (SFIC) - 2-3/4 " Backset - Polished Brass - Grade 1
The DBM-17 is a heavy-duty commercial quality deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder resists blows attempting to move the lock.
More Information Below:
Specifications
Application | To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired |
Door Thickness |
2-1/4" |
Backset | 2-3/4″ standard |
Deadbolt | Solid brass with hardened steel rod insert, 1″ throw |
Strike | 1-1/8″ x 3-1/2″ |
Faceplate | 1-1/8” x 3-5/8″, square corner |
Function | Single Cylinder with Thumb Turn |
Cylinder | Schlage 7-Pin Small Format IC (SFIC) - (Core sold separately) |
Keying |
Keyed different - KD (standard) |
Finish | 605 - US3 - Polished Brass |
Certifications |
ANSI/BHMA Meets or exceeds A156.5 Grade 1 requirements UL Listed 3-hour fire rating BAA Meets guidelines of the Buy American Act |
Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
