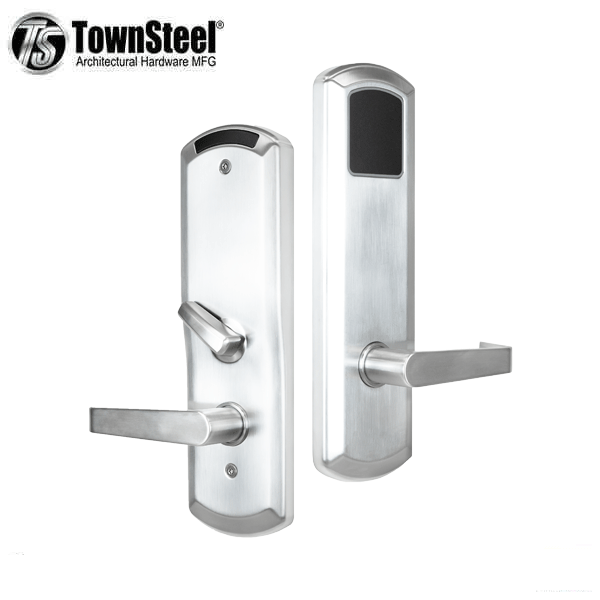

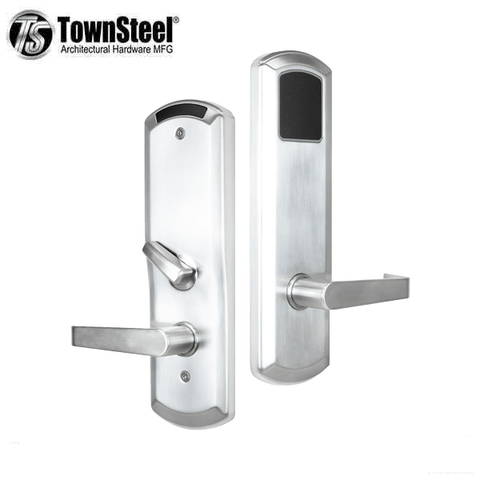

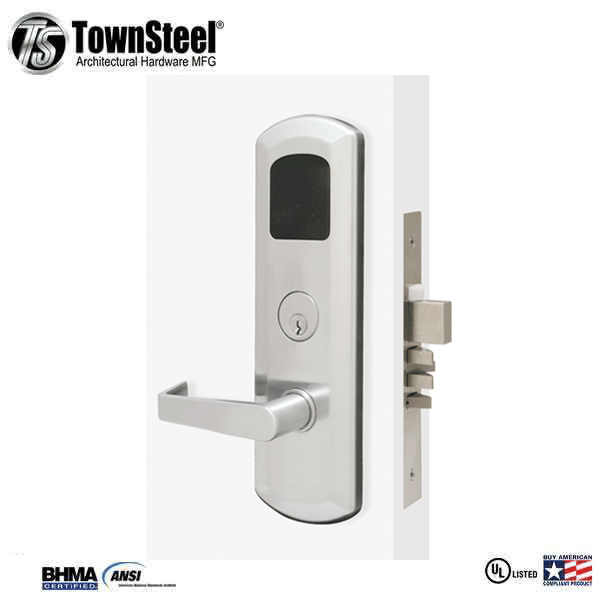

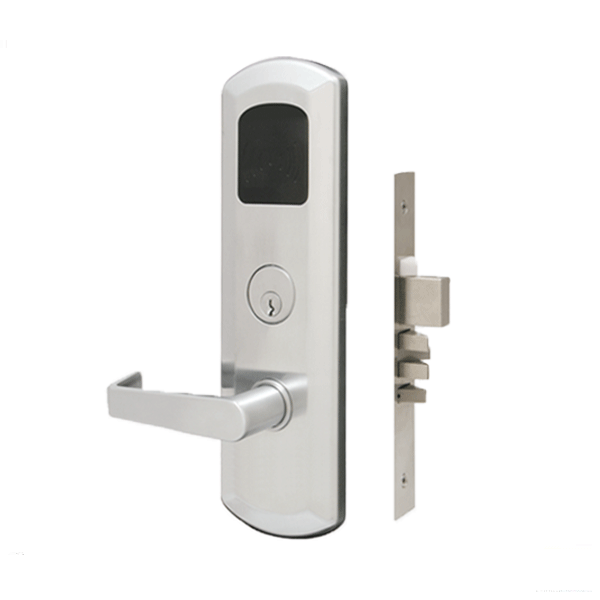

*Discontinued* TownSteel - E-Kontos 1B 5000 Series Mortise Lock - Rigid Lockbody - Manual Deadbolt - 2-3/4″ Backset - Sentinel Lever Set - Right Handed - Satin Chrome - Keyed Different - Grade 1
Out of Stock
SKU:
TNS-EKO1B5R-SRH626-SC-delete
NSID:
26156
- $613.55
-
$1,236.00 - $613.55
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The E-Kontos 1B 5000 Manual Deadbolt Series is a high-quality RFID lockset that works with the MAXX Access System and is ideal for hotel, multi-housing, and access control.
The e-Kontos series is quick and easy to program
More Information Below
- $613.55
-
$1,236.00 - $613.55
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures
- Manual Deadbolt

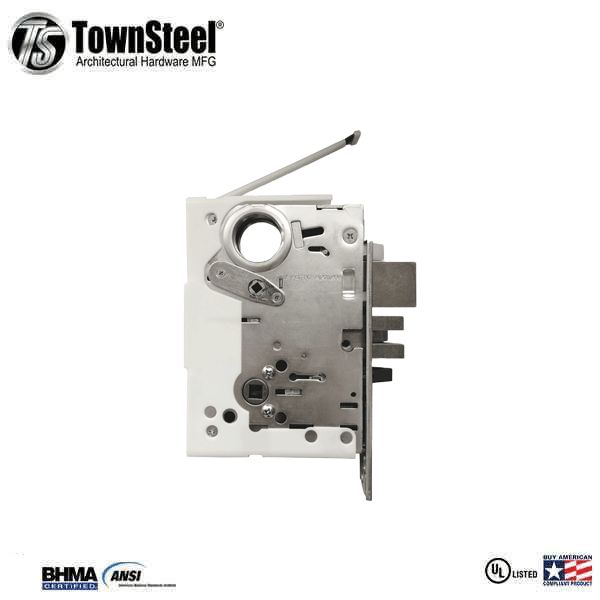

- Rigid Lock body
- 2000 event audit trail
- Door position sensor
- Mechanical Key Override Sensor
- Privacy sensor & Built-in REX sensor
Specifications
| Series: |
E-Kontos 1B 5000 Series |
Lock body: |
Manual Deadbolt Series; Rigid Lock Body |
| Lock: | Front Cylinder. Back Thumbturn |
| Lever Style: |
Sentinel Lever |
| Finish: |
Satin Chrome |
| Backset: | 2-3/4" |
| Lever Return: | Less than 1/2" |
| Door Thickness: | 1-3/4" |
| Deadbolt: | Stainless Steel, with 1" throw. Anti-saw hardened pins |
| Latch Bolt: | Stainless Steel, 3/4" Projection, split |
| Strike: | ANSI Strike, stainless steel |
| Keying: | Keyed Different |
| Handing: | Right Handed but field reversible |
| Cylinder: | 6 pin Schlage C keyway, standard |
| Fire Rating: | UL/ULC - UL 10C 3 Hour Rated |
| Certifications: | ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified |
| Manufacturer Warranty: | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
