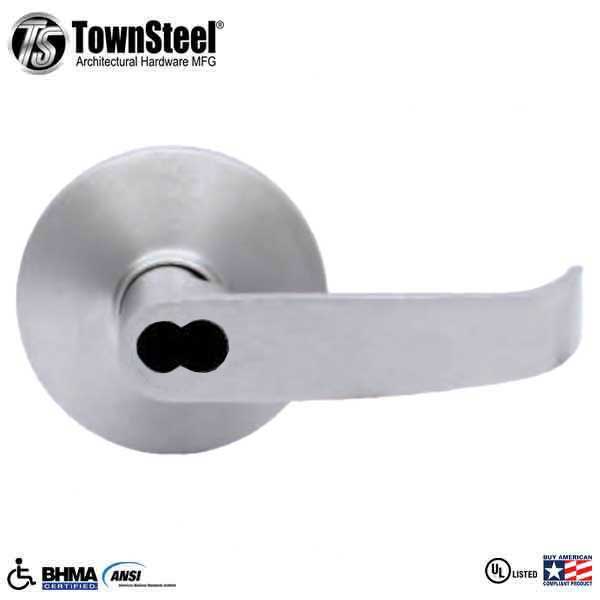

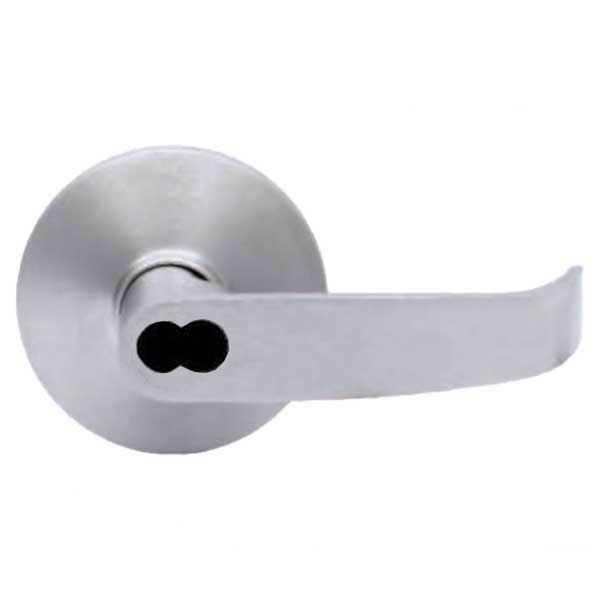

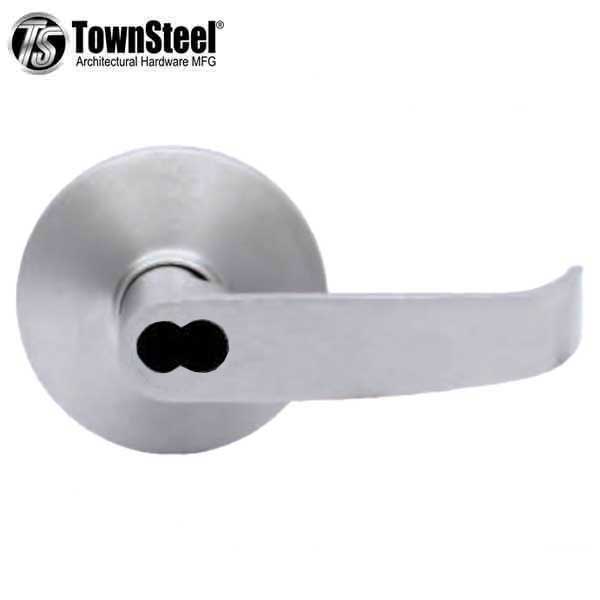

*Discontinued* TownSteel - ED8900LQ - Sectional Lever Trim - Entrance - LQ Curved Lever - Non-Handed - Schlage SLFIC Prepped - Compatible with Rim, SVR, LBR & 3 Point Push Bars - Satin Chrome - Grade 1
Out of Stock
SKU:
TNS-ED8900LQ-08-R-SLFIC-626
NSID:
26212
The ED8900LQ Sectional Lever Trim is designed to be compatible with the 8900 series Rim, SVR, LBR & 3 Point Push Bars Exit Device. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware.
More Information Below
Description
xSpecifications
| Application |
Sectional Lever Trim |
| Function |
Entrance |
| Lever Style |
LQ Lever |
| Handing |
Non-Handed |
| Compatibility |
Compatible with 8900 Series Exit Device: Rim, SVR, LBR & 3 Point Push Bars |
| Dogging | Key Locks or Unlocks Latch Bolt |
| Mounting |
Thru-bolted mounting |
| Rose Diameter |
3-11/32” (84.8mm) |
| Lever Length |
5-1/4” (13mm) |
| Door Thickness | 1-3/4” (45mm) |
| Cylinder | Schlage SLFIC Keyway Prepped (core not included) |
| Finish |
626 Satin Chrome |
| Grade |
1 |
| Certifications |
ANSI/BHMA - A156.3-2008 Grade 1 Certified UL - UL 305 panic hardware listed BAA - Meets requirements of the Buy American Act ADA - Meets guidelines of the Americans with Disabilities Act |
| Manufacturer Warranty | 1-year limited manufacturer warranty |
