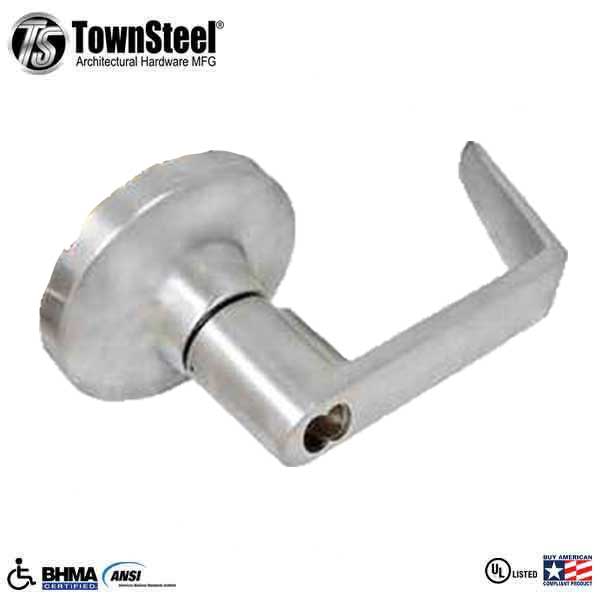

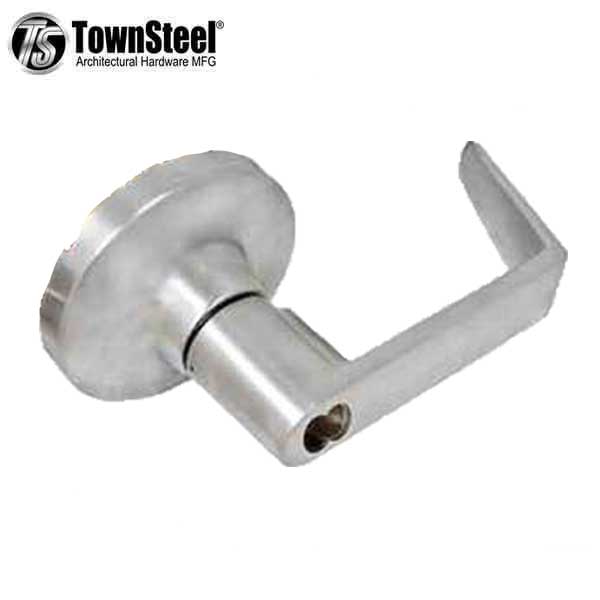

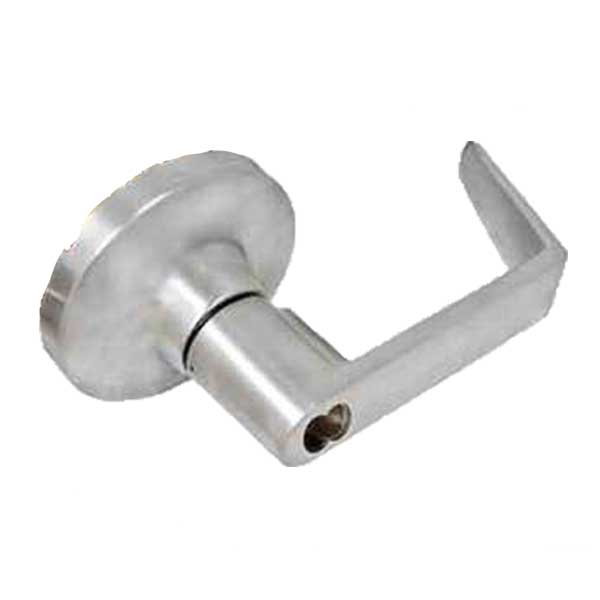

TownSteel - ED8900LS - Sectional Lever Trim - Entrance - LS Regal Lever - Non-Handed - Schlage SLFIC Prepped - Compatible with Rim, SVR, LBR & 3 Point Push Bars - Satin Chrome - Grade 1
The ED8900LS Sectional Lever Trim is designed to be compatible with the 8900 series Rim, SVR, LBR & 3 Point Push Bars. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware.
More Information Below
Specifications
Application |
Sectional Lever Trim |
Function |
Entrance |
Lever Style |
LS Lever |
Handing |
Non-Handed |
Compatibility |
Compatible with 8900 Series Exit Device: Rim, SVR, LBR & 3 Point Push Bars |
Dogging | Key Locks or Unlocks Latch Bolt |
Mounting |
Thru-bolted mounting |
Rose Diameter |
3-11/32” (84.8mm) |
Lever Length |
5-1/4” (13mm) |
Door Thickness | 1-3/4” (45mm) |
Cylinder | Schlage SLFIC Large Format Prepped (core not included) |
Finish |
626 Satin Chrome |
Grade |
1 |
Certifications |
ANSI/BHMA - A156.3-2008 Grade 1 Certified UL - UL 305 panic hardware listed BAA - Meets requirements of the Buy American Act ADA - Meets guidelines of the Americans with Disabilities Act |
Manufacturer Warranty | 1-year limited manufacturer warranty |
