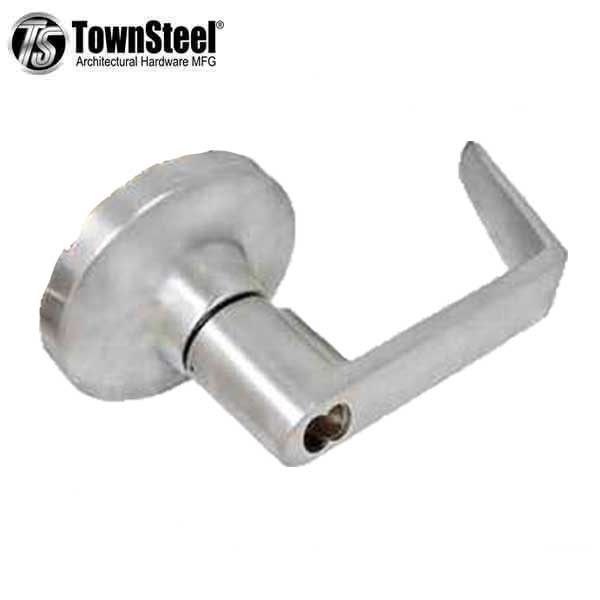

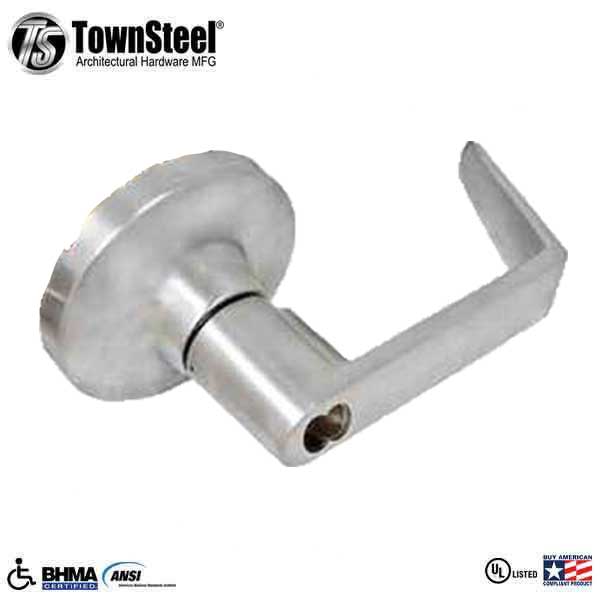

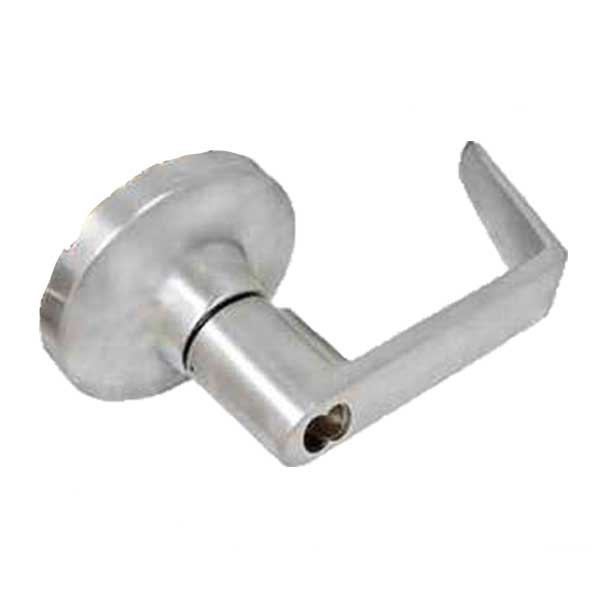

TownSteel - ED8900LS - Sectional Lever Trim - Storeroom - Nightlatch - LS Regal Lever - Non-Handed - Schlage SLFIC Prepped - Compatible with Concealed V/R Exit Device - Satin Chrome - Grade 1
Available to Order
SKU:
TNS-ED8900LS-09-C-SLFIC-626
NSID:
26223
TNS-ED8900LS-09-C-SC-626
The ED8900LS Sectional Lever Trim is designed to be compatible with the 8900 series Concealed V/R Exit Device. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware.
More Information Below
Specifications
| Application |
Sectional Lever Trim |
| Function |
Storeroom - Nightlatch |
| Lever Style |
LS Lever |
| Handing |
Non-Handed |
| Compatibility |
Compatible with 8900 Series Exit Device: Concealed V/R Exit Device |
| Dogging | Key Retracts Latch Bolt |
| Mounting |
Thru-bolted mounting |
| Rose Diameter |
3-11/32” (84.8mm) |
| Lever Length |
5-1/4” (13mm) |
| Door Thickness | 1-3/4” (45mm) |
| Cylinder | Schlage SLFIC Large Format Prepped (core not included) |
| Finish |
626 Satin Chrome |
| Grade |
1 |
| Certifications |
ANSI/BHMA - A156.3-2008 Grade 1 Certified UL - UL 305 panic hardware listed BAA - Meets requirements of the Buy American Act ADA - Meets guidelines of the Americans with Disabilities Act |
| Manufacturer Warranty | 1-year limited manufacturer warranty |
Downloads
