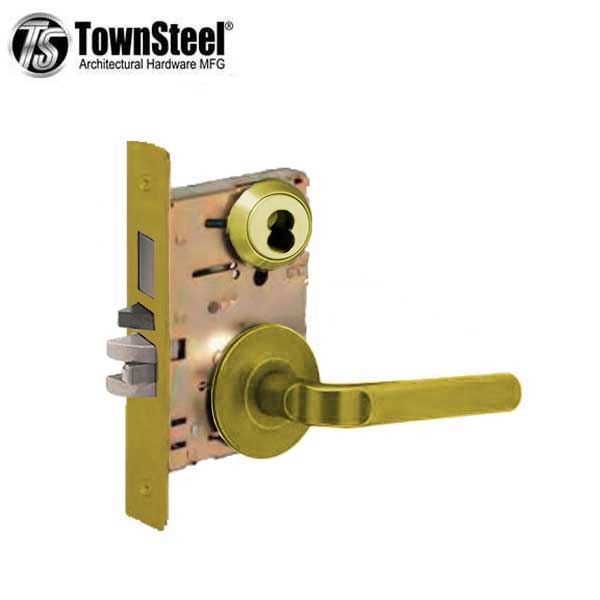

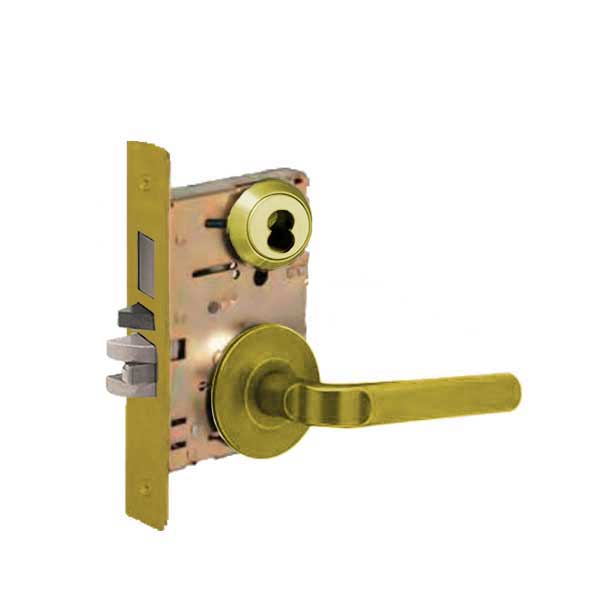

TownSteel - MS - Heavy Duty Designer Mortise Lock - Entrance - 2-3/4″ Backset - Optional Door Thickness - SFIC Less - Unlacquered Brass - Grade 1
In Stock
SKU:
TNS-MSS-C-20-P-3NL-IC225
NSID:
29142
29146
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
TNS-MSS-C-20-P-605NL-IC7
The MS Series Designer mortise lock is designed to handle single opening, stand-alone applications, or can be readily integrated into sophisticated access control systems.
Features:
- G1 Mortise
- Sectional Curve trim
- Entrance, Apartment, Dormitory Function
- Single opening
- Stand-along applications
- Ready for access control system integration
- Optional Door Thickness
- Prepped for 7-Pin SFIC Core (Core Not Included)
Specifications:
| Function | Entrance / Apartment / Dormitory |
| Door Thickness | Either 1-3/4” or 2-1/4" |
| Backset | 2-3/4″ |
| Strike | 1-1/4" X 4-7/8", ASA strike standard |
| Rose | Curve rose |
| Lever |
Pelican style |
| Lever Parameters | Forged brass\cast zinc, plated to match finish |
| Latch bolt | 3/4" projection, stainless steel, split, anti-friction |
| Thumb turn | Brass, Classic Visible standard |
| Faceplate | 1-1/8" x 8" |
| Deadbolt Strike | 1-1/8″ x 2-3/4″ radius corners with security underplate |
| Cylinder | 7 Pin SFIC-less core (Core Not Included) |
| Finish | Bright Brass (US3NL) No lacquer |
| Handing | No Handing |
| Certifications | ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified UL/ULC -- UL 10C 3-hour rated BAA -- Meets guidelines of the Buy American Act ADA --- Meets requirements of the Americans with Disabilities Act RoHS -- Meets requirements of EU RoHS Directive 2002/95/EC |
| Manufacturer Warranty | 2-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
