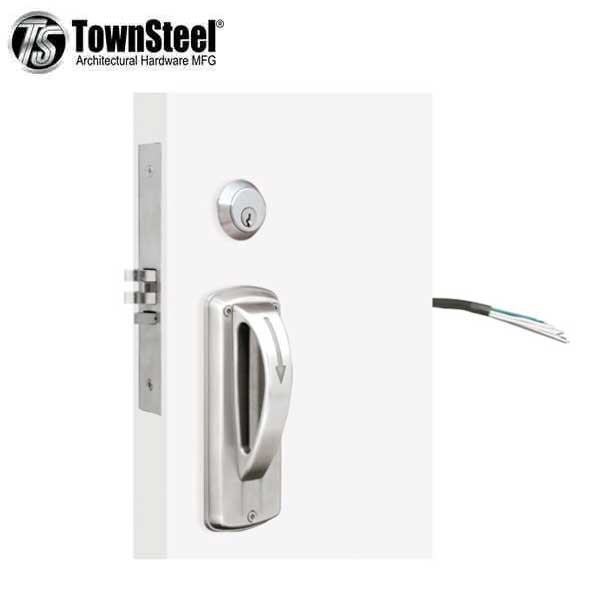

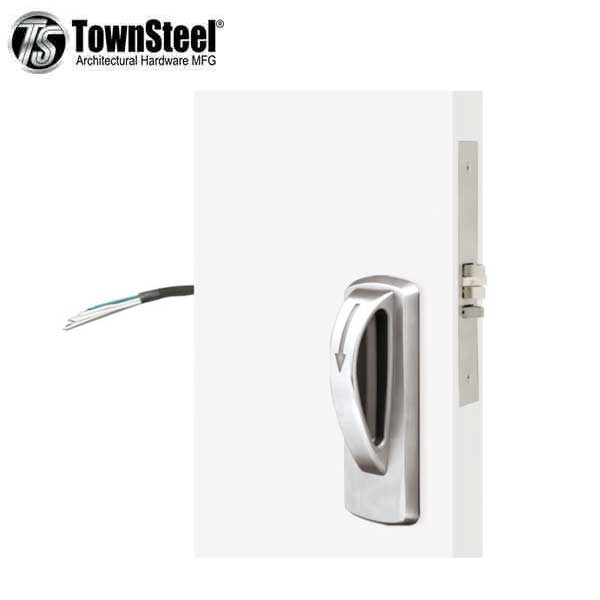

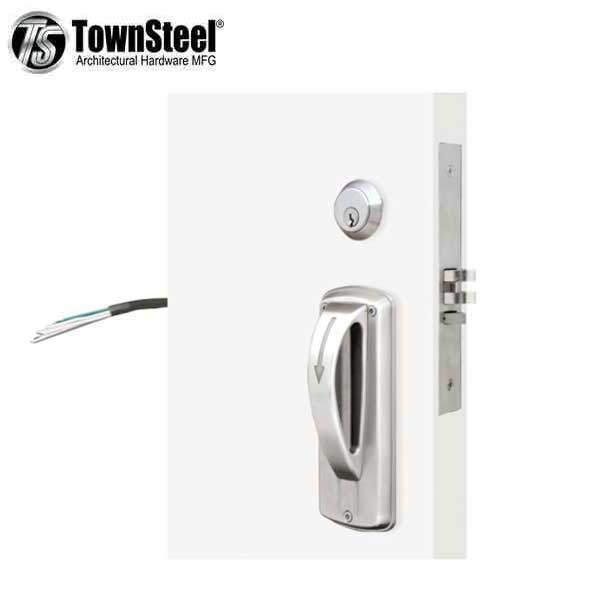

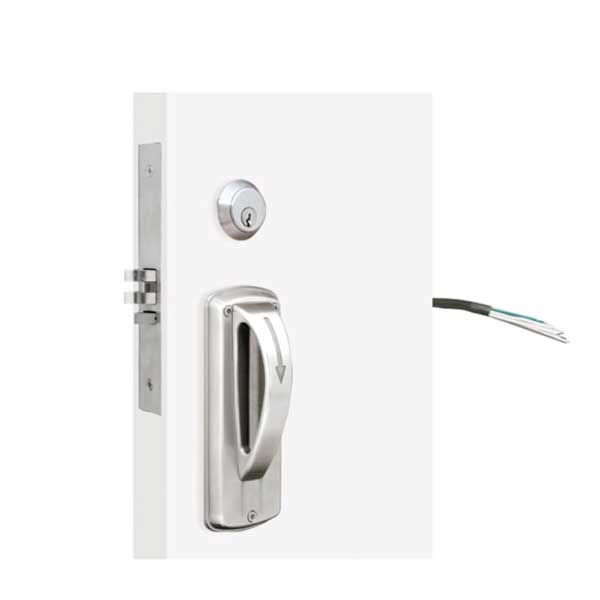

TownSteel - XMRX-A - 5-Point Ligature Resistant Electrified/Motorized Mortise Lock - LH/RH - Fail Safe - 12VDC - Fire Rated - Stainless Steel - Grade 1
In Stock
SKU:
TNS-XMRX-A-121-RH
NSID:
30752
30779
TNS-XMRX-A-121
The XMRX-A Electrified/Motorized Mortise Lock is a grade 1 mortise lockset with a 5-point ligature resistant arch lever. It is applicable for new or retrofit applications, 12VDC, and Fail-Safe. There is a three monitor capacity – Door Position, Latch Position, and Request-for-Exit.
- 5-Point Ligature Resistant Mortise Lock
- Electrified/Motorized
- Fail Safe
- Optional Handing
- 3 monitor capacity: door position, latch position, request-for-exit
- UL 10C Listed 3‐Hour Fire Rating
- ANSI/BHMA Grade 1, UL Listed
- Meets requirements of the Buy American Act
- Meets guidelines of the Americans with Disabilities Act
Specification
| Application | For facilities housing patients in risk |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4″ |
| Deadbolt | Stainless steel, 1" throw |
| Function | Fail Safe |
| Handing | Optional Handing |
| Latch bolt | Stainless steel, 3/4" projection |
| Keying | 6-pin with “C” Keyway |
| Strike | Stainless steel, ASA, 1-1/4″ X4-7/8″ |
| Lever | Arch Lever |
| Monitoring Capability | Request for Exit/ Latch Position/ Door Position |
| Voltage | 12VDC |
| Mounting | Through-bolt, tamper resistant mounting screws, for wood and metal door |
| Finish | 630 Stainless Steel |
| Certifications | UL/ULC 10C listed 3-hour rating Meets requirements of the Buy American Act Meets guidelines of the Americans with Disabilities Act |
| Manufacturer Warranty | 10-year manufacturer limited warranty |
