Trine - 007C - 4-7/8” Light Commercial Electric Strike - Satin Chrome - Fail Secure - Grade 1
In Stock
SKU:
TRN-007C-ES
NSID:
7185
- $82.22
-
$98.66 - $82.22
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

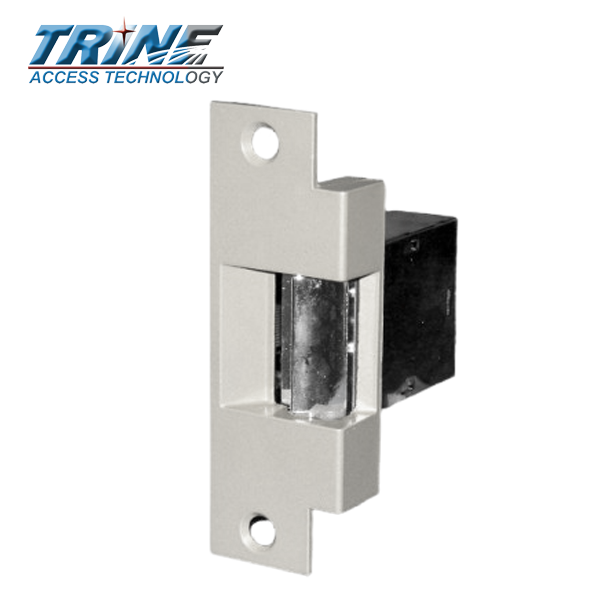

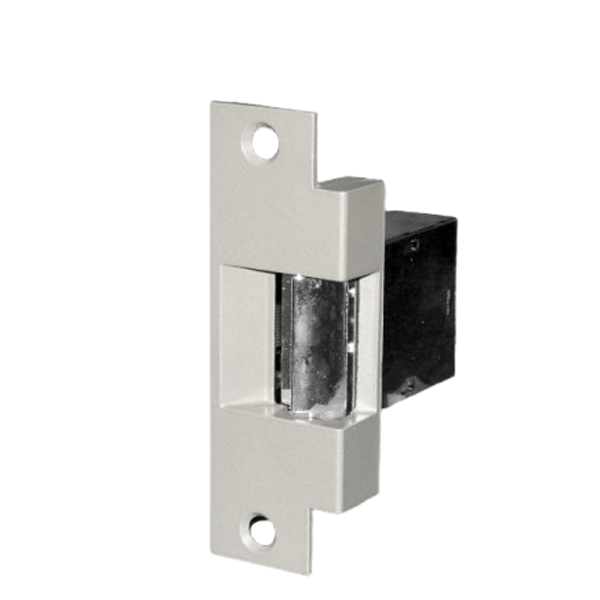

The Trine 007C 4-7/8” Light Commercial Electric Strike is for use in new or replacement installations in wood jambs. Use with locksets having up to 3/4” throw, based on 1/8” door gap.
Face Plate 4-7/8” x 1-1/4” -- Mortise Backset 2-7/8” -- Cavity Depth 5/8” -- Cavity Width 3/4” -- Cavity Height 1-1/2
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Fail Secure-Standard Action (Unlocks with Power)
| Voltage | Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 8-16VAC/4-6VDC | 1.3-2.7 | 1.4 | Intermittent | Buzz | Black |
Downloads:
Dimensions
