Trine - 3012 - 3000 Series - 12 DC - Electric Strike - Fire Rated ANSI - Grade 1
In Stock
SKU:
TRN-3012
NSID:
36556
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $99.83
-
$107.51 - $99.83
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

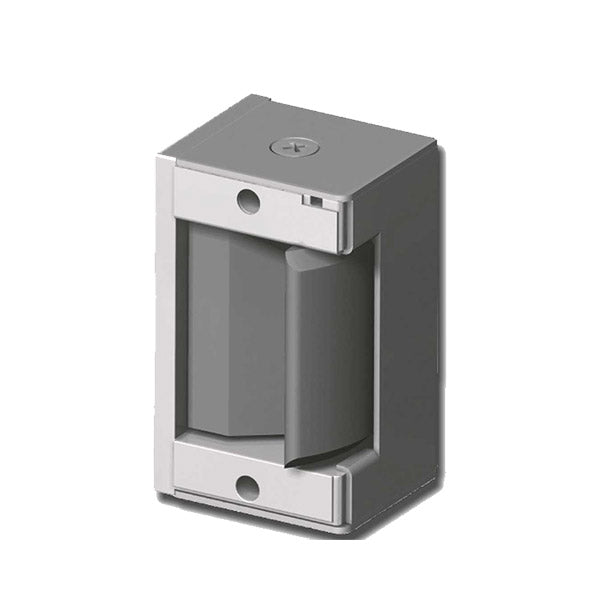

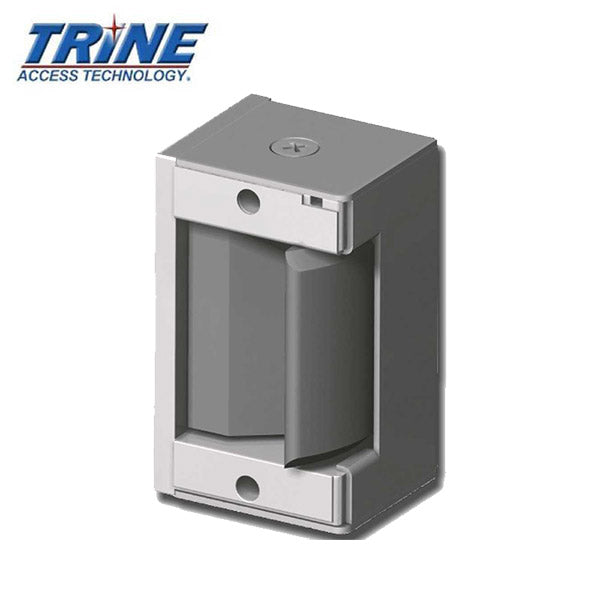

Trine 3000 Series - The Smallest Electric Strike In The World For Cylindrical Locks And Deadlatches
Features:
- GRADE 1
- 500,000 + life cycles
- 1,500 + lbs. holding force (1,200 lbs. for 334)
- Dynamic Force 70 ft/lb.
- Solid stainless steel latch and in the device body.
- Accepts a bolt with a up to 5/8” throw
- Non-handed Unit (except 458, 478 LO/RO)
- Fail secure - standard action (unlocks with power)
- Fail safe - “RS” (locks with power)
- Mechanism spacers increase cavity depth up to 1/8”
- Available in 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC100
| Volts | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.480 | 25.0 | Intm | Silent | Blue |
