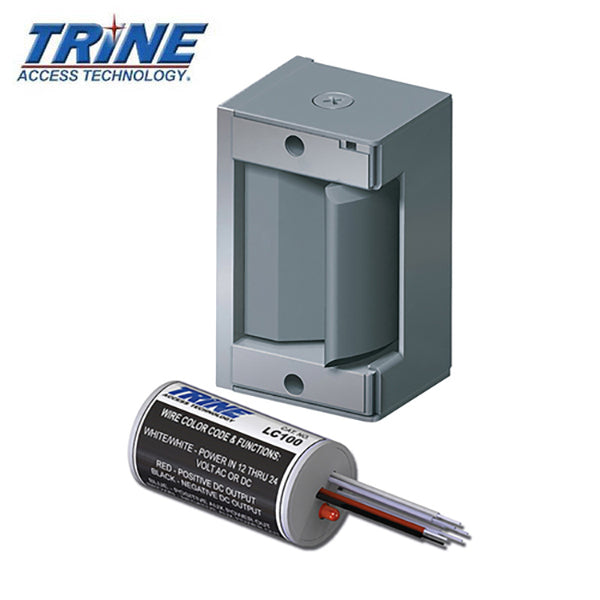

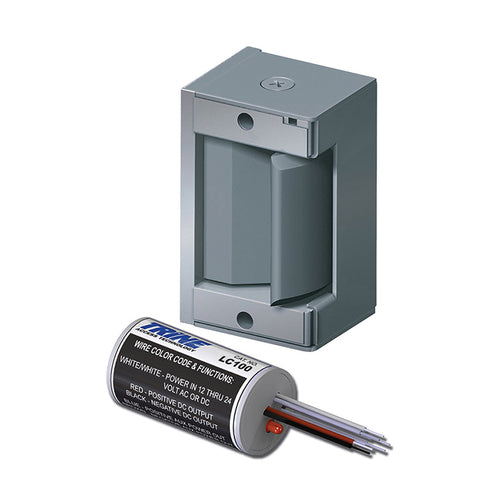

Trine - 30RS - 3000 Series - 11-29 AC/DC - Electric Strike with LC100 External Line Conditioner - Fire Rated ANSI - Grade 1
In Stock
SKU:
TRN-30RS
NSID:
36559
- $124.74
-
$135.40 - $124.74
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
RS - Fail Safe - Locks with power
This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-29 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection.
Features:
- LC100 can be placed up to 15 feet away from the electric strike body.
- When used with the EN Series, 12DC must be selected and the LC100 must be located within 10' of the electric strike.
- Must be used with a 12DC unit & within 15 feet of strike
- Dimensions: H 1-13/16" X D 15/16"
Volts | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
---|---|---|---|---|---|
12DC | 0.743/0.298 | 13 Ω | Intm./Cont. | Silent | Red |
24DC | 0.397/0.170 | 13 Ω | Intm./Cont. | Silent | Red |
12AC | 0.715/0.277 | 13 Ω | Intm./Cont. | Silent | Red |
24AC | 0.378/0.173 | 13 Ω | Intm./Cont. | Silent | Red |
