Trine - 323478FX-LC - Cylindrical & Deadlatch Electric Strike - The ANSI Solution - 1/8" Horizontal Adjustment - Fire Rated ANSI - Grade 1

Trine - 323478FX-LC - Cylindrical & Deadlatch Electric Strike - The ANSI Solution - 1/8" Horizontal Adjustment - Fire Rated ANSI - Grade 1

Available to order
SKU TRN-323478FX-LC-32D NSID 36562
$302.44$362.93On Sale You save $60.49 (17%)
Please Note: This product has a lead time

We made our small, versatile, fit anywhere 323478x kit FIRE RATED. Making it the smallest fire rated electric strike solution that goes where other electric strikes cannot. We've also added the Patented horizontal adjustment feature -- Guaranteed not to move -- to both the small and tall faceplates. This is the "do more" and "cut less" electric strike you've been looking for.

  • 3 Hour Fire Rated
  • GRADE 1
  • 1/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
  • 12-24 AC and DC - Surge and Kickback protection included.
  • All solid stainless construction.

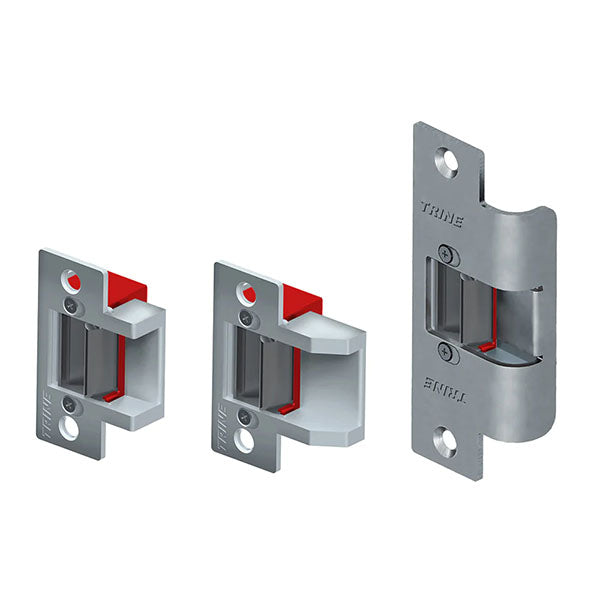

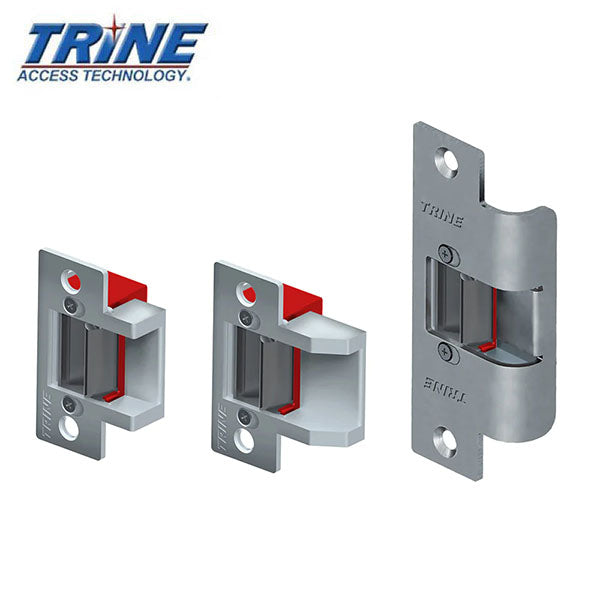

  • Includes:
    • One (1) 234-234X Adjustable Faceplate
    • One (1) 478-32D Faceplate
    • One (1) 30LC Fire Rated Mechanism
    • One (1) 478-CCFP (Competitor Filler Plate)
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

  • This electric strike contains the standard 478 faceplate with a 1-7/8" ramp & 2-3/4" plate adjusts with a ramp extension.
    • Volts Current/Amps Ohms (Ω) Duty Sound Wire Color
    12DC 0.743/0.298 13 Ω Intm./Cont. Silent Red
    24DC 0.397/0.170 13 Ω Intm./Cont. Silent Red
    12AC 0.715/0.277 13 Ω Intm./Cont. Silent Red
    24AC 0.378/0.173 13 Ω Intm./Cont. Silent Red

    Line Conditioner:

    This electric strike utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
