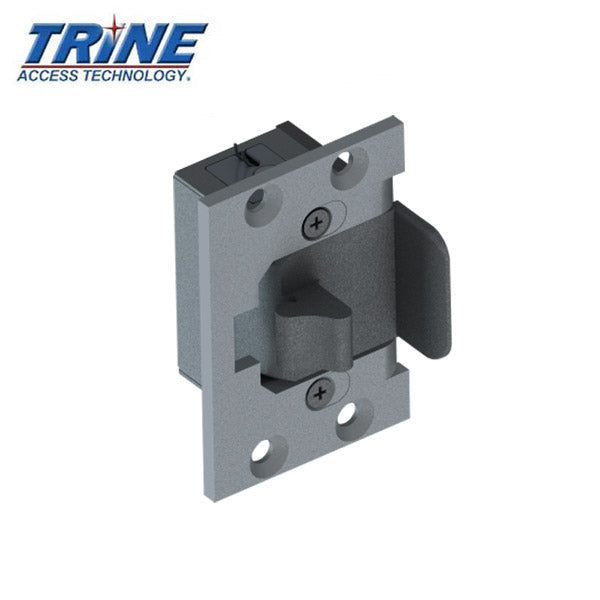

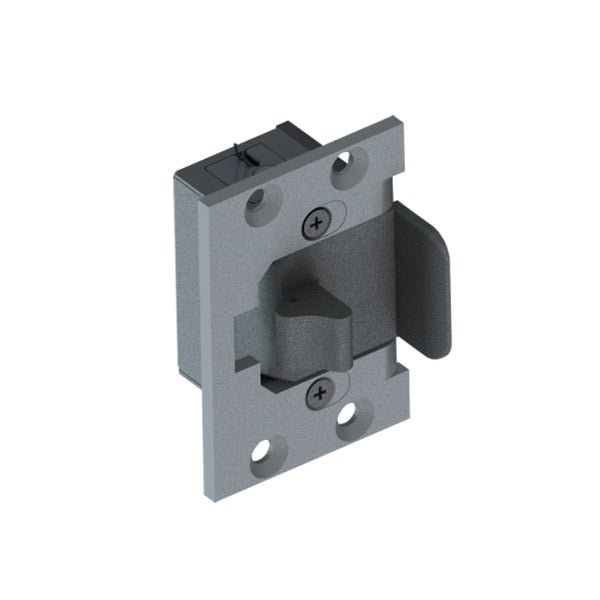

Trine - 3250SOM - 3000 Series - Electric Strike - Strike-O-Matic - Fire Rated ANSI - Grade 1
In Stock
SKU:
TRN-3250SOM-LC-ALDB
NSID:
36572
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $293.03
-
$337.55 - $293.03
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
THE ELECTRIC STRIKE FOR THE DOOR-O-MATIC
The Vertical Rod solution utilizes the reliable 3000 series mechanism to offer the smallest solution on the market for vertical rods.
Features:
- Two faceplates provided in aluminum and dark bronze finish
- GRADE 1 - Heavy Duty
- 500,000 + life cycles
- Horizontal Adjustment
- Solid stainless steel latch and locking mechanism
- LC100 included for surge and kickback protection
- Patented
| Volts | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13 Ω | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13 Ω | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13 Ω | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13 Ω | Intm./Cont. | Silent | Red |
Downloads:
