Trine - 3258458LC - Electric Strike Kit for Deadlatches - The Deadlatch Solution - Fire Rated ANSI - Grade 1
Available to Order
SKU:
TRN-3258458LC-ALUM
NSID:
36560
- $179.12
-
$194.59 - $179.12
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

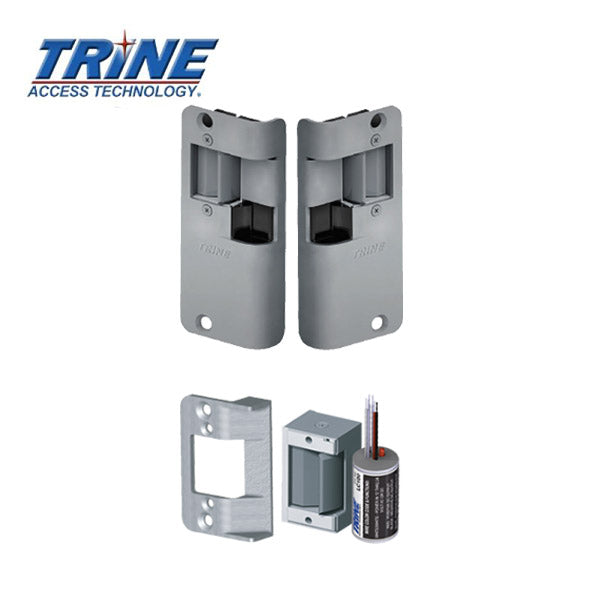

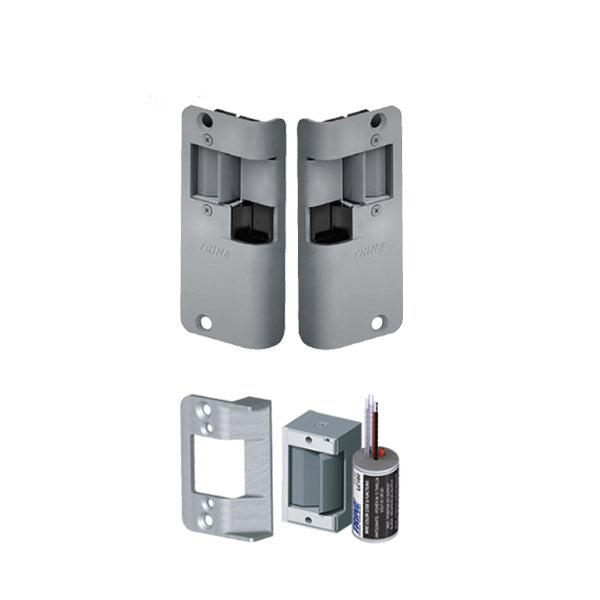

Contains the three (3) most commonly used faceplates for deadlatches like deadlatches along with the smallest electric strike in the world into one kit. The best item to have when working with deadlatches.
- GRADE 1
- 500,000 + life cycles
- 1,500 + lbs. holding force (1,200 lbs. for 334)
- Dynamic Force 70 ft/lb.
- Solid stainless steel latch and in the device body.
- Accepts a bolt with a up to 5/8” throw
- Non-handed Unit (except 458, 478 LO/RO)
- Fail secure - standard action (unlocks with power)
- Fail safe - “RS” (locks with power)
- Mechanism spacers increase cavity depth up to 1/8”
- Available in 12 or 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC100
Includes:
- 258 faceplate
- 458-LH (left hand) faceplate
- 458-RH (right hand) faceplate
- 30LC (mechanism plus lin conditioner)
| Volts | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13 Ω | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13 Ω | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13 Ω | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13 Ω | Intm./Cont. | Silent | Red |
Downloads:
