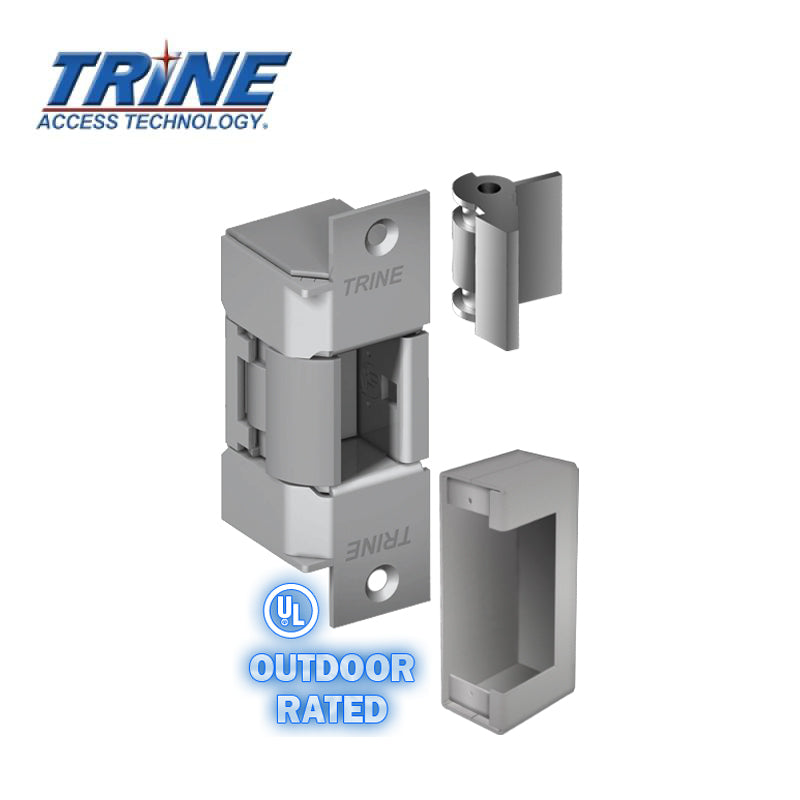

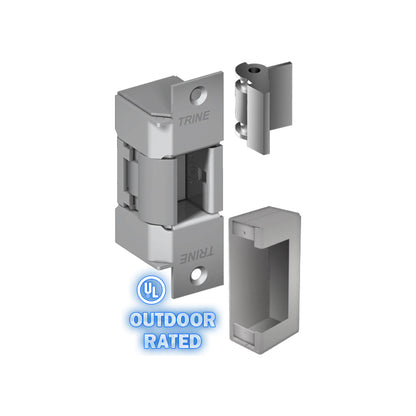

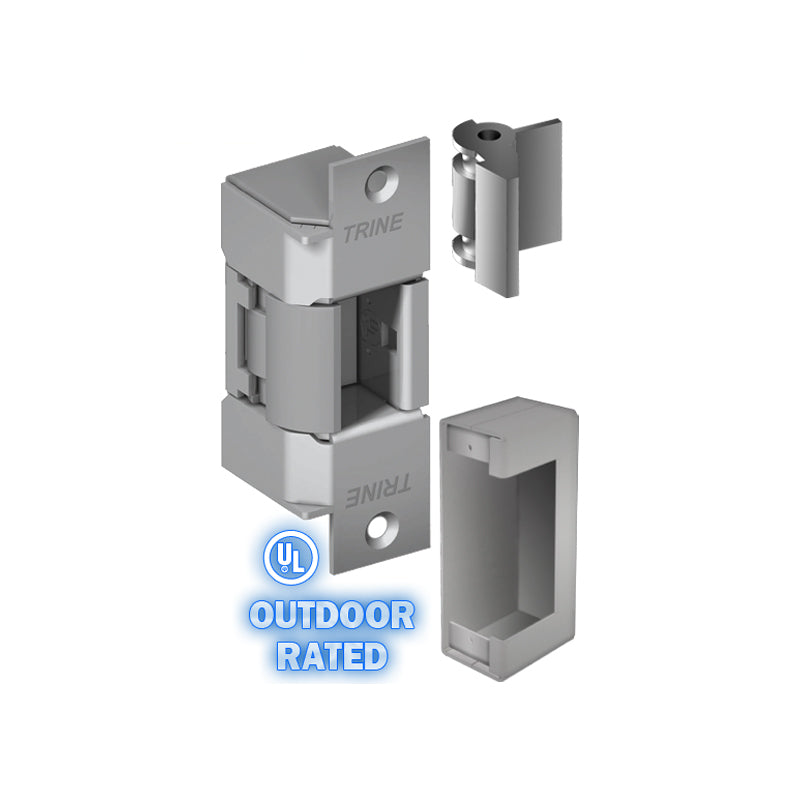

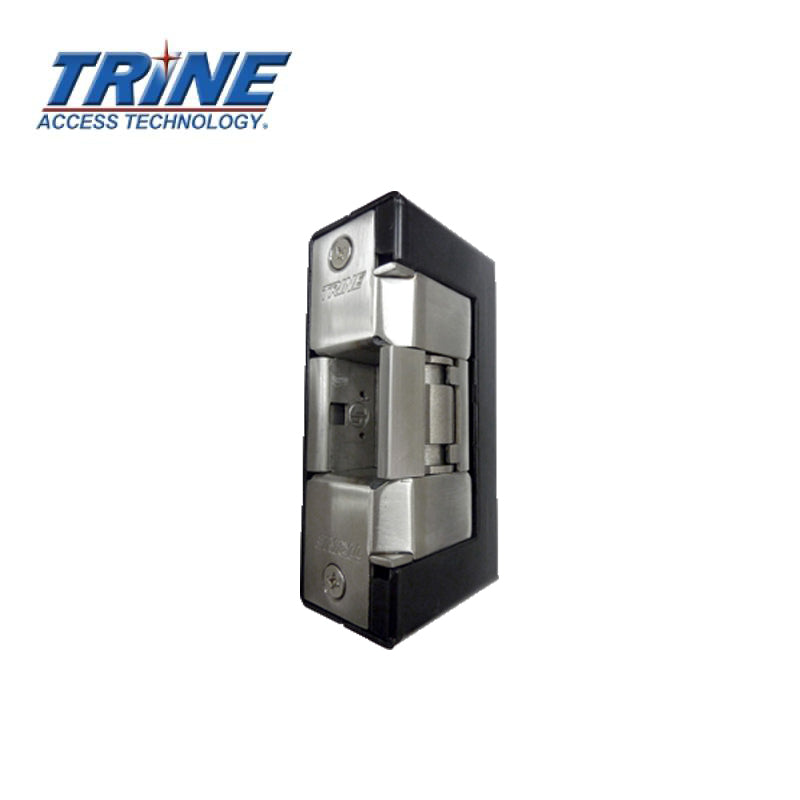

Trine - 400CMRP - ANSI Electric Strike Outdoor Gate Solution - Stainless Steel - Non-Handed - Grade 1
In Stock
SKU:
TRN-400CMRP-32D
NSID:
7189
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $336.52
-
$324.00 - $336.52
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Outdoor gate solution comes with the gatebox. It handles Cylindrical and Mortise Locks, like the 400, and comes with the Latch so it can be used with Rim Panic Exit Devices, like the 400RP.
EN400CMRP Features:
- Perfect for exterior doors and gates. CMRP includes the Gatebox, the RP Latch (for Rim Panics) and is 12 & 24 DC
- Superior Strength — 2,000+ lbs UL® tested.
- Superior Life — Durability of 1,000,000+ life cycles
- Superior Application – Outdoor UL® rating allows the strike to be used anywhere – especially good for gates.
- For a more traditional rim panic strike with the outdoor rating, please see the EN800(3/4″ thick) or the EN850 (1/2″ thick)
- Fail-secure/Fail safe field reversible on DC units.
- Grade 1 Strike — Contains a one-piece locking mechanism with one Solenoid — fewer parts mean fewer problems.
- Left and Right handing is field reversible.
- Your go anywhere strike!
EN400RP Specifications:
- UL® Listed 1034 – Indoor/Outdoor Burglary Resistant
- NYC MEA 79-01-E
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13.0 | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13.0 | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13.0 | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13.0 | Intm./Cont. | Silent | Red |
