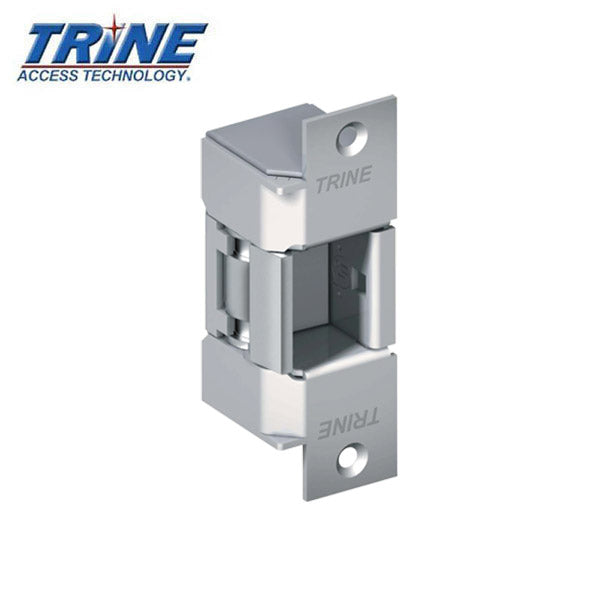

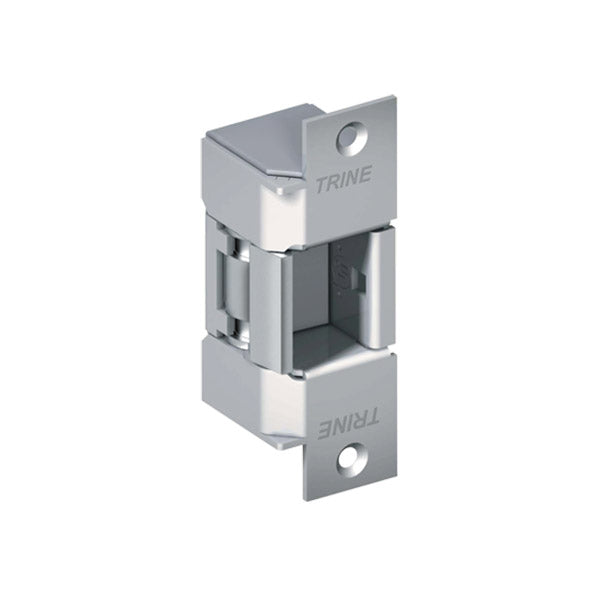

Trine - 400RP - ANSI Electric Strike Outdoor Gate Solution - Stainless Steel - Right Handed - Optional Voltage - Grade 1
Available to Order
SKU:
TRN-400RP-12DC-32D-RH
NSID:
36579
36581
- $287.98
-
$310.26 - $287.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TRN-400RP
For new or replacement installations in wood or metal gates. Use with rim panic exit devices, especially in gates, with up to 1” throw, based on 1/8” door (gate) gap.
EN400RP Features:
- Perfect for exterior doors and gates. Use the EN400RP with Item # EN400-GATEBOX and securely mount the strike anywhere on the frame.
- Superior Strength -- 2,000+ lbs UL® tested.
- Superior Life -- Durability of 1,000,000+ life cycles
- Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
- For a more traditional rim panic strike with the outdoor rating, please see the EN800 (3/4" thick) or the EN850 (1/2" thick)
- Fail secure/Fail safe field reversible on DC units.
- Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Right handing is field reversible.
- Your go anywhere electric strike for gates!
EN400RP Specifications:
- UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
- UL294 (6th Edition) listed
- NYC MEA 79-01-E
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13.0 | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13.0 | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13.0 | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13.0 | Intm./Cont. | Silent | Red |
