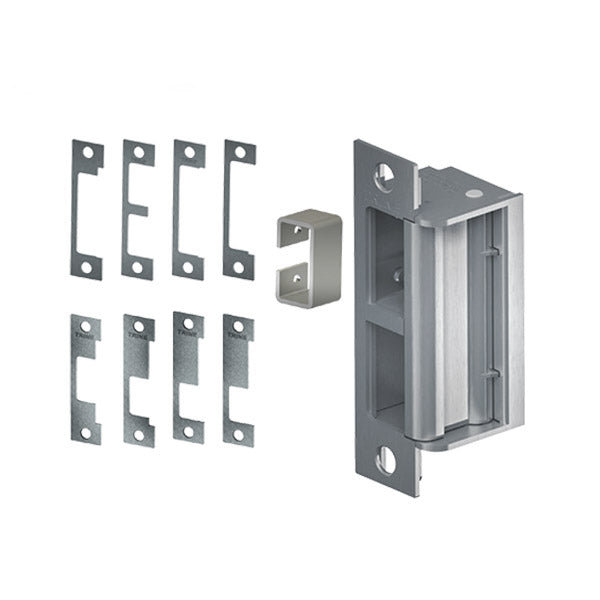

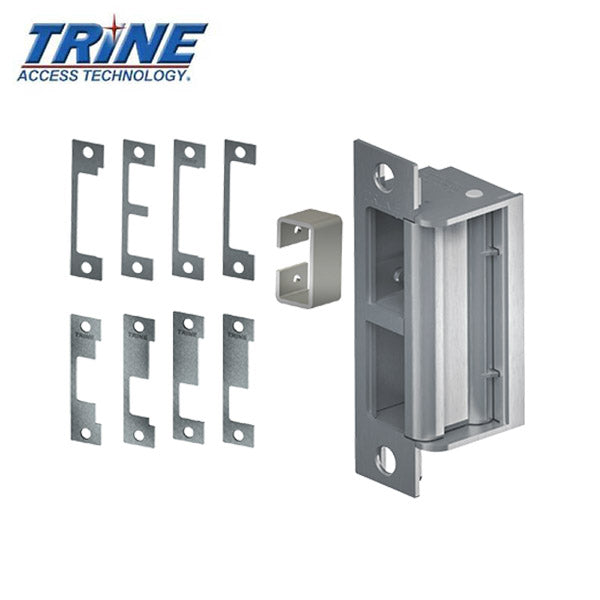

Trine - 4100CDBM - 4-7/8” Electric Strike - One Box Solution - 8 Faceplates - Fire Rated ANSI - Satin Stainless steel - Grade 1 - UHS Hardware
Trine - 4100CDBM - 4-7/8” Electric Strike - One Box Solution - 8 Faceplates - Fire Rated ANSI - Satin Stainless steel - Grade 1 - UHS Hardware

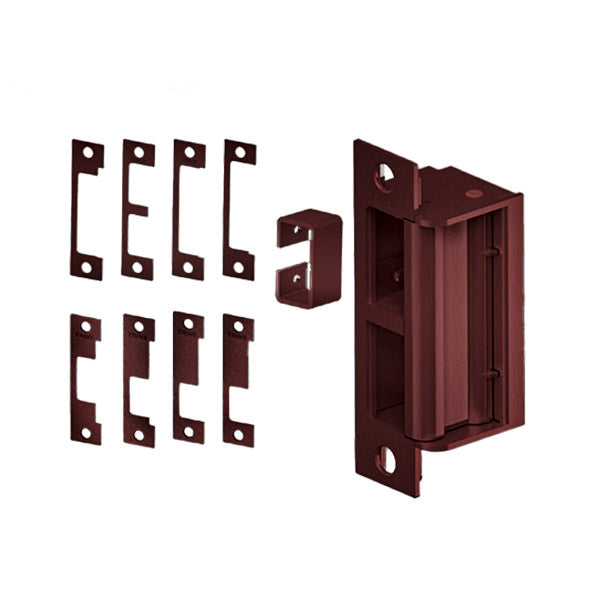

Trine - 4100CDBM - 4-7/8” Electric Strike - One Box Solution - 8 Faceplates - Fire Rated ANSI - Optional Finish - Grade 1 - UHS Hardware

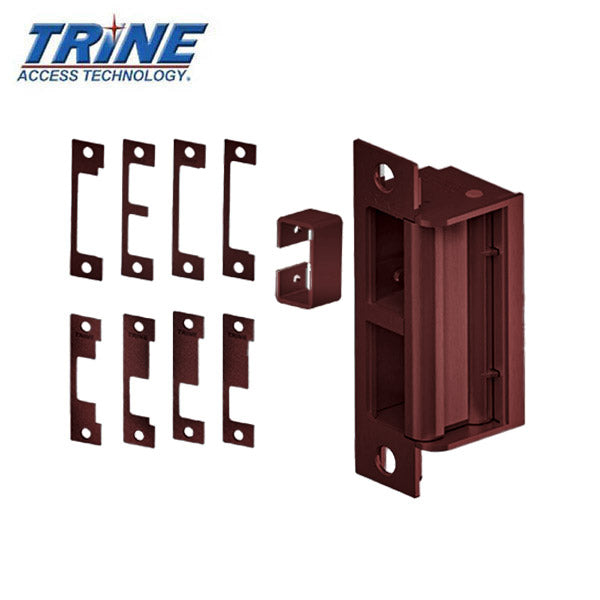

Trine - 4100CDBM - 4-7/8” Electric Strike - One Box Solution - 8 Faceplates - Fire Rated ANSI - Optional Finish - Grade 1 - UHS Hardware

Trine - 4100CDBM - 4-7/8” Electric Strike - One Box Solution - 8 Faceplates - Fire Rated ANSI - Optional Finish - Grade 1

Available to Order
SKU: TRN-4100CDBM-32D
NSID: 36554 36555

Please Note: This product has a lead time

$384.64
$480.80
$384.64
Finish: Satin Stainless Steel

TRN-4100CDBM

The Everything Strike - Works with almost all Cylindrical and Mortise locks on the market.

Covers 99%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accommodate for door sag. We include the 8 most used faceplates to make specifying and installing easy

  • Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
  • Eight popular faceplates included -- including the 8 most used faceplates in the box makes specifying and installing easy Covers 99%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accommodate for door sag.
  • 1 - 3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
  • Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
  • Patented # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Faceplates Included:

  • CC: Centered Cylindrical (Reference HES® J faceplate) Cylindrical Locksets up to 3/4" throw and all locksets center lined bolts: Corbin Russwin® Security Bolt, Weiserbolt ®.
  • MHO: Mortise High Offset (Reference HES® KM faceplate) Accurate®, Arrow®, Best ®, Corbin Russwin®, Falcon® (1992M Series), Sargent ® (7800, 8200 & 9200 Series), Yale® (8800).
  • MMO: Mortise Medium Offset (Reference HES® K faceplate) Baldwin®, Marks®, PDQ®.
  • MLO: Mortise Low Offset (Reference HES® KD faceplate) Jackson®, Sargent® (7700 & 8100), Schlage® (L Series), Yale® (8700).
  • CCRD - 4-7/8” x 1-1/4“ Centered Cavity with Radiused Corners
  • CRD7 - 6-7/8” x 1-1/4“ Tall Centered Cavity with Radiused Corners
  • CRD8 - 7-15/16” x 1-7/16“ Tall Centered Cavity with Radiused Corners
  • CRD9 - 9” x 1-1/4“ Tall Centered Cavity



Volts Current Ohms (Ω) Duty Sound Wire Color
12DC 0.240 A 50 Ω Intm./Cont. Silent Blue/Red
24DC 0.114 A 210 Ω Intm./Cont. Silent Brown/Red
12AC 0.210 A 50 Ω Intm. Buzz Blue/Red
16AC 0.280 A 50 Ω Intm. Buzz Blue/Red
24AC 0.420 A 50 Ω Intm. Buzz Blue/Red



Downloads:
Instructions
Dimensions
Specs Sheet
