Trine - 4100DB - 4-7/8” Electric Strike - W/ Deadbolt - One Box Solution - Night Latch Function - Fire Rated ANSI - Optional finish - Grade 1
In Stock
SKU:
TRN-4100DB-32D
NSID:
36552
36553
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $354.69
-
$443.36 - $354.69
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TRN-4100DB
Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accommodate for door sag. We include the 4 most used faceplates to make specifying and installing easy
- Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
- Four popular faceplates included -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accommodate for door sag.
- 1 - 3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
- Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
- The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
- Deadbolt included
- Patented # US20110241361
- Cutout Specification A115.1 (with Slight Jamb Modification)

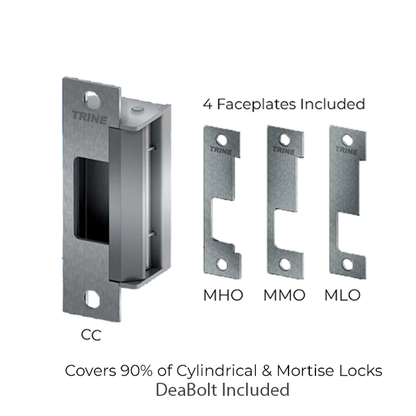

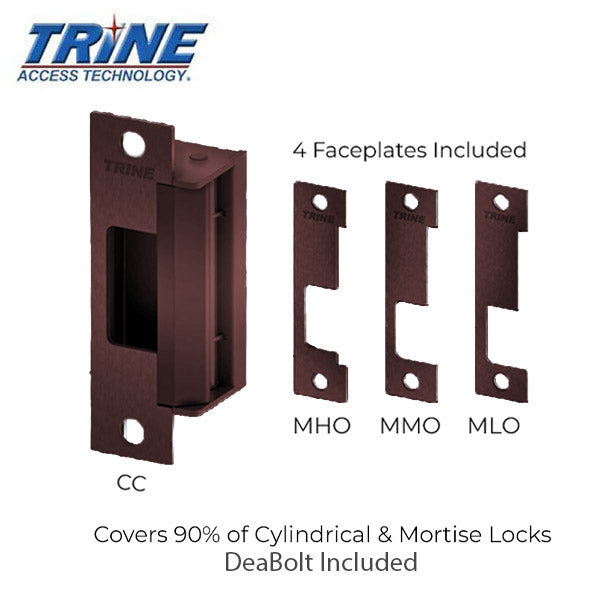

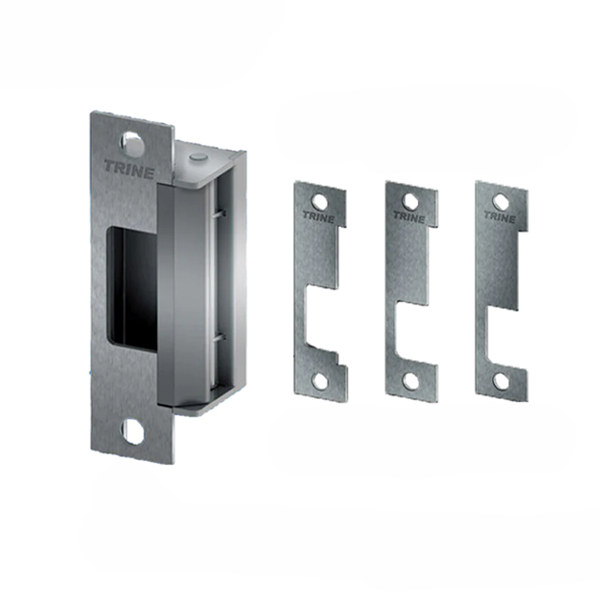

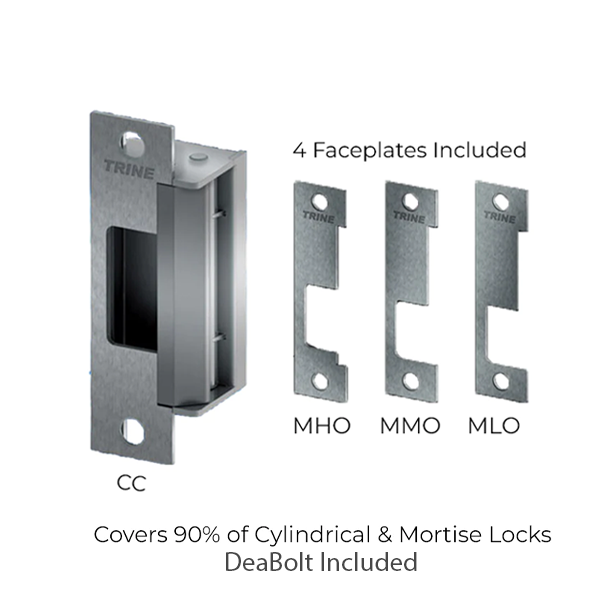

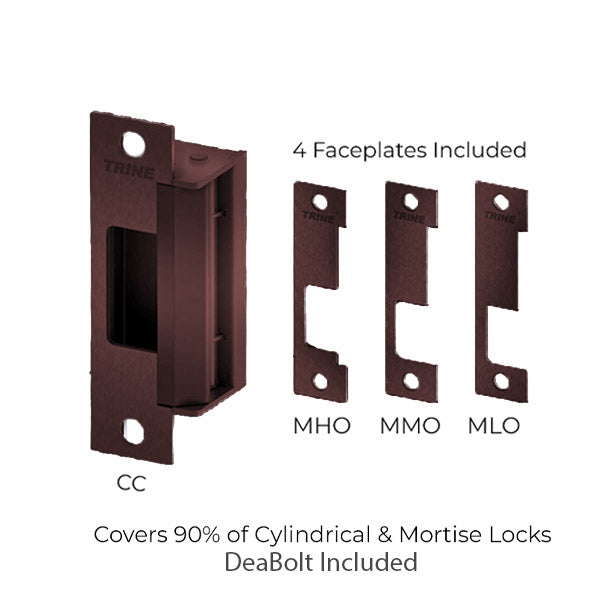

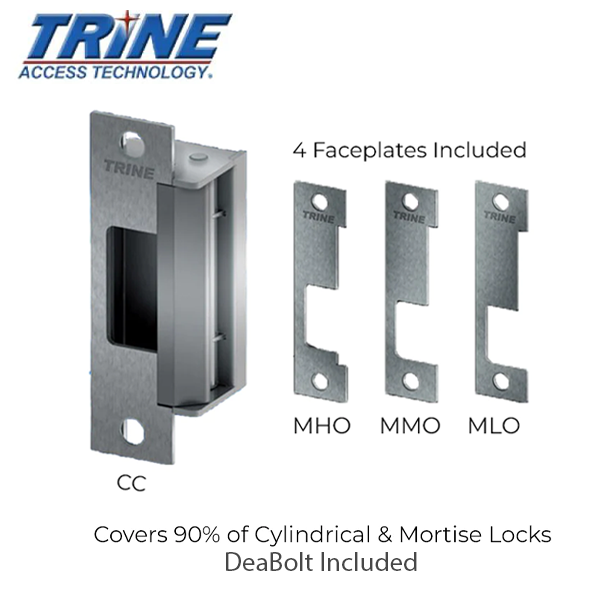

Faceplates Included:
- CC: Centered Cylindrical (Reference HES® J faceplate) Cylindrical Locksets up to 3/4" throw and all locksets center lined bolts: Corbin Russwin® Security Bolt, Weiserbolt ®.
- MHO: Mortise High Offset (Reference HES® KM faceplate) Accurate®, Arrow®, Best ®, Corbin Russwin®, Falcon® (1992M Series), Sargent ® (7800, 8200 & 9200 Series), Yale® (8800).
- MMO: Mortise Medium Offset (Reference HES® K faceplate) Baldwin®, Marks®, PDQ®.
- MLO: Mortise Low Offset (Reference HES® KD faceplate) Jackson®, Sargent® (7700 & 8100), Schlage® (L Series), Yale® (8700).
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.240 A | 50 Ω | Intm./Cont. | Silent | Blue/Red |
| 24DC | 0.114 A | 210 Ω | Intm./Cont. | Silent | Brown/Red |
| 12AC | 0.210 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 16AC | 0.280 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 24AC | 0.420 A | 50 Ω | Intm. | Buzz | Blue/Red |
