Trine - 4200 - 2-3/16" Electric Strike - One Box Solution - Stainless Steel - Grade 1

In Stock
SKU: TRN-4200-32D
NSID: 7193

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$138.00
$165.60
$138.00

The most flexible electric strike solution for cylindrical locks and dead latches. Includes the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.

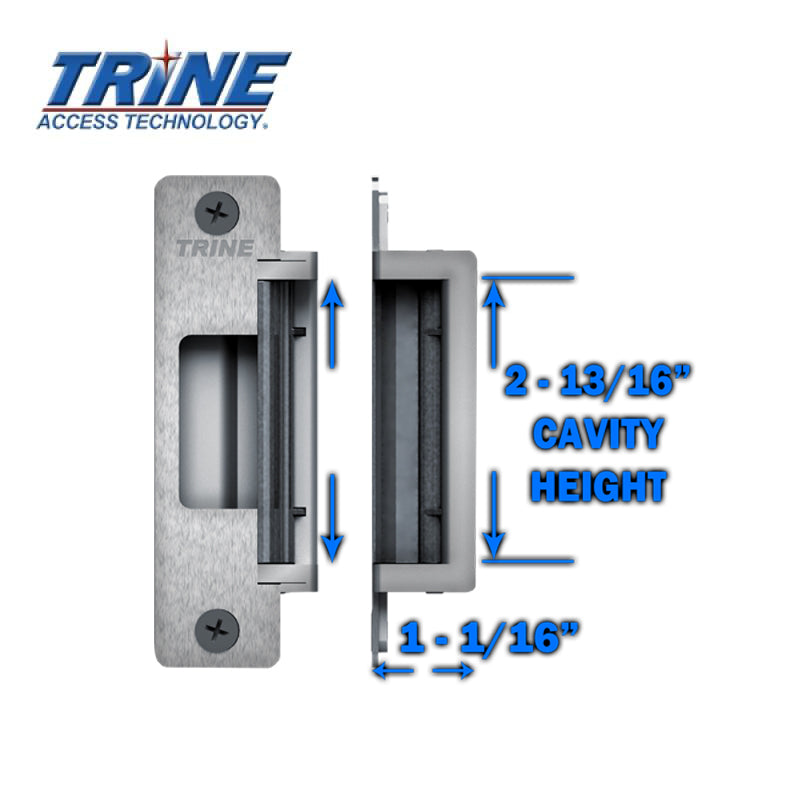

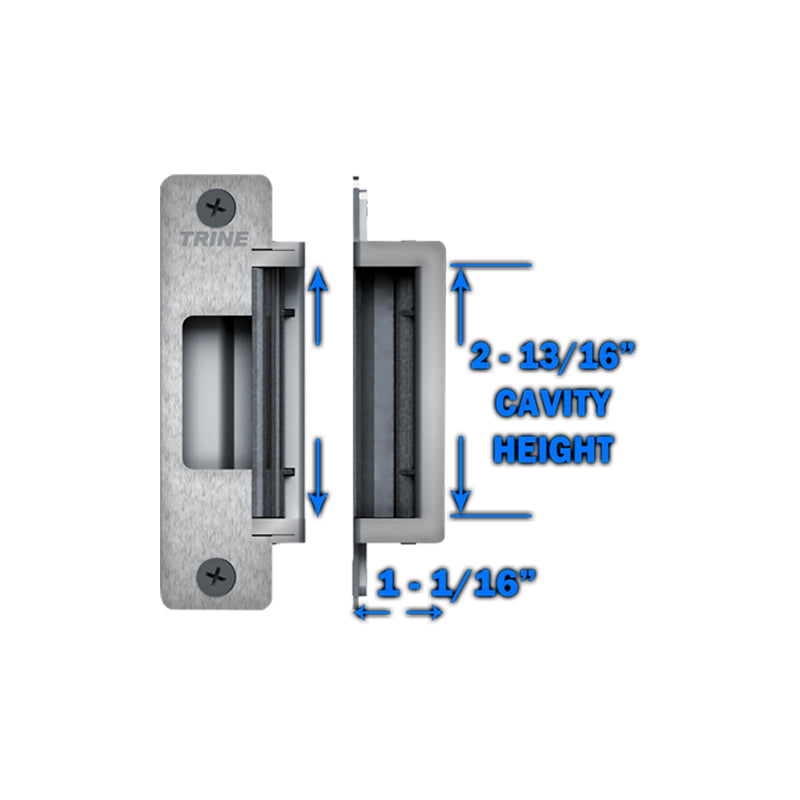

  • Tall Latch Cavity -- 2-3/16 tall electric strike latch area is a solution for door sag and other alignment problems.

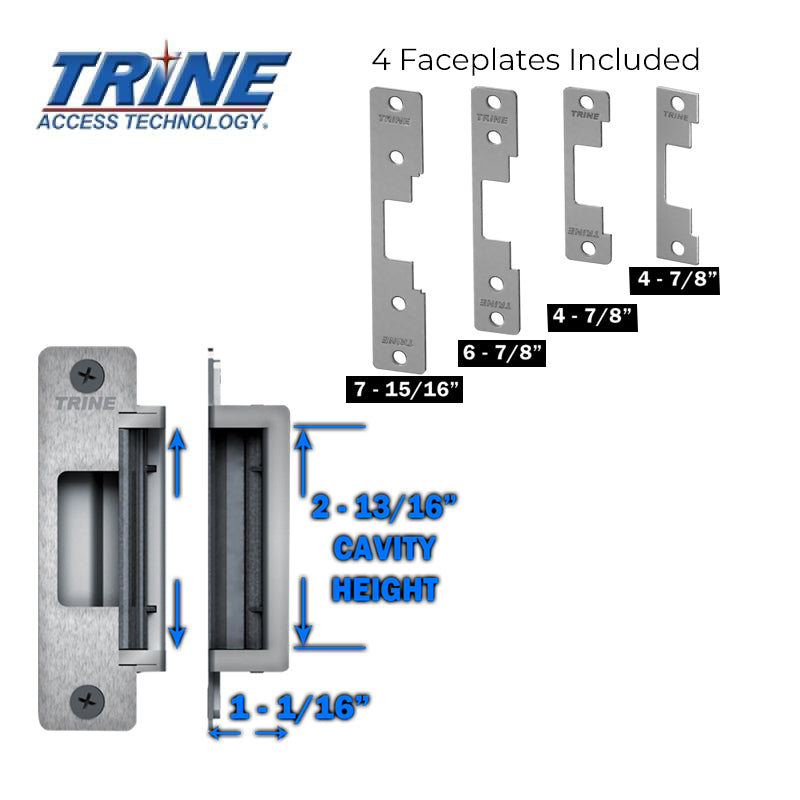

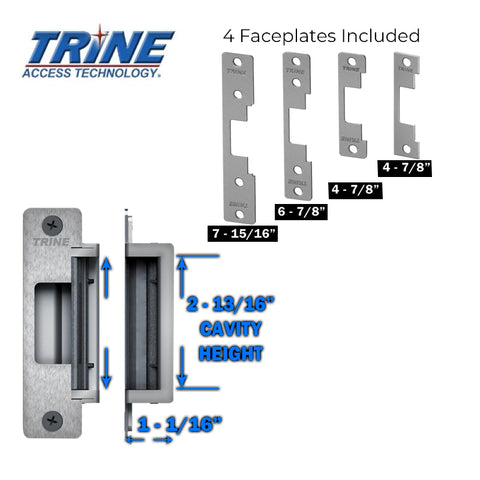

  • Four popular faceplates included -- including the 4 most used faceplates for cylindrical lcoks and deadlatches
  • 1 - 1/16” Shallow backset -- the electric strike solves depth problems, as with glass store fronts.
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
  • The 4200 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
  • Cutout Specification A115.1 (with Slight Jamb Modification)
Call 1-800-878-6604 for Bulk / Dealer Pricing!


Volts Current Ohms (Ω) Duty Sound Wire Color
12DC 0.240 A 50 Ω Intm./Cont. Silent Blue/Red
24DC 0.114 A 210 Ω Intm./Cont. Silent Brown/Red
12AC 0.210 A 50 Ω Intm. Buzz Blue/Red
16AC 0.280 A 50 Ω Intm. Buzz Blue/Red
24AC 0.420 A 50 Ω Intm. Buzz Blue/Red
