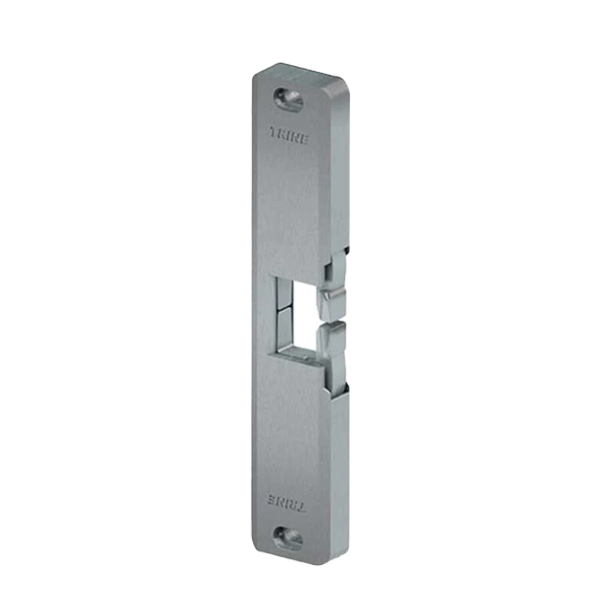

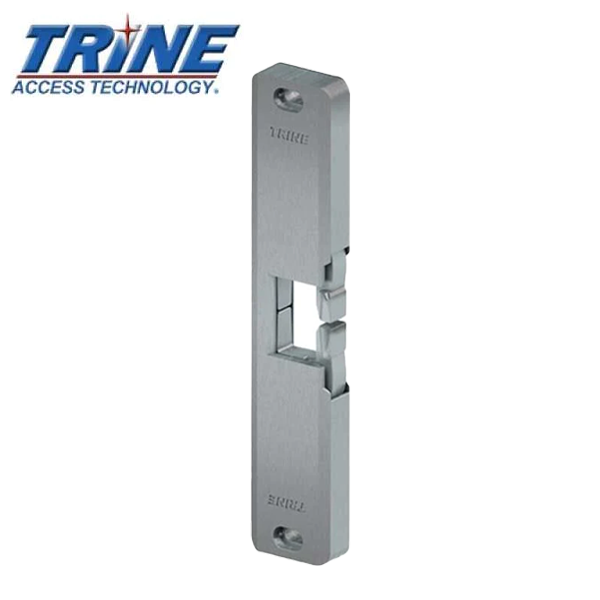

Trine - 4800F - 3/4″ Electric Strike - Fire Rated ANSI - Satin Stainless Steel - W/ Latchbolt Monitoring - Grade 1
In Stock
SKU:
TRN-4800FLB-32D
NSID:
36548
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $406.96
-
$423.90 - $406.96
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Trine 4800LBF-32D 3 Hour fire rated electric strike series are used with surface mounted rim exit devices with up to 3/4" throw or greater and for use in new or replacement installations in wood or metal single door frames. The 4800F Series product has been designed to install easily, perform reliably, and provide years of trouble free security.
Features:
- Satin Stainless Steel finish
- Strike opening: 1-1/8" W x 1-1/2" H
- 1/8" Spacer Included
- Strike body: 1-3/4" W x 9" H x 3/4" D
- Input voltage: 11 thru 28 AC and DC voltage input
- 3000+ lbs holding force
- LB option: Latchbolt monitoring
- IR optical sensor
- Stainless steel construction
- Comes with Trines patented 4-pin anchoring system
- The 4800F Trine series are certified to BHMA Grade 1
- Contains a one piece locking mechanism with one Solenoid
- No cutting or worrying about voltage
- For use with surface mounted rim exit devices
- Class A, 3 Hour Single door/frame configuration
- Fail-safe/Fail-Secure - field selectable (like all electric strikes, it is not fire rated in fail safe mode)
- 2 years limited manufacturer's warranty
4800F Standards
- Class A, 3 Hour Single door/frame configuration
- – UL10C, Fire Tests of Door Assemblies
- – UBC 7-2, Uniform Building Code
- – CAN4 S104, Standard Method for Fire Tests of Door Assemblies NFPA 252
- Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
- NOTE: WH fire listing is void when using fail-safe action.
- BHMA Grade 1 Electric Strike — 1,500,000+ Life cycles — 3,000+ lbs. Holding Force
| Voltage | Pull In/Holding Current/Amps |
Duty | Sound |
|---|---|---|---|
| 12DC | 0.566/0.217 | Intm./Cont. | Silent |
| 24DC | 0.253/0.099 | Intm./Cont. | Silent |
| 12AC | 0.509/0.181 | Intm./Cont. | Silent |
| 16AC | 0.405/0.149 | Intm./Cont. | Silent |
| 24AC | 0.215/0.087 | Intm./Cont. | Silent |
Downloadable content:
Note: WH fire listing is void when using fail-safe action.
