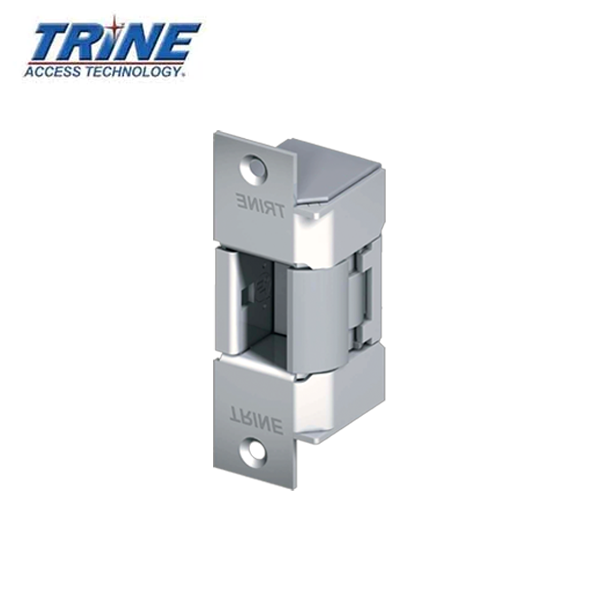

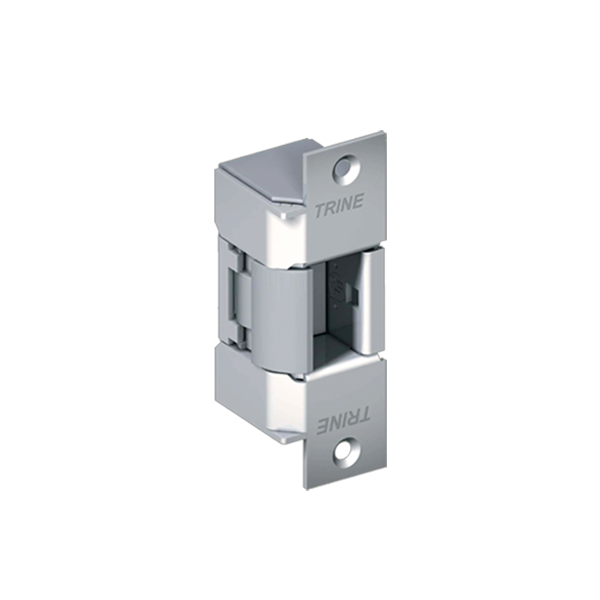

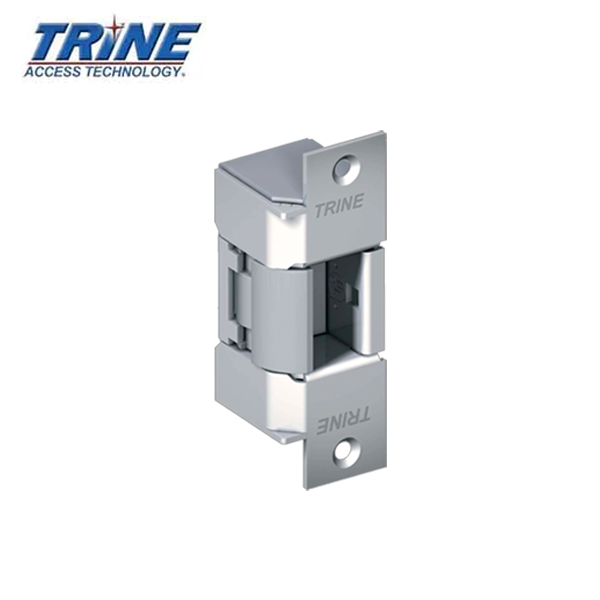

Trine - EN400 - Heavy Duty - ANSI Electric Strike Outdoor Gate Solution - Stainless Steel - Optional Handing - Optional VDC - Grade 1
In Stock
SKU:
TRN-EN400-12DC-32D-LH
NSID:
37761
37760
37763
37762
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $287.16
-
$324.00 - $287.16
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TRN-EN400-XX-32D-XX
The Trine EN400 is used for new or replacement installations in wood or metal jambs. Use with cylindrical locksets, mortise locks without dead bolts, and mortise exit devices with up to 7/8” throw.
EN400 Features:
- Superior Strength -- Heavy duty 2,000+ lbs UL® tested.
- Superior Life -- Durability of 1,000,000+ life cycles
- Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
- Fail secure/Fail safe field reversible on DC units.
- Grade 1 Electric Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Left and Right handing is field reversible.
- Great for all high humidity environments like at marinas and pools. The go anywhere strike!
EN400 Specifications:
- UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
- UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
- UL294 (6th Edition) listed
- NYC MEA 79-01-E
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire |
|---|---|---|---|---|---|
| 12AC | 0.700 | 4.5 | Intm. | Buzz | 1-Blue, 1-Orange/White |
| 24AC | 0.370 | 18.0 | Intm. | Buzz | 1-Blue, 1-Black/White |
| 12DC | 0.280 | 43.0 | Intm./Cont. | Silent | 2-Orange/White |
| 24DC | 0.150 | 164.0 | Intm./Cont. | Silent | 2-Black/White |
