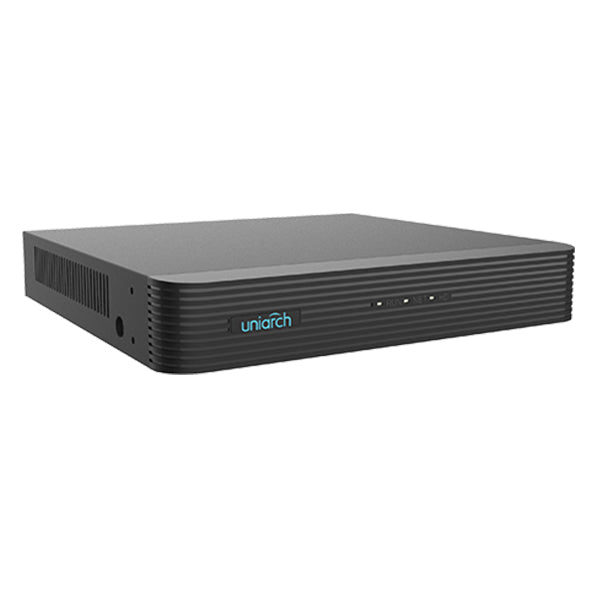

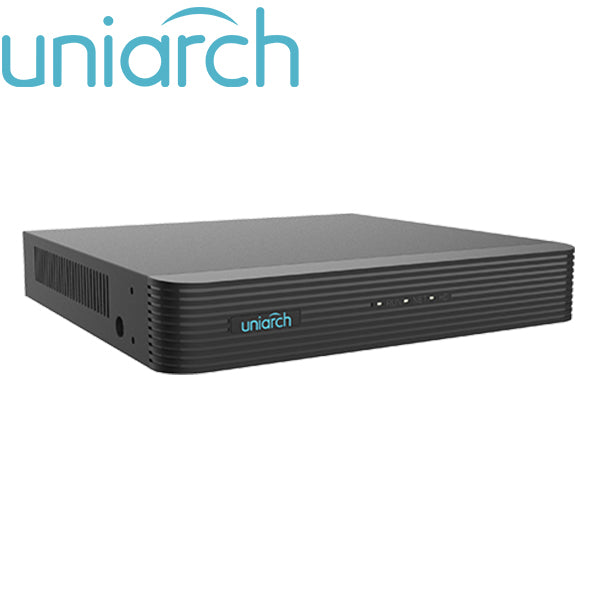

Uniarch / UNV / 8-Channel / 8MP / 1080P / XVR / 1 SATA / HDD up to 6 TB / XVR-108G2
In Stock
SKU:
UNV-XVR-108G2
NSID:
44127
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $119.25
-
$328.80 - $119.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Support H.265/H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Video/Audio Input | |
| IP Video Input | 4-ch(only IP up to 8ch), each channel up to 4MP |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 40Mbps (up to 48Mbps after all analog camera conversion) |
| Outgoing Bandwidth | 60Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 5MP Lite/4MP Lite /1080P/720P/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Serial Interface | 1 x RS485 |
| General | |
| Power Supply |
12V DC Power Consumption: ≤ 8 W( without HDD ) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 243mm× 46mm (10.2" × 9.6"×1.8") |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
Downloads
Data Sheet
Quick Start Guide
User Manual
