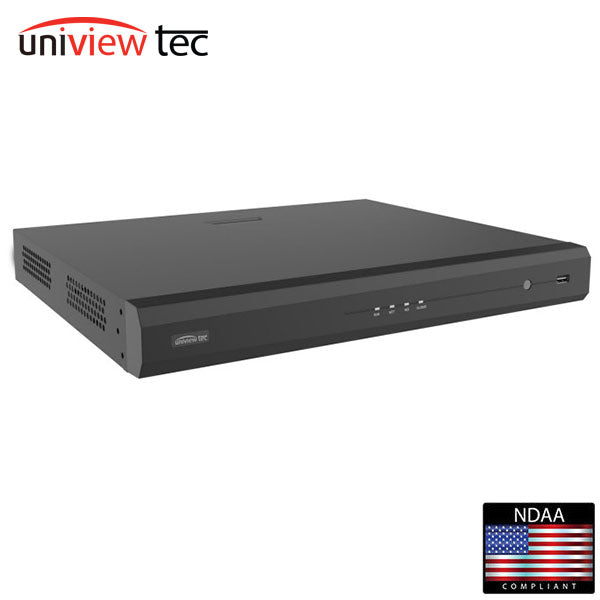

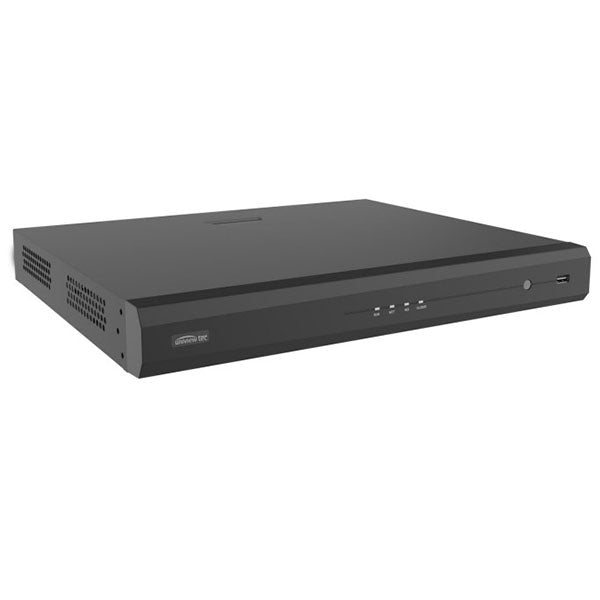

Discontinued Uniview Tec / UVT / 8ch / 8 PoE / 4K Resolution / H.265 NVR - Optional HDD

Discontinued

SKU UNT-HNRX08-2T NSID 68305

$318.00

Hard Drive 2TB 8TB 16TB

Key Features

8 analog x 8 IP Cameras, Hybrid network recorder with H.265 Compression
Simultaneously supports 8 Analog (AHD, TVI, CVI and CVBS) and 8 IP Video Inputs with adaptive access (or up to 16 IP channels if no analog cameras are connected)
Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
Supports recording of up to 8MP (4K), 3840 x 2160 Resolution Images
Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
HDMI display resolution up to 8MP - 3840 x 2160
Supports Audio I/O and PTZ Camera control
Easy Plug and Play Functionality with Automatic Device Discovery and Display
Supports 2 SATA HDD up to 10TB each for 20TB total
ONVIF Profile S Compliant for IP Cameras
Long transmission distance over RG-6 coax cable up to 2000ft (600m)
Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Details

Video
IP Camera Inputs	8 channels
Video Formats	H.265, H.264
Recording Video Resolution	AHD - 8MP; TVI - 8MP; CVI - 8MP; CVBS - 960H (720TVL); IP - 8MP
Playback Video Capability (fps)	1 x 8MP @ 30; 1 x 6MP @ 30; 1 x 5MP @ 30; 2 x 4MP @ 30; 2 x 3MP @ 30; 3 x 3MP @ 25; 4 x 1080p @ 30; 8 x 720P @ 30
Monitor Output	1 x HDMI, 2160p; 1 x VGA, 1080p; 1 x CVBS
Synchronous Playback	8 channels
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Bandwidth	Incoming – 56Mbps; Outgoing – 64Mbp
Remote Users	128
General
Network Interface	1 x RJ45, 10M/100M/1000M, self-adaptive Ether.
USB Interface	Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0
Serial Interface	1 x RS485, Terminal Strip
PoE Interface	16 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 240W total
Audio Interface	1ch / 1ch, RCA
Hard Disk	2 SATA, up to 10TB each
Power	12VDC; 8W Consumption (w/o HDD)
Operating Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing)
Rack Mountable	Yes; see Accessories
Dimensions (WxDxH)	380 × 315 × 53mm (14.9 × 12.4 × 2.1")
Weight (w/o HDD)	1.9 Kg ( 4.19lb )
RG-6 Coax Cable Transmission	Up to 1200ft w/ TVI, CVI; up to 2000ft w/ AHD
Conformity Certifications	FCC, CE (UL – Power Supply only)
