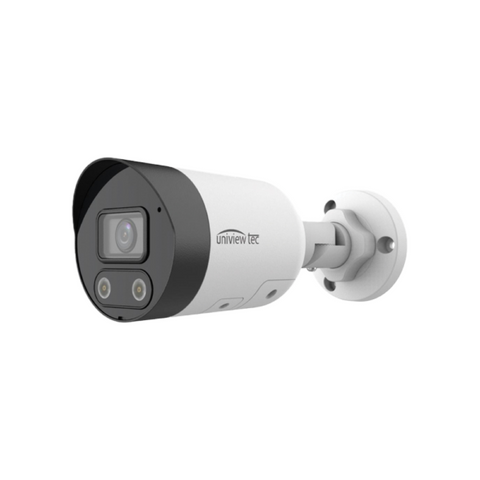

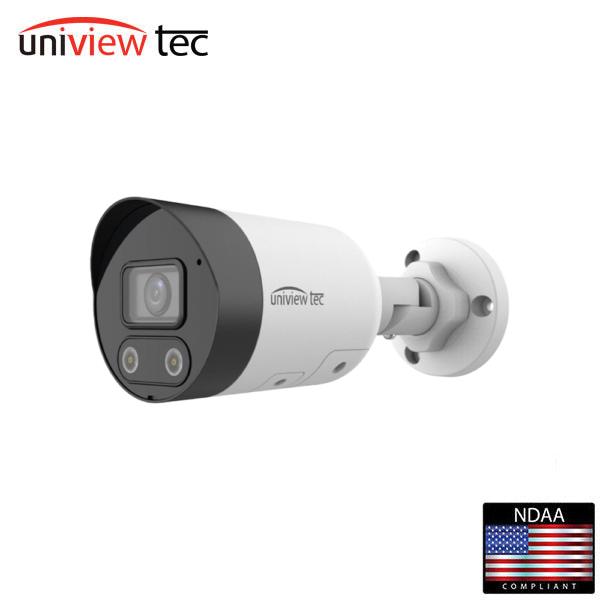

Uniview Tec / UVT / IPB4K28AIX / Bullet Camera / IP / 8MP / 2.8mm Fixed Lens / AI / True Day-Night / WDR / 20m IR
- $219.00
-
$262.80 - $219.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) Guidelines Exceptional Video Quality with 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet2.8mm fixed lens; Triple Video Streams; ONVIF Profile S CompliantTRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)Two-way Audio w/ Built-In Speaker / Microphone; Built-in Micro-SD Card Slot enables local storage up to 256GBIntelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehiclesSupports Sound & Light Alarm Alerts when Smart Intrusion is DetectedPoE & 12VDC Power Options, IP67 Weather Resistant Housing, Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 8 megapixel, CMOS |
| Lens | 2.8mm @ F2.0 |
| Angle of View (H x V) | 112.4° x 60.1° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 30m (98 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 8MP (3840 ×2160) @ 20 fps Sub: 1080P (1920 x 1080): @ 30 fps Third Stream: D1 (720 × 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog Flip, De-Warping, Alarm Light |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS ,RTMP, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 10.5W |
| Dimensions (L x W x H) & Weight | 191 × 75 × 74mm (7.5 × 3 × 2.9”); 0.41kg (0.9lb) |
| Audio | 1 / 1, w/ built-in Mic & Speaker; G.711 |
| Adjustment Range | Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0°~360° |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
