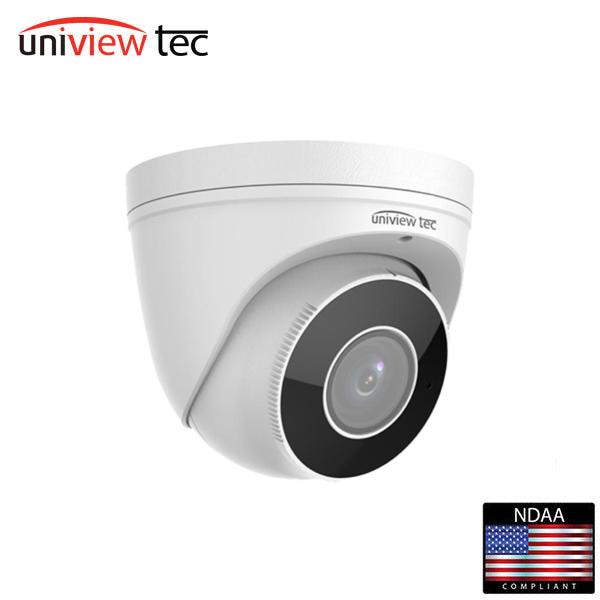

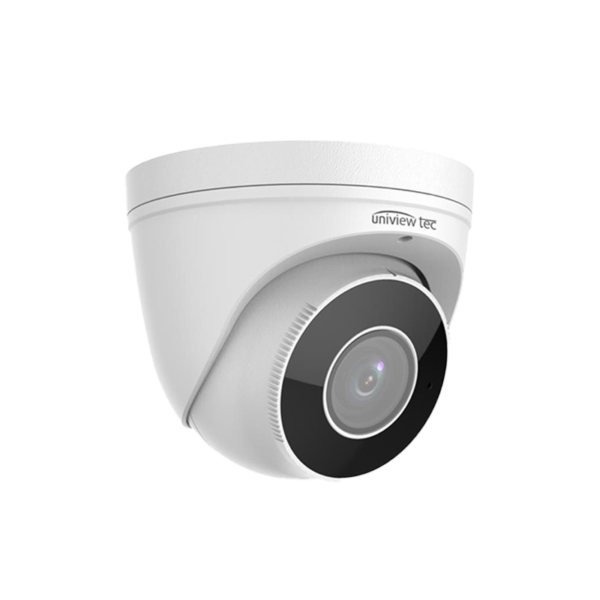

Uniview Tec / UVT / IPT4E212MX / Eyeball Camera / IP / 4MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / 40m IR

Available to Order
SKU: UNT-IPT4E212MX
NSID: 70622

Please Note: This product has a lead time

$219.00
$262.80
$219.00

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 131 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsCorridor Mode, One-way Audio w/ built-in microphone, Backlight Compensation and 3D DNR (Digital Noise Reduction)Dual Video Streams; ONVIF Profile S CompliantIntrusion Detection AnalyticsPoE & 12VDC Power Options and Optional Wall and Pendant Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GB3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices



Call 1-800-878-6604 for Bulk / Dealer Pricing!
Camera
Sensor 1/3", progressive scan , 4 megapixel, CMOS
Lens 2.8~12mm,varifocal automatic focusing and motorized zoom lens
Angle of View (H x V) 102.79°~ 30.86°x 54.50°~ 17.49° (wide ~ tele)
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Color: 0.003Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range Up to 40m (131ft) IR range
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 4MP (2688x 1520)@ 25fps; or (2560 x
1440) @25fps; or 3MP (2304 x 1296) @ 30fps
Sub: 720P(1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog, Flip Supported
OSD, Privacy, Motion & ROI Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
Compatible Integration ONVIF (Profiles S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
Intrusion Detection Analytics Cross Line, Intrusion, Motion & Tampering Detection
Local Storage Micro-SD, up to 256GB
Network Storage Automatic Network Replenishment (ANR)
General
Power 12VDC+/-25%, PoE (IEEE802.3 af); Max 8W
Dimensions (Ø x H) & Weight ?129x 110mm (Ø5.1x 4.3”); 0.67kg (1.48lb)
Audio I/O & Compression 1 / 0, with built-in microphone; G711
Operating Temperature &
Humidity
-30°C ~ +60°C (-22°F ~ 140°F);Humidity:10%~
95% RH(non-condensing)
Conformity Certifications IP67,CE, FCC
