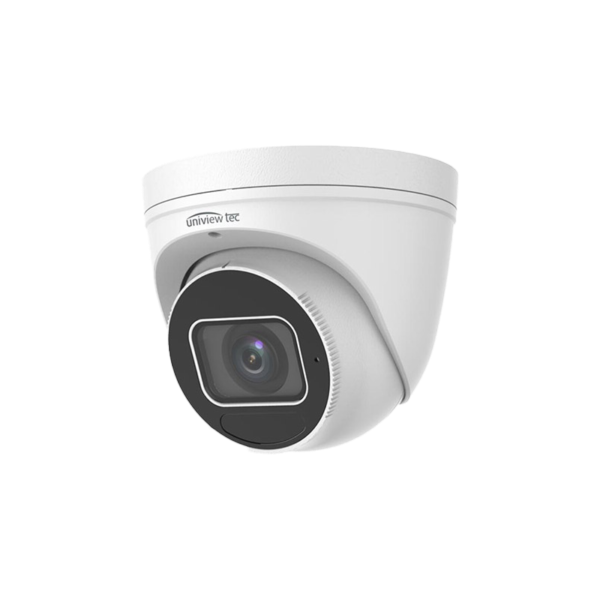

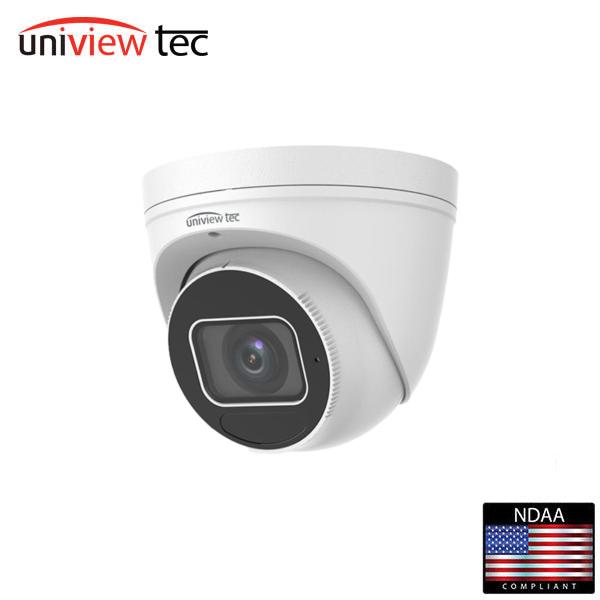

*Discontinued* Uniview Tec / UVT / IPT4K212MX / Eyeball Camera / IP / 8MP / 2.8 ~ 12mm Varifocal Lens / True Day-Night / Lighthunter / WDR / 40m IR

*Discontinued* Uniview Tec / UVT / IPT4K212MX / Eyeball Camera / IP / 8MP / 2.8 ~ 12mm Varifocal Lens / True Day-Night / Lighthunter / WDR / 40m IR

Discontinued
SKU UNT-IPT4K212MX NSID 70626
$389.00

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesLightHunter Technology for ultra-high quality color video images in low light applications with up 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsTwo-way Audio w/ built-in Mic, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction); Triple Video Streams; ONVIF Profile S CompliantIntelligent Perimeter Protection with Smart Intrusion Detection AnalyticsPoE & 12VDC Power Options; Optional Wall and Pendant Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices



    View full details

    Details

    Camera
    Sensor 1/2.8", progressive scan , 8 megapixel, CMOS
    Lens 2.8~12 mm, varifocal automatic focusing
    and motorized zoom lens
    Angle of View (H) 107.4° ~ 29.2 x 54.2° ~ 16.3° (wide ~ tele)
    Shutter Auto/Manual, 1 ~ 1/100000 s
    Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    IR LED Range Up to 40m (131ft) IR range
    WDR 120dB
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Maximum Frame Rate / Stream Main: 8MP (3840 x 2160) @ 20fps
    Sub: 2MP (1920 x 1080) @ 30fps
    Third Stream: D1 (720 × 576) @30fps
    HLC, BLC, 9:16 Corridor, Defog, Flip Supported
    OSD, Privacy, Motion & ROI Up to 8 areas
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
    RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
    HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
    Network RJ45, 10M/100M Base-TX Ethernet
    Smart Intrusion Prevention Cross Line, Intrusion, Enter/Leave Area Detection
    Local Storage Micro-SD, up to 256GB
    Network Storage Automatic Network Replenishment (ANR)
    General
    Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 9W
    Dimensions (Ø x H) & Weight ?129 x 110mm (Ø5.1 x 4.3”); 0.69kg (1.52lb)
    Audio I/O & Compression 1 / 0, w/ built-in microphone; G711
    Operating Temperature &
    Humidity
    -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
    95% RH (non-condensing)
    Conformity Certifications IP67, IK10; CE, FCC
