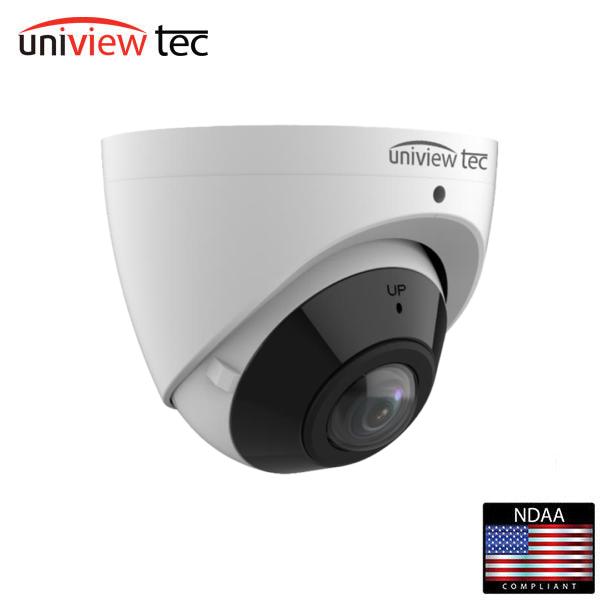

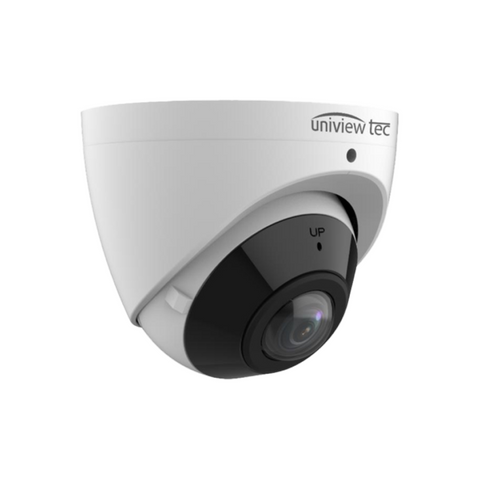

Uniview Tec / UVT / IPT5180X / Eyeball Camera / IP / 5MP / 1.68mm Fixed Lens / AI / True Day-Night / WDR / 20m IR
- $219.00
-
$262.80 - $219.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 66 FeetPanoramic 1.68mm, 180° lens; ONVIF Profile S CompliantTRUE Day/Night and WDR functionality for all Lighting ConditionsTriple Video Streams, Defog, Dewarping, Backlight Compensation and 3D DNRIntelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehiclesPoE & 12VDC Power Options and Optional Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GB3-way Axis, IP67 Weather Resistant and IK10 Vandal Resistant HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | Panoramic 1.68mm @ F2.0 |
| Angle of View (H x V) | 180° x 180 |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Smart IR LED Control; Range | Auto / Manual On / Off; Up to 20m (66ft) |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 5MP (2880 x 1620) @ 30fps Sub: 1080P (1920 x 1080) @ 30fps Third Stream: D1 (720 x 576) @ 30fps |
| HLC, BLC, Defog, Flip, Dewarping | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Prevention | Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention |
| Local Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/- 25%; PoE (IEEE802.3 af); Power consumption: Max 5.5W |
| Dimensions (Ø x H) & Weight | ?111 x 93mm (?4.4 x 3.7”); .48kg (1.06lb) |
| Audio & Compression | Built-in Mic; G.711A & G.711U Compression |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10, CE, FCC |
