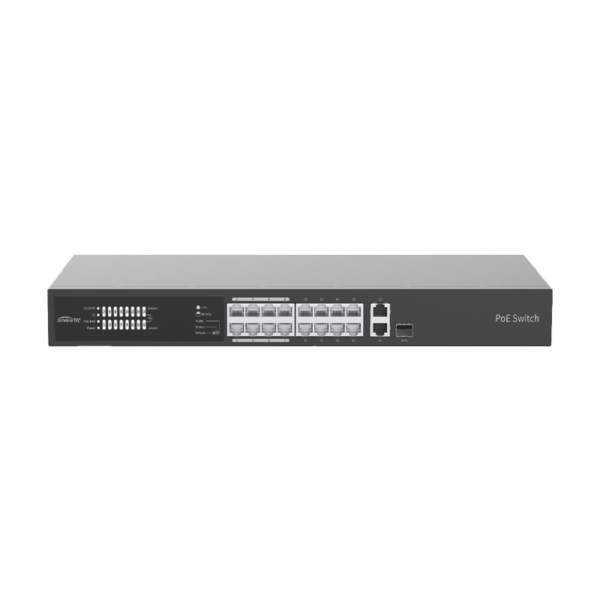

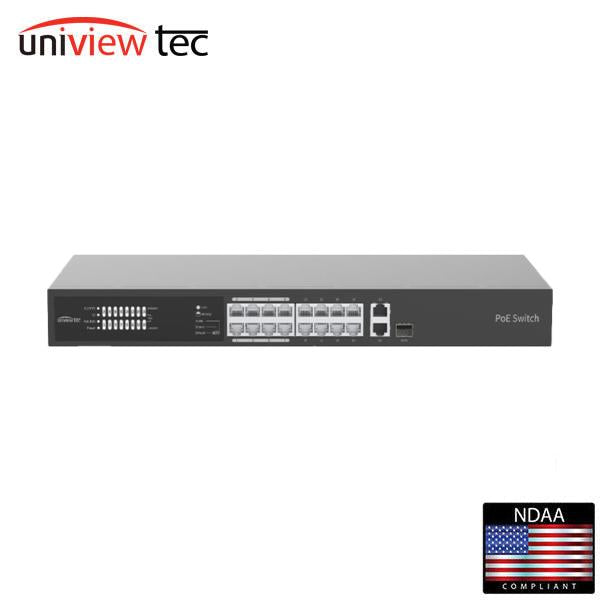

*Discontinued* Uniview Tec / UVT / NSW162PX / 16-Port PoE Network Switch
Out of Stock
SKU:
UNT-NSW162PX
NSID:
70610
- $289.00
-
- $289.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) Guidelines16 x 100Mbps RJ45 PoE ports, 225W Total Capacity – model NSW162PXEach model has 1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit PortsSupport buffer optimization and port traffic controlMultiple working modes to address all applications: Normal, Secure and SurveillancePoE complies with IEEE802.3af/at, up to 30W for single portUp to 825ft (250m) transmission distance on EXTEND (Surveillance) modeHigh quality, metal housing and built-in cooling fan
- $289.00
-
- $289.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Video Test Monitor | |
|---|---|
| Ports | 16 or 24 × 100Base-TX RJ45 PoE ports; 1 x 1000Mbps SFT port and 2 x 1000Mbps Gigabit Ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| MAC | 16K |
| Packet Forwarding Rate | 5.36Mpps (16 port); 6.55Mpps (24 port) |
| Switching Capacity | 7.2Gbps (16 port); 8.8Gbps (24 port) |
| Work Modes | Default (Normal mode): All ports can communicate with each other. EXTEND (Surveillance mode): Transmission distance up to 250 meters. VLAN (Secure mode): Downlink ports can communicate only with uplink ports (24 port only) |
| Indicator LED’s | PWR: Steady on: AC input is normal; Off: No AC input PoE: Off: No PoE power supply; Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data |
| PoE |
802.3at/af: Max capacity for single port = 30W 16-port Max PoE capacity: 225W 24-port Max PoE capacity: 370W |
| Internal Cooling Fans | 1, each model |
| AC Voltage | 100-240V, 50/60Hz |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Operating Humidity | 10% ~ 90% RH |
| Dimensions | 16 port: 440 × 189.8 × 44mm (17.3 × 7.5 × 1.7") 24 port: 440 × 244.8 × 44mm (17.3 × 9.6 × 1.7") |
| Weight | 2.1kg (4.6lb) 16-port 2.93kg (6.5lb) 24-port |
Downloads
