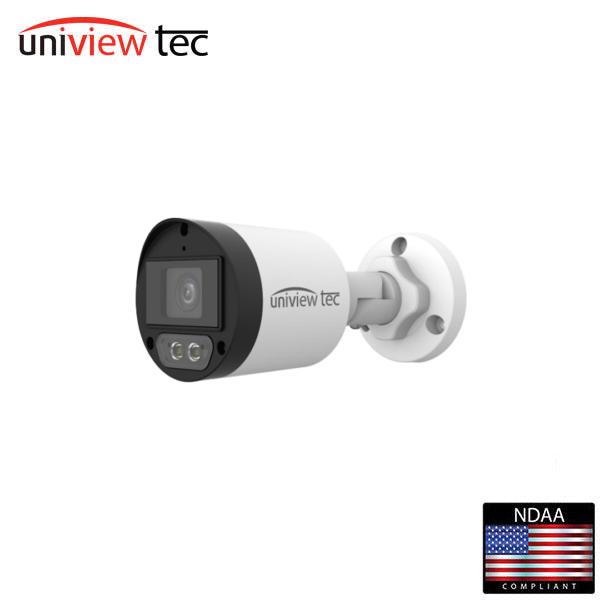

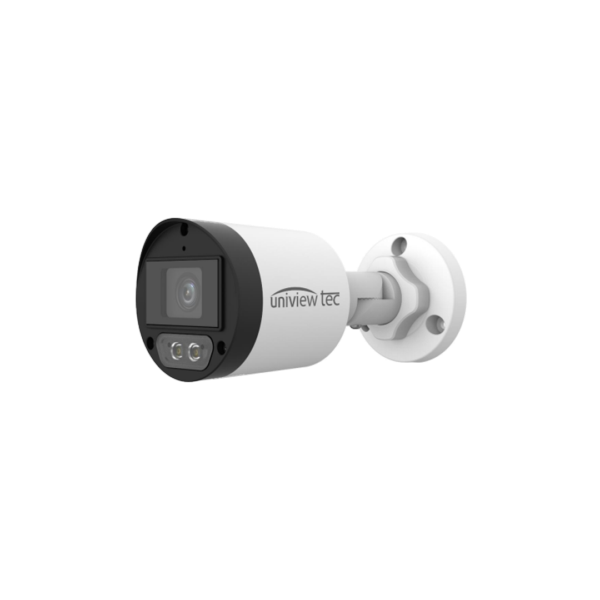

*Discontinued* Uniview Tec / UVT / UHDB5C28X / Bullet Camera / HDCVI / 5MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR

*Discontinued* Uniview Tec / UVT / UHDB5C28X / Bullet Camera / HDCVI / 5MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR

Discontinued
SKU UNT-UHDB5C28X NSID 70660
$69.00

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesHigh Video Quality with 5MP, 2880 x 1620 ResolutionHigh Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessaryTVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and PerformanceColorHunter Technology allows 24/7 Full-Color Imaging with White Light Illumination2.8mm fixed lens, Backlight Compensation and 2D DNR (Digital Noise Reduction)TRUE Day/Night and DWDR functionality for all Lighting ConditionsBuilt-in Microphone for High Quality Audio Transmission via Coax CablesSupports 180° horizontal flip, 180° vertical flipEasy to Operation On Screen Display (OSD) Configuration Menu12VDC Power Options; IP67 Weather Resistant Housing with Optional MountsSupported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices



    View full details

    Details

    Sensor
    Pixel 5MP
    Size 1/2.9" CMOS
    Minimum illumination 0.005 lux (F1.4, AGC ON)
    0 lux (white light on)
    Lens
    Focal Length 2.8mm
    Angle of View (H x V) 111.5° x 58.9°
    IR Illumination
    White Light Two Illuminator; 40M (130ft)
    Video
    Resolution 5MP @ 25fps: 2880 × 1620; 5MP @ 20fps: 2592 × 1944; 5MP @ 12.5fps: 2592 × 1944
    4MP: 2560 × 1440
    1080P: 1920 × 1080
    Frame rate TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    CVBS: PAL, NTSC
    Shutter time PAL: 1/25s-1/50000s
    NTSC: 1/30s–1/50000s
    Exposure mode 4 modes: Global (default), BLC, HLC, DWDR
    Day/Night 24/7 full-color imaging
    Digital noise reduction 2D
    White balance Two modes: Auto (default), Manual
    WDR DWDR
    Flip Supports 180° horizontal flip, 180° vertical flip.
    Audio
    Microphone Built-in
    Camera Audio TVI: 5MP@20fps, [email protected], 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
    CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
    Interface
    Power 5.5mm power interface
    Video output BNC, supports TVI / AHD / CVI / CVBS
    Operating Environment
    Temperature -30? to 60? (-22? to 140?)
    Humidity ?95% (RH, non-condensing)
    Surge protection 4KV
    Ingress protection IP67
    General
    Power DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.28W
    Mount 3D bracket supplied, surface mount (default); optional junction box and pole mount available
    Dimensions (L x W x H) 157.4 x 67 x 66mm (5.6 x 2.4 x 2.6”)
    Material Metal and Plastic
    Weight 279g (0.62lb)
    Certification CE, FCC
