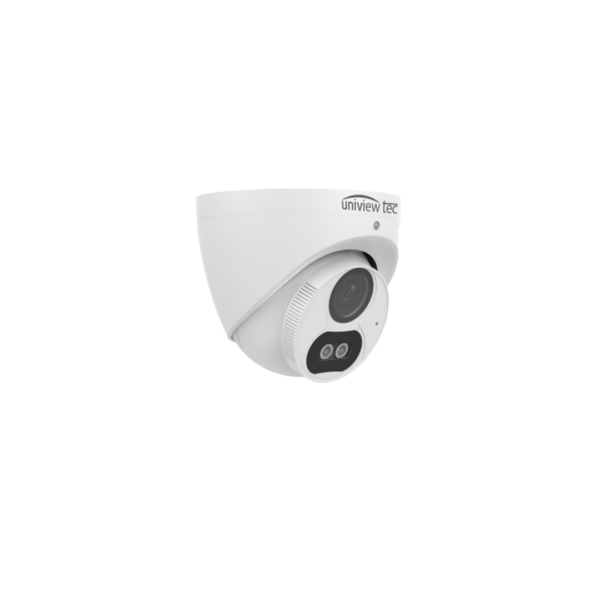

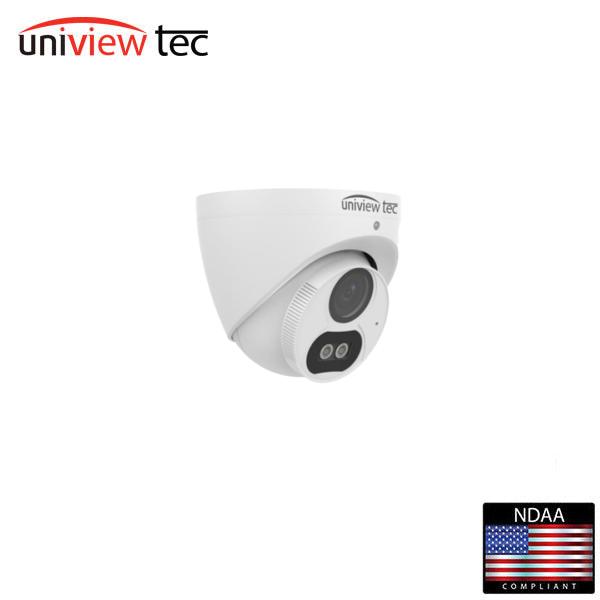

*Discontinued* Uniview Tec / UVT / UHDT2C28X / Eyeball Camera / HDCVI / 2MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR

*Discontinued* Uniview Tec / UVT / UHDT2C28X / Eyeball Camera / HDCVI / 2MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR

Discontinued
SKU UNT-UHDT2C28X NSID 70661
$49.00

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesHigh Video Quality with 2MP, 1920 x 1080 ResolutionHigh Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessaryTVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and PerformanceColorHunter Technology allows 24/7 Full-Color Imaging with Dual White Light IlluminatorsTRUE Day/Night and DWDR functionality for all Lighting ConditionsBuilt-in Microphone for High Quality Audio Transmission via Coax Cables2.8mm Fixed Lens, Backlight Compensation and 3D DNR (Digital Noise Reduction)Supports 180° horizontal flip, 180° vertical flip and digital DefogEasy to Operation On Screen Display (OSD) Configuration Menu12VDC Power Options; IP67 Weather Resistant Housing with Optional MountsSupported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices



    View full details

    Details

    Sensor
    Pixel 2MP
    Size 1/2.9" CMOS
    Minimum illumination 0.005 lux (F1.6, AGC ON)
    0 lux (white light on)
    Lens
    Focal Length 2.8mm
    Angle of View (H x V) 101.5° x 56.9°
    IR Illumination
    White Light Two Illuminators; 40M (130ft)
    Video
    Resolution 1080P: 1920(H)×1080(V)
    720P: 1280(H) ×720(V)
    Frame rate TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
    CVBS: PAL, NTSC
    Shutter time PAL: 1/25s-1/50000s
    NTSC: 1/30s–1/50000s
    Exposure mode 4 modes: Global (default), BLC, HLC, DWDR
    Day/Night 24/7 full-color imaging
    Digital noise reduction 2D / 3D
    White balance Two modes: Auto (default), Manual
    WDR DWDR
    Flip Supports 180° horizontal flip, 180° vertical flip.
    Defog Digital
    Audio
    Microphone Built-in
    Camera Audio TVI: 5MP@20fps, [email protected], 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
    CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
    Interface
    Power 5.5mm power interface
    Video output BNC, supports TVI / AHD / CVI / CVBS
    Operating Environment
    Temperature -30? to 60? (-22? to 140?)
    Humidity ?95% (RH, non-condensing)
    Surge protection 4KV
    Ingress protection IP67
    General
    Power DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.12W
    Mount Surface mount (default); optional junction box and wall mount available
    Dimensions (Dia x H) ?111 x 96mm (4.4 x 3.8”)
    Material Metal and Plastic
    Weight 356g (0.79lb)
    Certification CE, FCC
