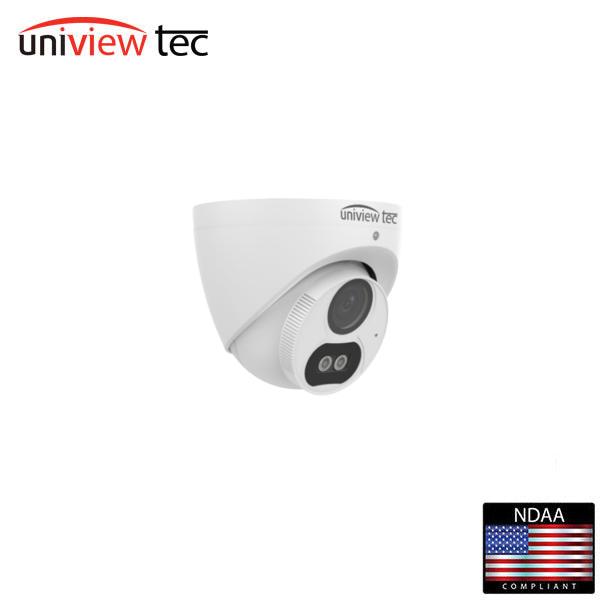

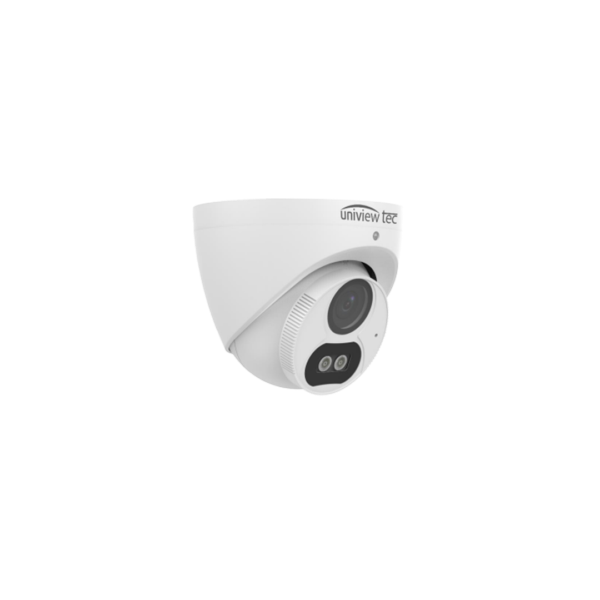

*Discontinued* Uniview Tec / UVT / UHDT5C28X / Eyeball Camera / HDCVI / 5MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR
- $69.00
-
- $69.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesHigh Video Quality with 5MP, 2880 x 1620 ResolutionHigh Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessaryTVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and PerformanceColorHunter Technology allows 24/7 Full-Color Imaging with Dual White Light IlluminatorsTRUE Day/Night and DWDR functionality for all Lighting ConditionsBuilt-in Microphone for High Quality Audio Transmission via Coax Cables2.8mm Fixed Lens, Backlight Compensation and 2D DNR (Digital Noise Reduction)Supports 180° horizontal flip, 180° vertical flipBacklight Compensation and 2D DNR (Digital Noise Reduction)Supports 180° horizontal flip, 180° vertical flipEasy to Operation On Screen Display (OSD) Configuration Menu12VDC Power Options; IP67 Weather Resistant Housing with Optional MountsSupported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $69.00
-
- $69.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Sensor | |
|---|---|
| Pixel | 5MP |
| Size | 1/2.7" CMOS |
| Minimum illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) |
| Lens | |
| Focal Length | 2.8mm |
| Angle of View (H x V) | 111.5° x 58.9° |
| IR Illumination | |
| White Light | Two Illuminators; 40M (130ft) |
| Video | |
| Resolution | 5MP @ 25fps: 2880 × 1620; 5MP @ 20fps: 2592 × 1944; 5MP @ 12.5fps: 2592 × 1944 4MP: 2560 × 1440 1080P: 1920 × 1080 |
| Frame rate | TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Audio | |
| Microphone | Built-in |
| Video output | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Temperature | -30? to 60? (-22? to 140?) |
| Humidity | ?95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.28W |
| Mount | Surface mount (default); optional junction box and wall mount available |
| Dimensions (Dia x H) | ?111 x 96mm (4.4 x 3.8”) |
| Material | Metal and Plastic |
| Weight | 356g (0.79lb) |
| Certification | CE, FCC |
