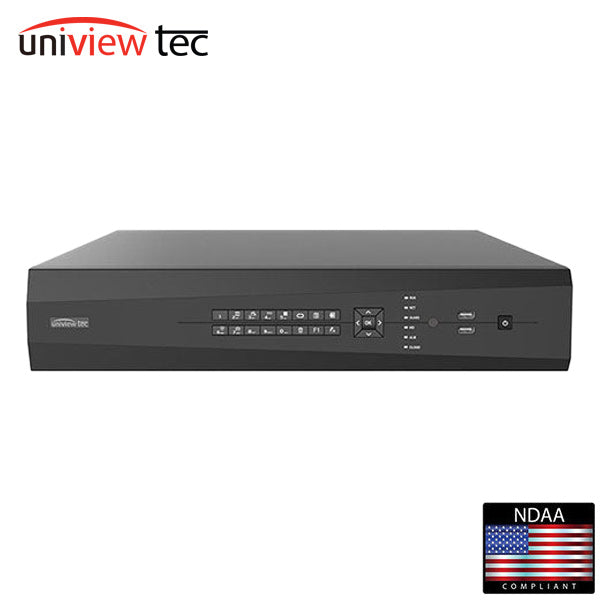

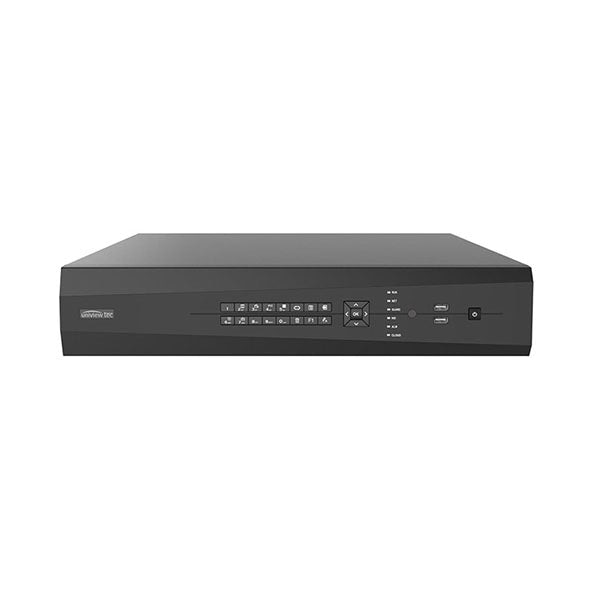

*Discontinued* Uniview Tec / UVT / NR164X / 16ch / 12MP Resolution / 4-bay HDD / H.265 NVR - Optional HDD
Out of Stock
SKU:
UNT-NR164X-16T-delete
NSID:
68302
- $1,422.45
-
- $1,422.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Supports recording of up to 12MP Resolution Images
- Display 4K (3840 x 2160) Resolution Images on 2 x HDMI Outputs
- Concurrent Independent Displays on HDMI and VGA Monitor Outputs
- ONVIF Profile Series Compliant
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 4 SATA HDD’s up to 10TB each for 40TB total
- Two way audio and Alarm I/O Support
- Various Panoramic, Fisheye Dewarping modes are supported for live view and playback
- Supports RAID 1 & 5
- Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Device
Key Features
- $1,422.45
-
- $1,422.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Video | |
|---|---|
| IP Camera Inputs | 16 channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 12MP Maximum |
| Playback Video Capability (fps) | 2 x 12MP @ 30; 4 x 4K @ 30; 8 x 4MP @ 30; 9 x 4MP @ 25; 16 x 1080p @ 30 |
| Monitor Output | 2 x HDMI (4K ~ 720p); 1 x VGA (1080p ~ 720P) |
| Synchronous Playback | 16 channels |
| Corridor Mode Screen Display | 3/4/5/7/9/10/12/16 |
| Network | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 384Mbps Outgoing – 384Mbps |
| Remote Users | 128 |
| General | |
| Network Interface | 2 x RJ45, 10M/100M/1000M, Self-adaptive Ethernet |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm Interface | 16ch – Inputs; 4ch - Output |
| Audio Interface | 1ch RCA Input / Output |
| Array Type | RAID 1, 5 |
| Hard Disk | 4 SATA, up to 10TB each: total 40TB |
| Power | 100-240VAC; 25W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Rack Mountable | Yes; rack ears are included |
| Dimensions (WxDxH) | 442 × 426 × 89mm (17.4 × 16.8 × 3.5")/td> |
| Weight (w/o HDD) | 5.7kg（12.57lb） |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
