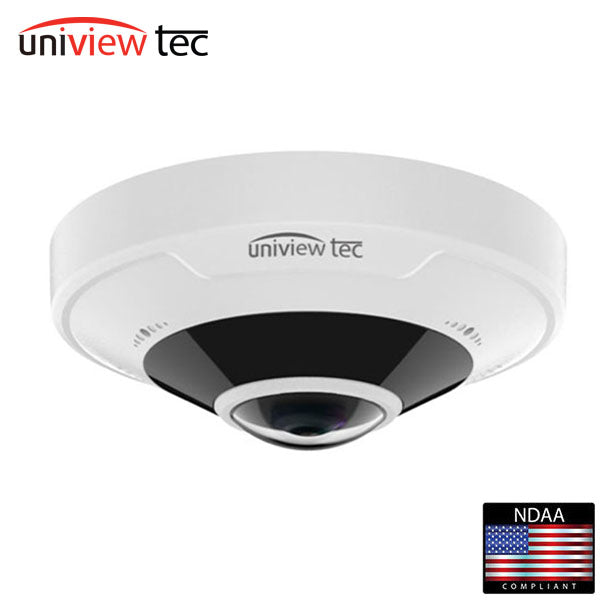

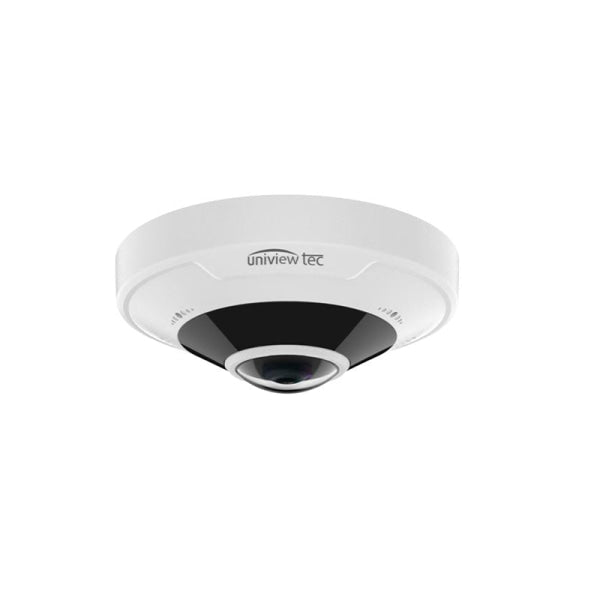

Uniview Tec / UVT / IPFE5360X / 360° Fisheye Dome Camera / 5MP / 1.4mm Fixed Lens / True Day-Night / WDR / 10m IR
Available to Order
SKU:
UNT-IPFE5360X
NSID:
68329
- $256.65
-
$646.80 - $256.65
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP, 2592 x 1944 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Embedded IR LED Light, 0Lux Night Time Operation up to 33 Feet
- Ultra-wide angle, 1.4mm, 360°panoramic lens
- TRUE Day/Night and Wide Dynamic Range functionality for all Lighting Conditions
- Two-way Audio w/ built-in microphone, Backlight Compensation, and 3D DNR (Digital Noise Reduction)
- Triple Video Streams and ONVIF Profile S Compliant
- PoE & 12VDC Power Options and Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP66 Weather Resistant & IK10 Impact Resistant, Vandal Housing
- Optional Mounting Accessories Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.8", progressive scan , 5 megapixel, CMOS |
| Lens | 1.4mm @ F2.0 |
| Shutter | Auto/Manual, 1/6 s ~ 1/100000 s |
| Angle of View | 360° |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 10m (33ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate /Stream | Main Stream: (2592 × 1944): Max.30fps; Sub Stream: (1920 × 1080): Max.30fps; Third Stream: D1 (720 x 576): Max.30 fps |
| BLC, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/-25%, PoE (IEEE802.3af); Max. 8.5W |
| Dimensions (Ø x H) & Weight | Ø125 x 44mm (Ø4.9 x 1.7”); 0.36kg (0.79lb) |
| Audio I/O & Compression | 1 / 1, w/ built-in mic; G711 |
| Alarm I/O | 1 / 1 |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Operating Temperature & Humidity | -30°C ~ 60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, IK10, CE, FCC |
