Technical Specification
Video/Audio Input | |
IP Video Input | 64-ch |
Two-way Audio Input | 1-ch, BNC |
Network | |
Incoming Bandwidth | 384Mbps |
Outgoing Bandwidth | 384Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, BNC |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Decoding | |
Decoding format | Ultra 265, H.265, H.264 |
Liveview/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
Hard Disk | |
SATA | 16 SATA interfaces |
Capacity | up to 10TB for each HDD |
eSATA | 1 eSATA interface |
miniSAS | 2 miniSAS ports |
Smart | |
VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
VCA Search | Face search, Behavior search |
Statistical Analysis | People counting |
Disk Array | |
Array Type | RAID 0/1/5/6/10/50/60 |

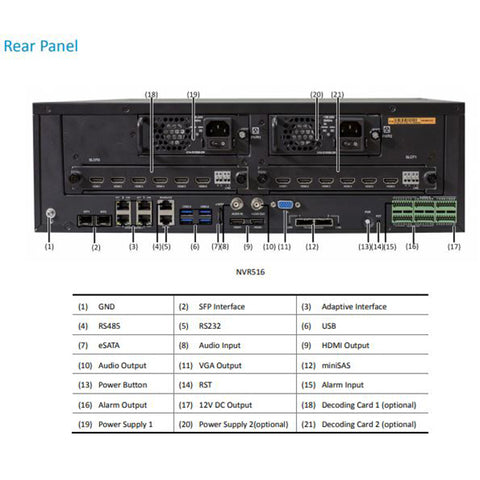

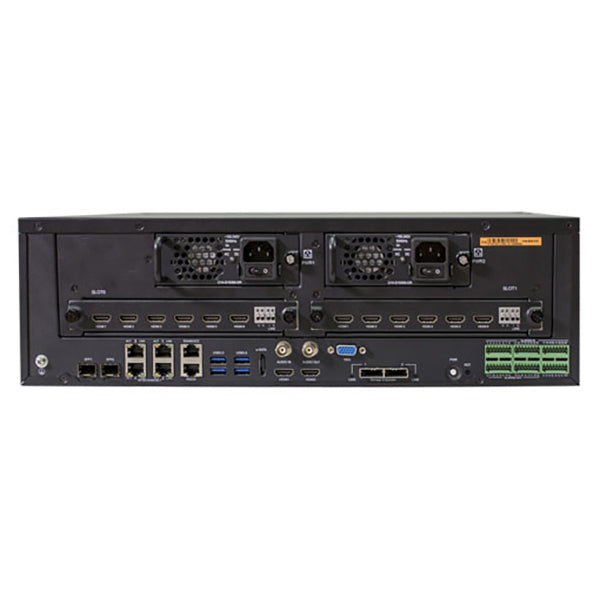

External Interface | |
Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
Serial Interface | 1 x RS232, 1 x RS485 |
USB Interface | Rear panel: 4 x USB3.0 |
Alarm In | 24-ch |
Alarm Out | 8-ch |
Decoding Card (optional) | 2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
Power Output | 12V |
General | |
Power Supply | 100 ~ 240V AC Power Consumption: ≤ 50 W( without HDD ) |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |

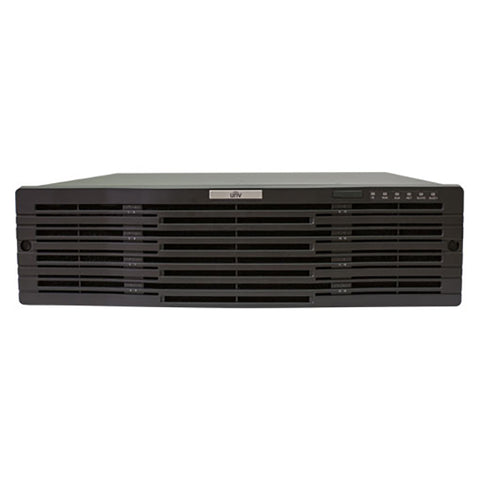

Chassis | 19-inch rack-mounted 3U chassis |

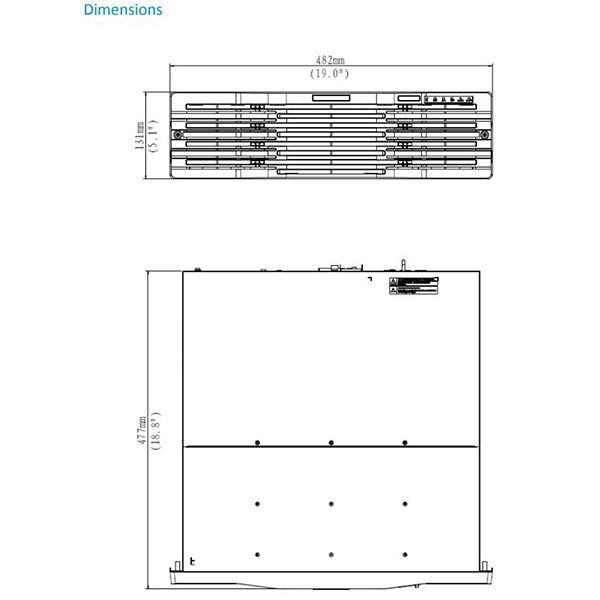

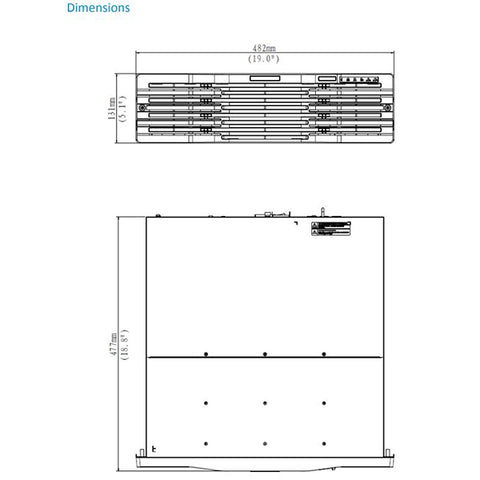

Dimensions (W×D×H) | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
Weight (without HDD) | ≤ 10 Kg ( 22.05 lb ) |
