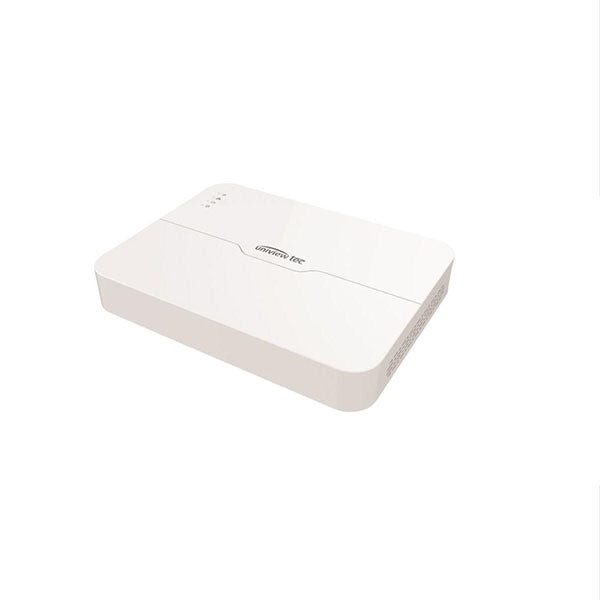

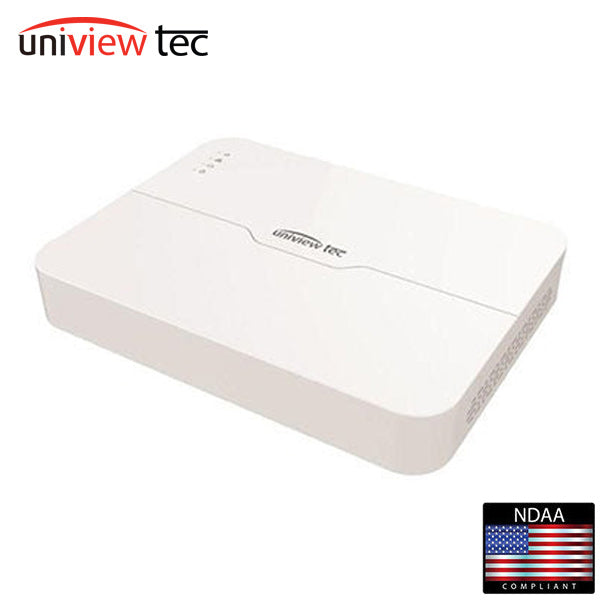

Discontinued Uniview Tec / UVT / NR08XP / 8ch Enhanced Performance / 8 PoE / 4K Resolution / H.265 NVR - Optional HDD

Discontinued

SKU UNT-NR08XP-4T NSID 68296

$382.00

Hard Drive 4TB 8TB

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
8ch network recorder with Enhanced Decoding Performance and H.265 Compression for Best-in-Class Recording and Storage Capability
Supports 1 SATA HDD up to 10TB and has Embedded PoE Switch for all Video Channels
Supports recording of up to 4K (8MP), 3840 x 2160 Resolution Images
Display Images up to 4K (8MP) Resolution on HDMI Output
Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
Easy Plug and Play Functionality with Automatic Device Discovery and Display
Powerful Video Content Analysis Features such as Cross Line Detection, Audio Detection, Scene Change and People Counting
Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile Series Compliant
Long Range PoE Capability, up to 250M (825ft) with Cat5E or Cat6
Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Details

Video
IP Camera Inputs	8 channels
Video Formats	Ultra 265, H.265, H.264
Recording Video Resolution	4K (8MP), 3840 x 2160 Maximum
Playback Video Capability (fps)	2 x 4K @ 30, 3 x 5MP @ 30, 4 x 4MP @ 30, 5 x 3MP @ 30, 8 x 1080p @ 30
Monitor Output	1 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720p)
Synchronous Playback	8 channels
Network
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Bandwidth	Incoming – 80Mbps; Outgoing – 64Mbps
Remote Users	128
Video Analytics	Detection: Face, Intrusion, Cross line, Audio, Defocus, Scene Change, Auto tracking, People Counting, Face and Behavior Search
General
Network Interface	1 – RJ45, 10M/100M, Ethernet
USB Interface	Rear panel: 1 x USB2.0, 1 x USB3.0
PoE Interface	8 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 108W total
Audio Interface	1ch RCA Input / Output
Corridor Mode	Record / Playback Multiple Cameras Simultaneously
Hard Disk	1 SATA, up to 10TB
Power	52VDC; 8W Consumption (w/o HDD)
Operating Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions (WxDxH)	270 × 205 × 42mm (10.6 × 8.1 × 1.7")
Weight (w/o HDD)	068kg（1.5lb）
Conformity Certifications	FCC, CE (UL – Power Supply only)
