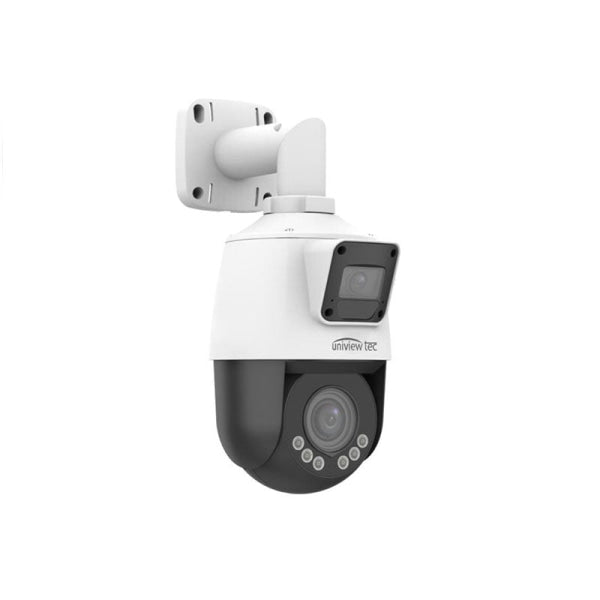

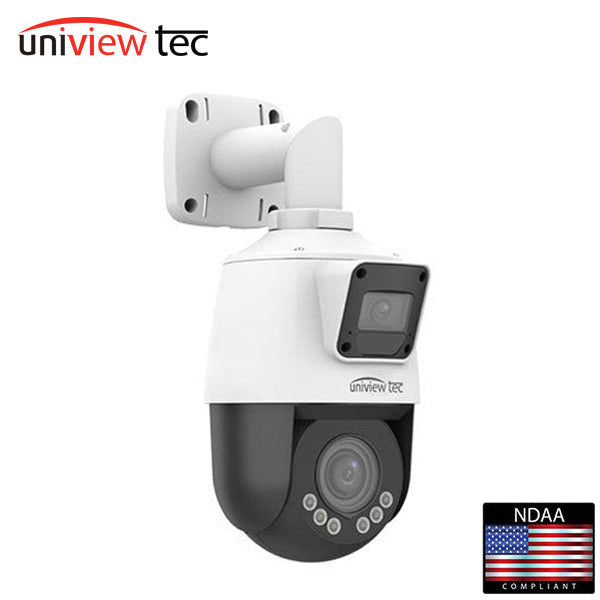

*Discontinued* Uniview Tec / UVT / IPCSD2428X / Dome Camera / 2MP / 2.8mm Fixed & 2.8mm - 12mm Optical Dual Lens / Dual Light / 10m - 50m IR Dual Lens
Out of Stock
SKU:
UNT-IPCSD2428X
NSID:
68332
- $269.00
-
- $269.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Fixed Lens and PTZ Camera Integrated with Dual IR LED and White Light
- Exceptional Video Quality with 2MP 1920 x 1080 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- LightHunter Technology for ultra-high image quality in low light applications
- Smart IR LED lights for 0 Lux Operation up to 164ft and White Light Illumination for Variety of Scenes and Environment
- Wide Angle 2.8mm fixed lens and 2.8 ~ 12mm, 4x PTZ lens Operation for Near and Far Viewing
- TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio w/ Built-in Mic x 2 & Speaker, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Dual Video Streams; ONVIF Profile S Compliant; Includes Wall and Ceiling Mounts
- Intelligent perimeter protection with Smart Intrusion Detection Analytics
- 12VDC / PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $269.00
-
- $269.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/2.8", progressive scan , 2 megapixel CMOS |
| Lens | 2.8mm Fixed and 2.8 ~ 12mm, automatic focusing and motorized Zoom |
| Angle of View (H x V) | Fixed: 102.4° x 54.9°; Zoom: 30.6° ~ 106.6° x 17.4° ~ 56.5°(wide ~ tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR/White Light |
| Day/Night & DNR | IR-cut filter with auto switch (ICR); 2D/3D DNR |
| IR LED & White Light Range | IR: Fixed: up to 10m (32.8ft); Zoom: up to 50m (164ft); White: Fixed: NA; Zoom: 10m (32.8ft) |
| WDR | Fixed: 120dB; Zoom: Digital |
| Video Compression & Maximum Frame Rate / Stream |
Ultra 265, H.265, H.264, MJPEG Main Stream: 2MP (1920 x 1080) @ 25fps Sub Stream: 720P (1280 x 720) @ 25fps |
| HLC, BLC, Flip, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 24 areas |
| Pan and Tilt Speed; Presets | 0°~345° Pan, 40°/s max speed; -10° ~ 100° Tilt, 50°/s max speed; 255 presets |
| Network | |
| Protocols | Pv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF Profile S & G, API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection; False Alarm Filter |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 16W |
| Dimensions (Ø x H) & Weight | Wall: Φ134 x 192 x 302mm (Φ5.3 x 7.6 x 11.9”) Ceiling: Φ134 x 154 x 363mm (Φ5.3 x 6.1 x 14.3”); Weight 1.03kg (2.27lb) |
| Audio I/O & Compression | 1 / 1 w/ built-in Mic & Speaker; G.711U and G.711A |
| Operating Temperature & Humidity |
-20°C ~ +60°C (-4°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, CE, FCC |
Downloads:
