*Discontinued* Uniview / UNV / IP / 5MP / Mini PTZ Dome Camera / Motorized Varifocal / 2.7 ~ 13.5mm Lens / WDR / 30m Smart IR / Wi-Fi / Starlight / LightHunter / Built-in Microphone & Speaker / 3 Year Warranty / UNV-6415SR-X5UPW-VG
Out of Stock
SKU:
UNV-6415SR-X5UPW-VG
NSID:
19503
- $409.00
-
- $409.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

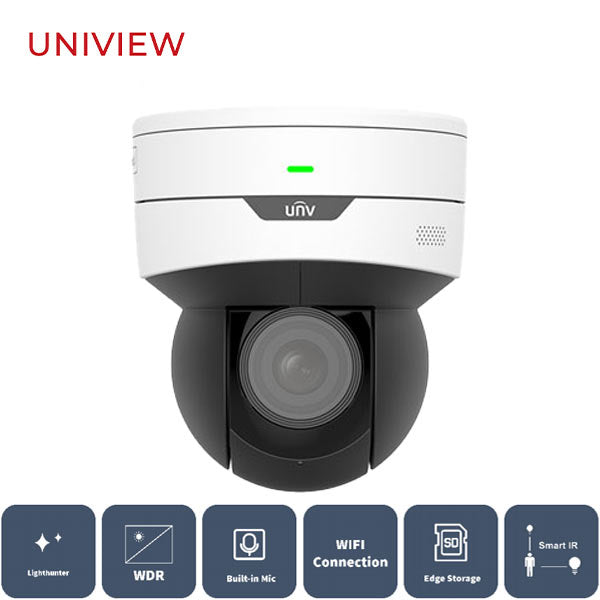

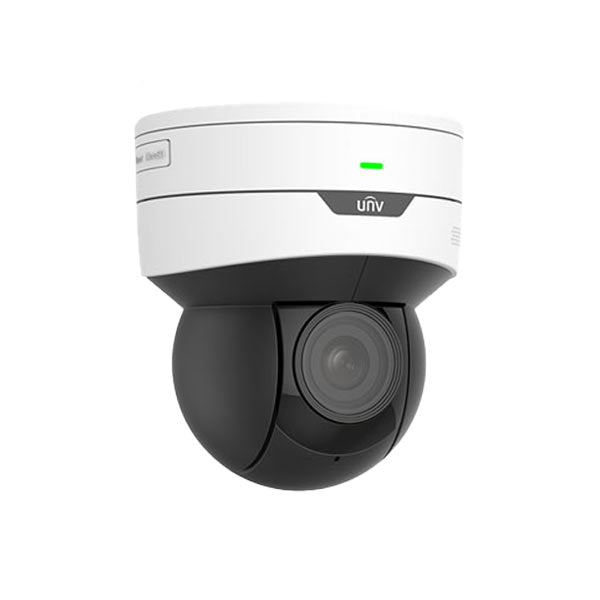

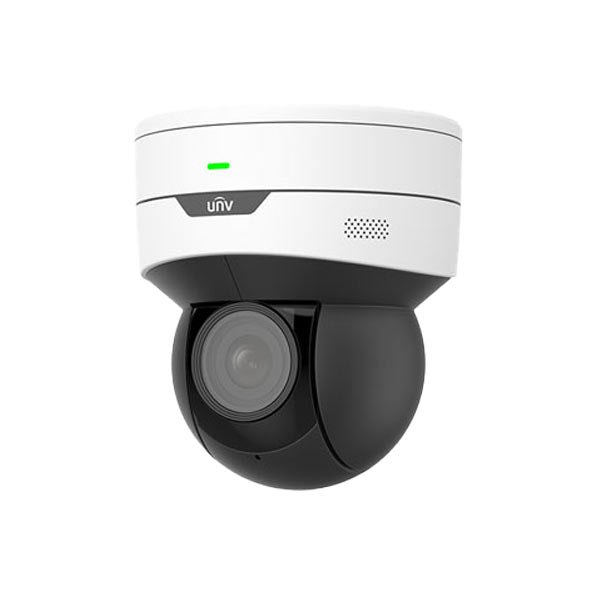

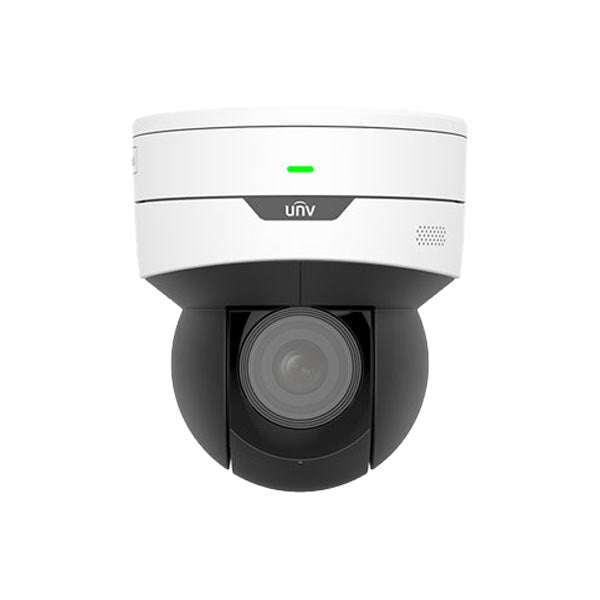

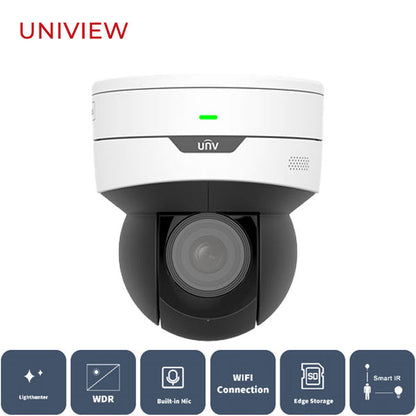

This is a Uniview IPC6415SR-X5UPW-VG 5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera.
Features
- High quality image with 5MP,1/2.7’’ CMOS sensor
- 2880*1620@30fps in the main stream, 16:9 aspect ratio
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- LightHunter Technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Smart IR, up to 30m (98 ft) IR Distance
- Alarm 1 in and 1 out
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $409.00
-
- $409.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications
| Camera | |
|---|---|
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.7 ~ 13.5mm@F1.2, AF automatic focusing and motorized zoom lens |
| DORI Distance - Lens 2.7~13.5mm - Detect (m) | 70.9 ~ 247.5 |
| DORI Distance - Lens 2.7~13.5mm - Observe (m) | 28.4 ~ 99.0 |
| DORI Distance - Lens 2.7~13.5mm - Recognize (m) | 14.2 ~ 49.5 |
| DORI Distance - Lens 2.7~13.5mm - Identify (m) | 7.1 ~ 24.8 |
| Angle of View (H) | 30.6° ~ 106.9° |
| Angle of View (V) | 17.7° ~ 56.0° |
| Angle of View (O) | 37.6° ~ 139.0° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >56dB |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps Sub Stream: 720P (1280*720), Max 30fps |
| Video Bit Rate | 128 Kbps ~16 Mbps |
| ROI |
Supported |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 24 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Events |
|
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Pan & Tilt | |
| Pan Range | 350° |
| Pan Speed | 0.1°/s ~ 60°/s Preset speed: 60°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 0.1° ~ 50°/s Preset speed: 50°/s |
| Number of Presets | 1024 |
| Patrol | Preset patrol |
| Home Position | Supported |
| Interface | |
| Alarm I/O | 1/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| WiFi | Supported |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| Certifications | IEC 62368-1 EN 62368-1 UL 60950-1 FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max 13W |
| Dimensions (Ø x H) | Φ129 x 143.6mm (Φ5.1’’ x 5.7’’) |
| Net Weight | 0.75kg(1.65lb) |
| Material | Metal |
| Working Environment | -10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non condensing) |
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non condensing) |
| Surge protection | 2KV |
Downloads
Data SheetInstallation Guide
User Manual
Smart IR
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
