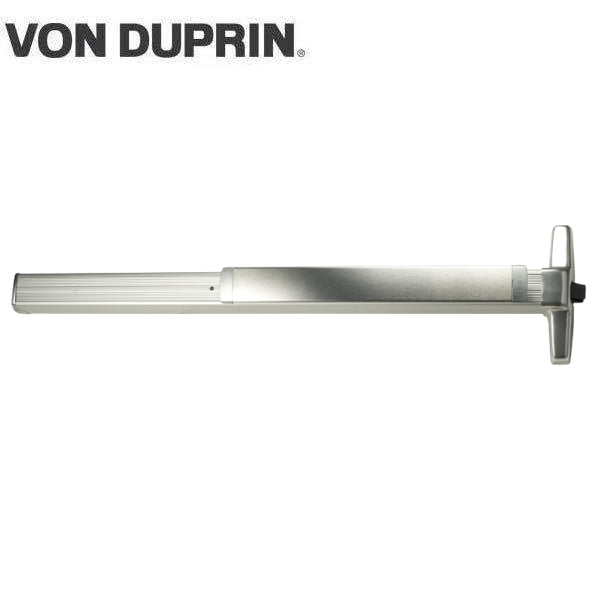

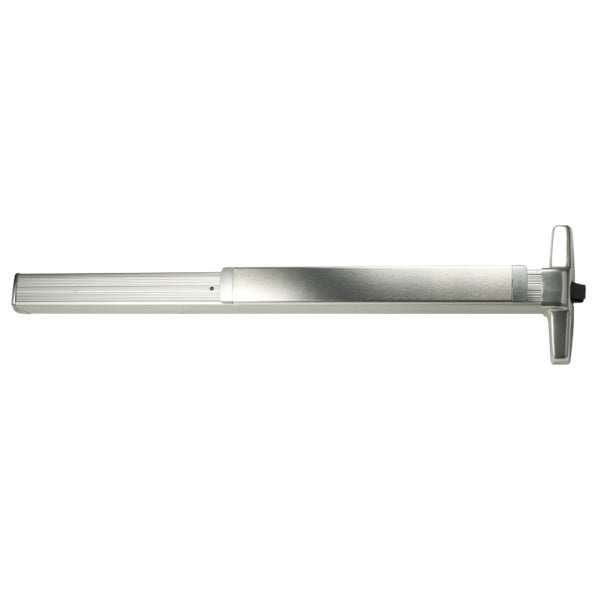

Von Duprin - 33AEO - Narrow Stile Pushpad - Rim Exit Device - Exit Only - 48" - Less Trim - Hex Key Dogging - Non-Handed - 626/US26D - Satin Chrome

Available to Order
SKU: VNDP-33AEO-4-26D
NSID: 76561

Please Note: This product ships within Days

$1,589.30
$1,907.16
$1,589.30

This Von Duprin 33A-Series Rim Exit Device is engineered for safety, security, and durability, making it an ideal solution for doors in high-traffic areas and commercial buildings. Designed to meet the stringent demands of life safety, this exit device accommodates door stiles as narrow as 1-3/4" and offers exceptional performance for both single and double doors.

This Grade 1 exit device is UL listed for panic exit hardware and meets ANSI A156.3-2001, Grade 1 standards, ensuring superior reliability and longevity. The 33A model features a grooved mechanism case, while the 35A variant has a smooth case, offering flexibility to meet various architectural needs. The rim exit device is non-handed, except when using the S5 signal switch option, making it versatile for a wide range of door configurations.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Key Features:

  • Narrow Stile Design: Accommodates door stiles as narrow as 1-3/4", ideal for aluminum and narrow-profile doors.
  • Durable Finish: Satin Chrome (26D)
  • Hex Key Dogging: Standard dogging feature with hex key operation for non-fire-rated doors, allowing for easy manual latch retraction.
  • Simple, Secure Operation: No outside operation and no cylinder—perfect for applications where internal use and security are a priority.
  • UL Listed: Certified for panic exit hardware, providing peace of mind that the device meets rigorous safety and security standards.
  • Versatile Compatibility: Suitable for doors 1-3/4" thick, with a strike that features a dull black finish for a professional, discreet appearance.

Benefits:

  • Ensures safe and reliable egress in the event of an emergency.
  • Ideal for narrow-profile doors, offering a solution where other exit devices may not fit.
  • Easy to maintain and operate, ensuring long-lasting reliability.
  • Meets both U.S. domestic and international fire and safety standards, making it a globally trusted choice.



Specification Details
Device Lengths 3' - 2' 4" to 3' Door Size; 4' - 3' 1" to 4' Door Size
UL Listed for Panic Exit Hardware Yes
Devices are ANSI A156.3 - 2001 Grade Grade 1
Device Centerline from Finished Floor 39-13/16"
Finished Floor 39-11/16"
Mechanism Case Dimensions 2-1/4" x 2-1/4"
Center Case Dimensions 8-3/16" x 2-13/32" x 1-9/16"
Projection Pushbar Neutral 3-13/16"
Pushbar Depressed 3-1/16"
Finish Satin Chrome (626/US26D)
Dogging Mechanism Hex Key Dogging (standard on non-fire-rated doors)
Application For single and double doors (with mullion), non-handed (except when using S5 signal switch)
Compliance UL Listed for Panic Exit Hardware, ANSI A156.3 – 2001 Grade 1
Strike 1439, dull black finish
Note: Bulk price rates are available! Call us at 1-800-878-6604.
