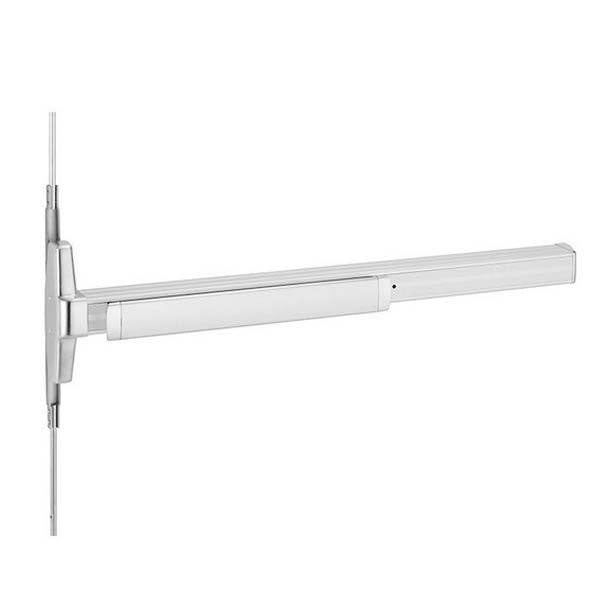

*Discontinued* Von Duprin - 3547AEO - Concealed Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - 4 Foot - Grade 1
Out of Stock
SKU:
VNDP-CD3547AEO-4-26D
NSID:
69040
- $2,138.24
-
$2,565.89 - $2,138.24
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

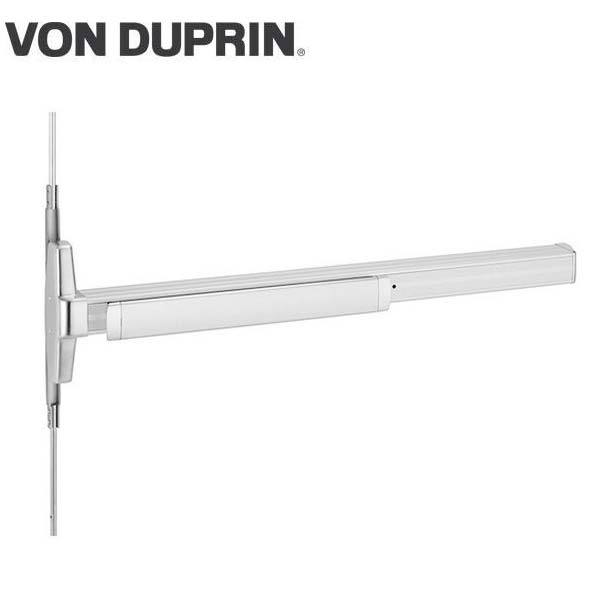

The 3547A Concealed Vertical Rod Exit Device is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 3547A has a smooth mechanism case. The concealed vertical rod device is non-handed except when an optional signal switch is used
- $2,138.24
-
$2,565.89 - $2,138.24
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Trim | No Trim - Exit Only |
| Device lengths | 2'10" to 4' |
| Device centerline from finished floor |
39 13/16" (1006mm) |
| Center case dimensions |
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm) |
| Mechanism case dimensions |
2 1/4" x 2 1/4" (57mm x 57mm) |
| Projection push bar |
Pushbar neutral – 3 13/16" (97 mm) |
| Latch bolt | Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw |
| Door undercut | 1/4" (7mm) |
| Top & bottom latch | 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm) |
| Vertical rods | Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) |
| Fasteners | Includes 1 3/4" (44mm) – 2 1/4" (57mm) for wood & metal doors |
| Finish | 626 Satin Chrome |
| Dogging feature | Cylinder dogging |
| Strikes | Top – 388 – Unfinished, bottom – 385A – Unfinished |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
