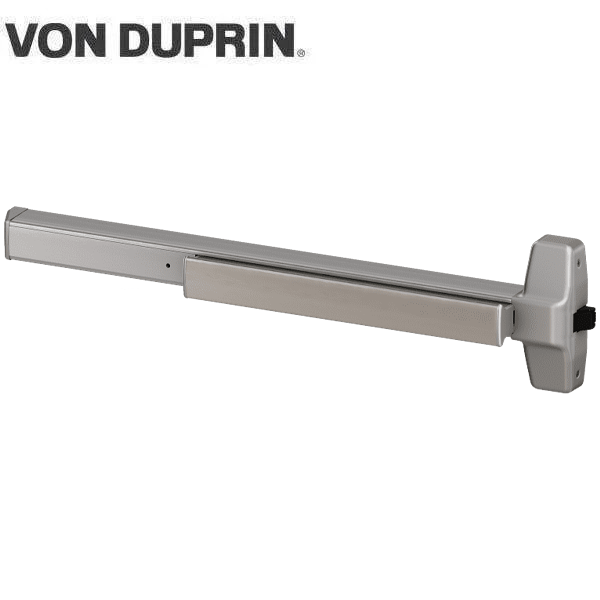

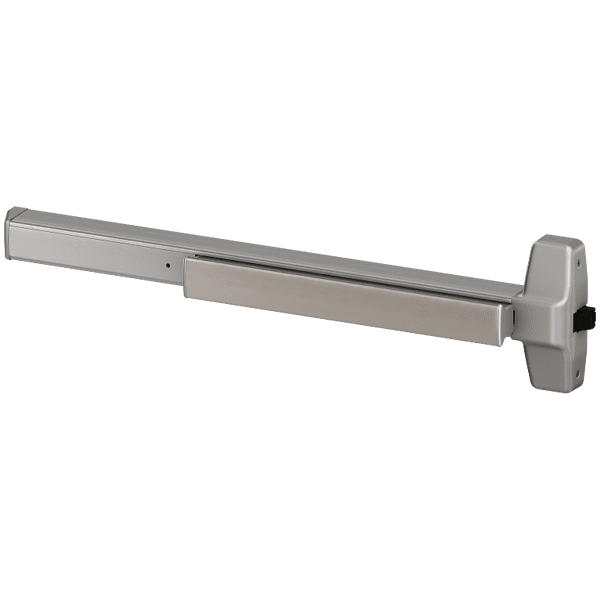

Von Duprin - 78EO - Rim Exit Device - Exit Only - Wide Stile Pushpad - Satin Aluminum Clear Anodized Aluminum Finish - 36in - Non-Handed
Available to Order
SKU:
VNDP-78EO-3-628-US28
NSID:
81559
- $902.67
-
$1,083.20 - $902.67
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
78 Rim exit devices for all types of single and double doors with mullions, UL-listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
Features:
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3' (32-3/4" actual width) and 4' (45" actual width) - can be cut to size in the field
- 299 Roller strike standard
- ANSI/BHMA Certified, Grade 1
- UL listed for panic exit hardware
Specifications:
| Brand | Von Duprin |
| ANSI/BHMA Standard | ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Fire-Rating | Non-Fire-Rated |
| Latchbolt | Deadlocking, 5/8" throw |
| Strike | 299 roller strike standard |
| Center Case | 7-7/8" x 2-3/4" x 2-3/8" |
| Fasteners | Includes screws for metal and wood doors |
| Warranty | 3 Year |
| Finishes | Satin Aluminum Clear Anodized Finish |
| Usage | Heavy Duty |
| Hand | Non-Handed |
| Dogging Feature | Half-turn hex dogging standard |
| Stile Type | Wide (standard) |
| Projections | Pushbar Neutral - 3/13/16" - Pushbar Depressed - 3-1/16" |
| Door Applications | 1-3/4" Thick Doors |
| Buy American Act Compliance | Meets Buy American Act - made in USA |
