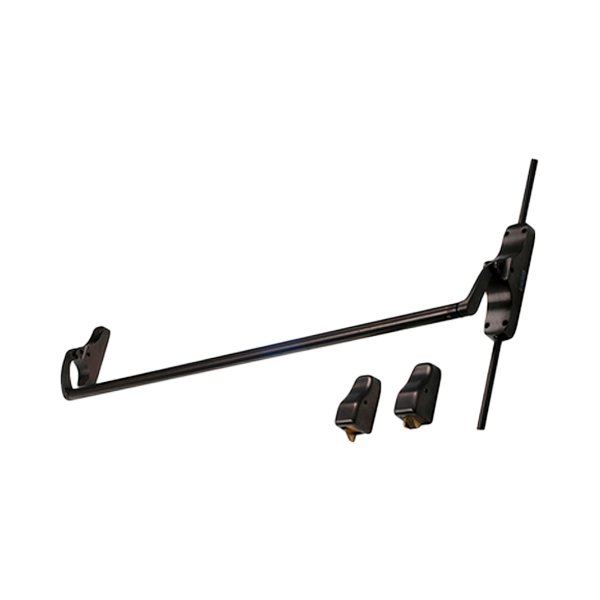

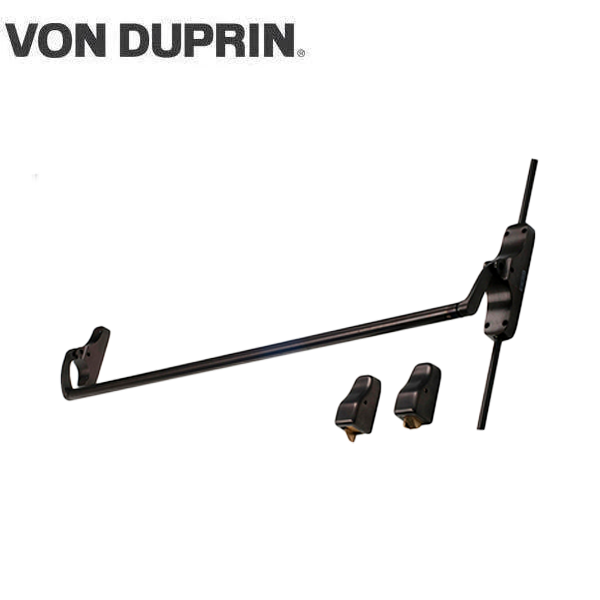

Von Duprin - 8827L - Surface Mounted Vertical Rod Exit Device - Exit Only - Oil Rubbed Bronze - 4 Foot - Field Reversible - Grade 1
Available to Order
SKU:
VNDP-8827EO-USB10B
NSID:
- $1,751.16
-
$2,188.95 - $1,751.16
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Von Duprin Division designs and manufactures high quality and reliable exit devices. All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.
Specifications
| Trim | Less Trim |
| Handing | Field Reversable |
| Device functions | Device ships EO, DT, TP, K, L, TL |
| Device lengths | 42" for 4' door |
| Device centerline | 39 13/16" |
| Device centerline from finished floor |
36 13/16" (935 mm) at center |
| Lock stile case | 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) |
| Hinge stile case | 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm) |
| Top and bottom latch case |
4" x 2" x 1 7⁄8" (102mm x 51mm x 48mm).
|
| Faceplate | 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) |
| Cylinder backset | 2 3/4" (70 mm) |
| Crossbar tubing | 1" (25 mm) outside diameter |
| Latchbolt | 5/8" (16mm) throw |
| Projection | Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm) |
| Finish | US10B - Oil Rubbed Bronze |
| Dogging feature | Hex key dogging standard |
| Strikes | Top 299 - Dull black Bottom 248L-4 and 304L - unfinished |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1 |
