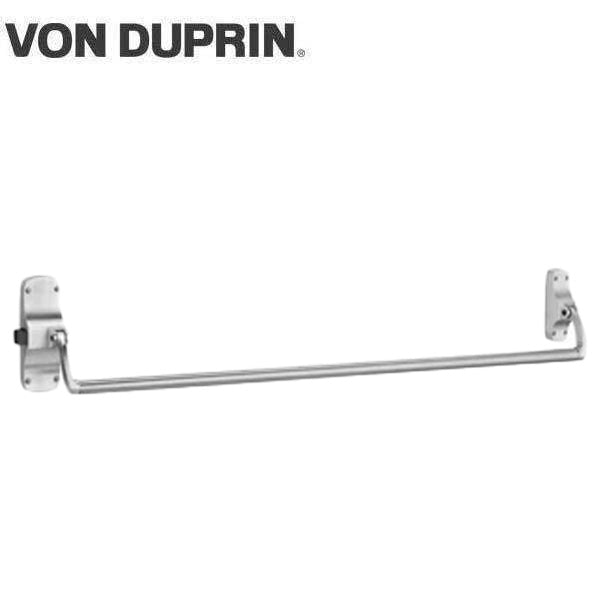

Von Duprin - 88L - Rim Exit Bar - Wide Stile Crossbar - Classroom Function - Fire-Rated Device - 48" - Less Trim - Left Hand Reverse - 625/US26 Bright Chrome -
Von Duprin - 88L - Rim Exit Bar - Wide Stile Crossbar - Classroom Function - Fire-Rated Device - 48" - Less Trim - Left Hand Reverse - 625/US26 Bright Chrome -
$2,105.94$2,527.13On Sale
You save $421.19 (17%)
Please Note:
This product has a lead time
Quantity
Couldn't load pickup availability

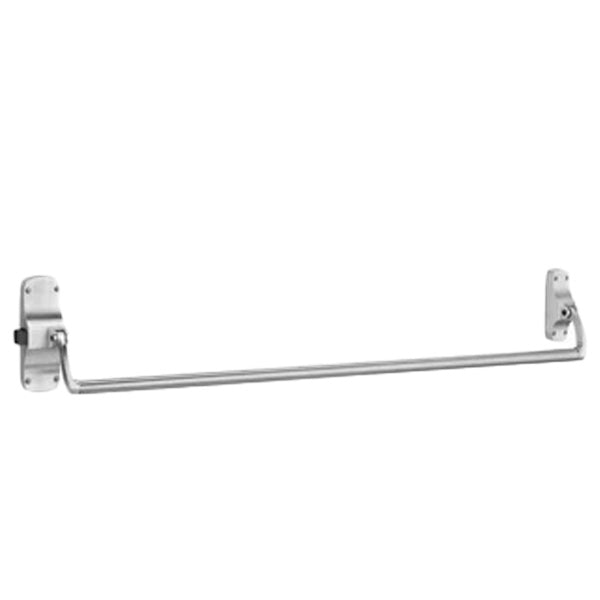

The 88 Series is a classic crossbar exit device. A standard wide stile device, the 88 Series is designed for applications where a crossbar is preferred.
Features:
- Device Functions: Ships EO, DT, NL, TP, L, K
- Crossbar Length: 42' field sizeable Device centerline 39 13/16"
- Crossbar centerline to finished floor: 36 13/16" at center
- Lock Stile case: 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
- Hinge Stile case: 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
- Crossbar tubing: 1" (25mm) outside diameter
- Projection: Neutral - 4-3/4" (121mm), Depressed - 4" (102mm)
- Latchbolt: 3/4" (19mm), throw
- Fasteners: All necessary mounting fasteners are included
View full details
Details
Specifications:
| Fire Rated | Yes |
| Includes Cylinder | No |
| Trim Design | Lever with Escutcheon |
| Cylinder Type | 1-1/4" Mortise |
| Door Material | All types |
| Door Width | 36" to 48" |
| Device Type | Rim |
| Device Length | 48" |
| Function | Classroom |
| Handing | Left-Handed Reverse |
| Includes Trim | No |
| Physical Appearance | Wide Stile Crossbar |
| Dogging Options | Less Dogging |
| Trim Type | Lever |
| Reversible | No |
| Door Thickness | 1-3/4" |
| Mechanical Options | Fire Rated |
| Grade | Grade 1 |
| Warranty | 3-years manufacturer's warranty |
