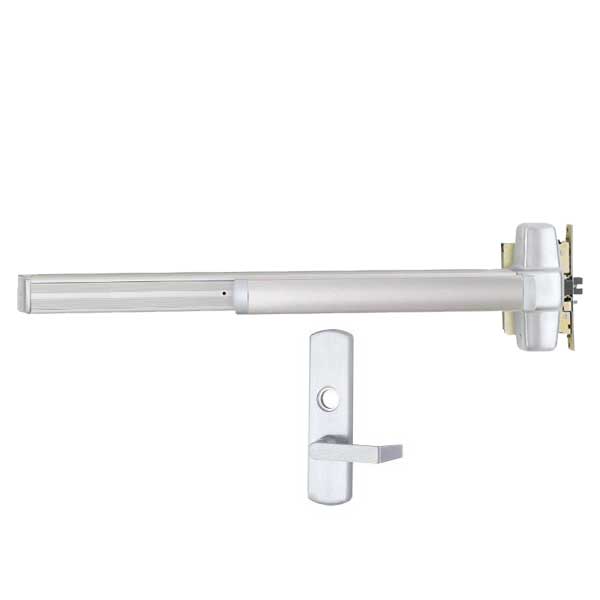

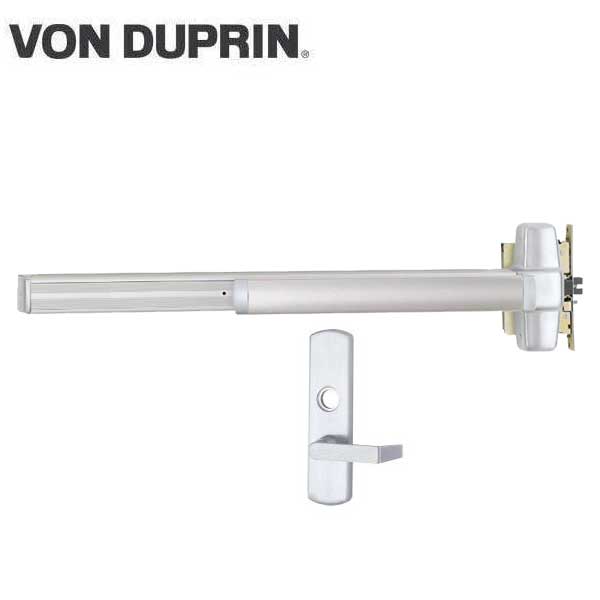

*Discontinued* Von Duprin - 9875 - Mortise Lock Exit Device - Classroom - 3' Long - Less Core - Satin Chrome - Grade 1
*Discontinued* Von Duprin - 9875 - Mortise Lock Exit Device - Classroom - 3' Long - Less Core - Satin Chrome - Grade 1
$957.64$2,708.64On Sale
You save $1,751.00 (65%)
9875 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 9875 device has a smooth mechanism case. The mortise lock device is non-handed.
Features:
- No cylinder included with trim
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
Details
Specifications:
| Function | Classroom - Outside Keyed, Inside Always Free |
| Device Length | 3' Length. fits 2'4" to 3' Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Handing | Right Hand Reverse, field reversible |
| Finish | US26D (626) Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. |
| Cylinder | 1 1⁄4" mortise, Less Cylinder (Cylinder Not Included) |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1 |
