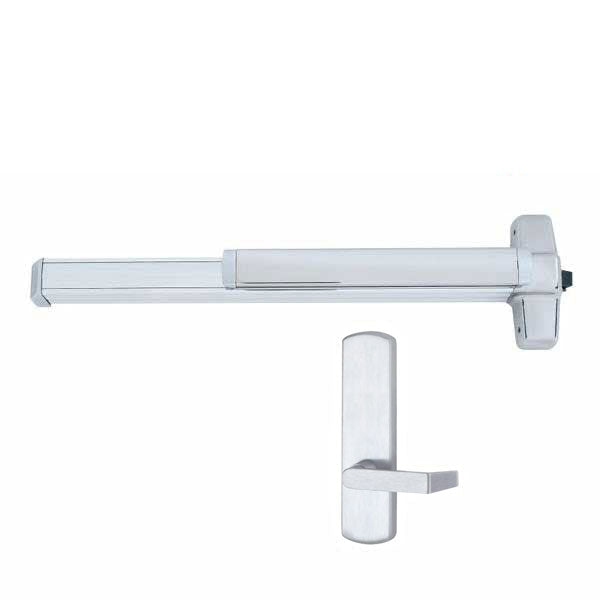

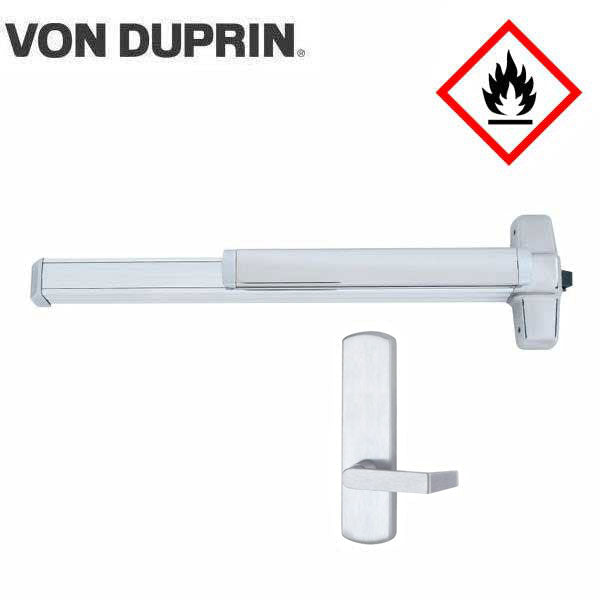

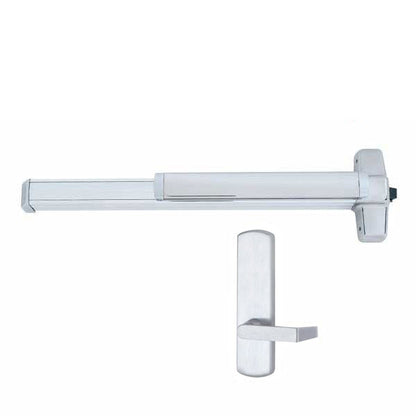

Von Duprin - 98L-BE - Rim Exit Device - Blank Escutcheon - Satin Chrome - 3 Ft - Fire Rated - Grade 1

Available to Order
SKU: VNDP-98L-BE-F-996L-BE-RV-US26D-LHR
NSID: 31937

Please Note: This product has a lead time

$1,398.00
$1,677.60
$1,398.00

98-F rim fire exit devices for all types of single and double doors with mullion, UL listed for fire exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Lever 996L - BE - Blank Escutcheon
Device lengths (3') 2'4' to 3' (711mm to 914mm) Door size
Device centerline
from finished floor
39 13⁄16" (1011mm)
39 11⁄16" (1008mm) with mullion
Center case
dimensions
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection push bar

Pushbar neutral – 3 13/16" (97mm)
Pushbar depressed – 3 1/16" (78mm)

Latch bolt Deadlocking, 3/4" (19 mm) throw
Fasteners Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws
Handing Left Hand Reversible
Finish 626 - US26D - Satin Chrome
Dogging feature No mechanical dogging
Strikes 299F – Dull black (Standard), 499F with mullions
Fire Rated UL10C, 3 Hours
Certifications ANSI A156.3 – 2008 Grade 1.
