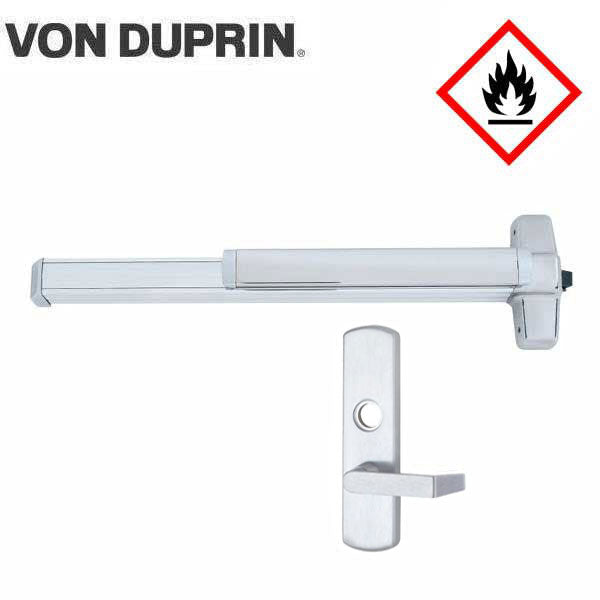

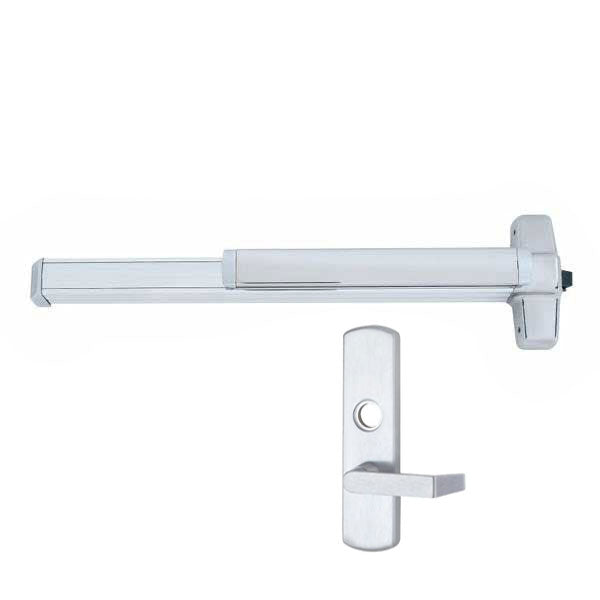

Von Duprin - 98L - Mortise Lock Exit Device - 06 Lever - Double Cylinder with Security Indicator - 3' Long - RHR - Fire Rated - Satin Chrome - Grade 1
Von Duprin - 98L - Mortise Lock Exit Device - 06 Lever - Double Cylinder with Security Indicator - 3' Long - RHR - Fire Rated - Satin Chrome - Grade 1
Quantity
Couldn't load pickup availability
98-F rim fire exit devices for all types of single and double doors with mullion, UL listed for fire exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
- Used for Rim and Vertical devices
- Includes Sex bolts
View full details
Details
Specifications:

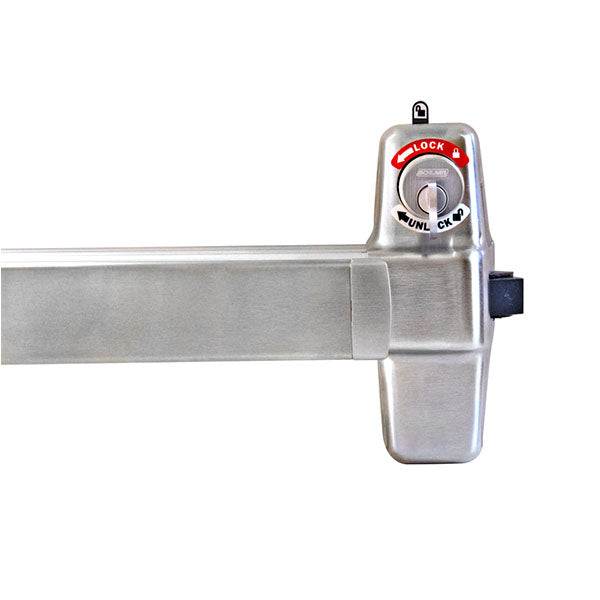

| Function | Double Cylinder with Security Indicator |
| Device Length | 3' Length -- 2'4' to 3' (711mm to 914mm) Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Lever | 06 Lever (Standard) |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Dogging | Comes standard |
| Handing | RHR |
| Finish | US26D - Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. Sex Bolts |
| Strikes | 299 – Dull black |
| Fired Rated | 3 Hours |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1, UL Listed, UL 10C |
