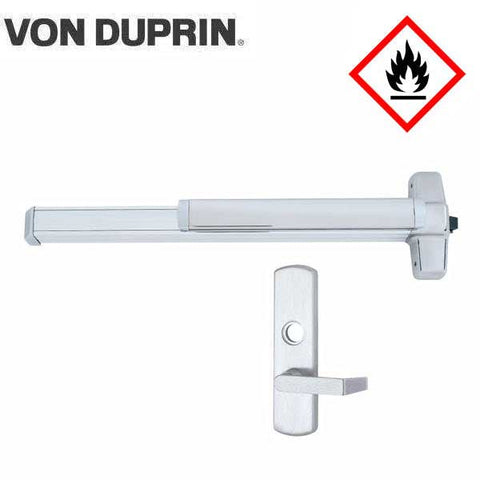

Von Duprin - 98L - Rim Exit Device - 06 Lever - Satin Chrome - LHR - 4 Foot - Fire Rated - Grade 1
Available to Order
SKU:
VNDP-98L-06-F-4-26D-LHR
NSID:
31075
- $1,700.82
-
$2,040.98 - $1,700.82
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
98-F rim fire exit devices for all types of single and double doors with mullion, UL listed for fire exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Specifications
| Lever | 06 Lever |
| Handing | Left Hand Reverse |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device lengths | 2'10" to 4' (864mm to 1219mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar |
Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Finish | 626 - US26D - Satin Chrome |
| Dogging feature | No mechanical dogging |
| Strikes | 299F – Dull black (Standard), 499F with mullions |
| Fire Rated | UL10C, 3 Hours |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
