Von Duprin

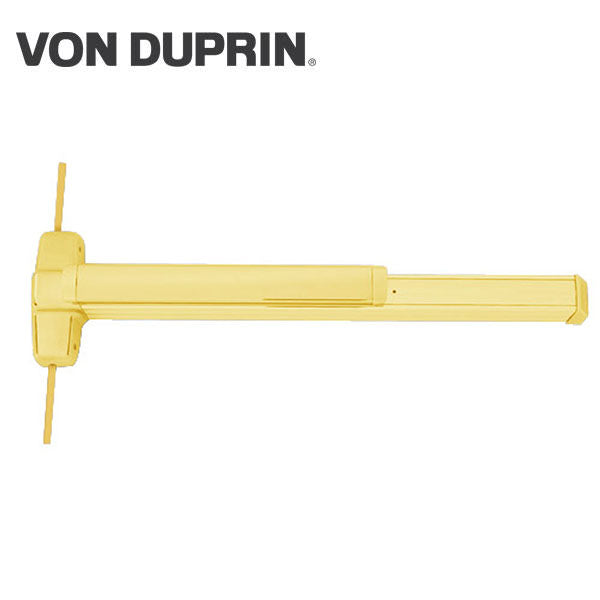

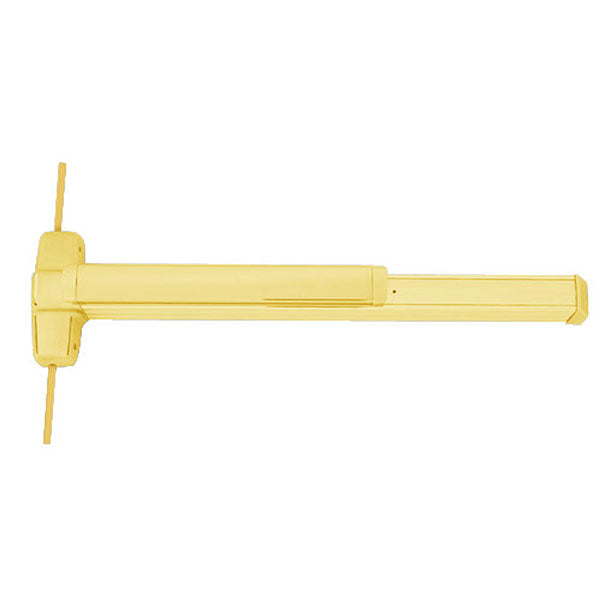

Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - Fire Rated - No Trim - Hex Key Dogging - Bright Brass - Field Reversible - 3 Foot

Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - Fire Rated - No Trim - Hex Key Dogging - Bright Brass - Field Reversible - 3 Foot

Available to order
SKU VNDP-9927EO-3-US3 NSID 67860
$1,828.56$2,194.27On Sale You save $365.71 (17%)
Please Note: This product ships within 2 Days

9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 9927 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.

Features

  • Uniquely designed center case
  • Vertical rods designed to reinforce the strength of the door
  • Reinforced top and bottom latch housing with strengthening strap
  • Stamped end cap mounting bracket
  • Top soffit latch with reinforced ratchet release bracket
  • Cast latch covers
  • Stronger latch mounting screws
  • Thru-bolted attachment points

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

    Specifications

    Trim No Trim - Exit Only
    Device functions Device ships EO; Field selectable;
    For TP, K or L remove NL drive screw from device
    Device lengths 3'
    Device centerline
    from finished floor    		 39 5⁄8" (1006 mm)
    Door Height
    		 84"
    Mechanism case
    dimensions    		 2-1/4" x 2-1/4" (57mm x 57mm)
    Projection push bar

    Pushbar neutral – 3 13⁄16" (97mm)
    Pushbar depressed – 3 1⁄16" (78mm)
    Door undercut 1⁄4" (7mm) recommended
    Top and bottom
    latch case    		 4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)
    Vertical rods 1⁄2" square tubing, standard rods accommodate 7' (2134mm)
    doors. Top rod length: 34 15⁄16" (887mm);
    Bottom rod length: 31 1⁄2" (794mm).
    Latch bolt Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
    Fasteners Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors and 325 SNB for top and bottom latch
    Dogging feature Hex Key dogging
    Finish

    605/US3 – Bright Brass
    Fire Rated UL 10C
    Certifications ANSI A156.3 – 2008 Grade 1.
