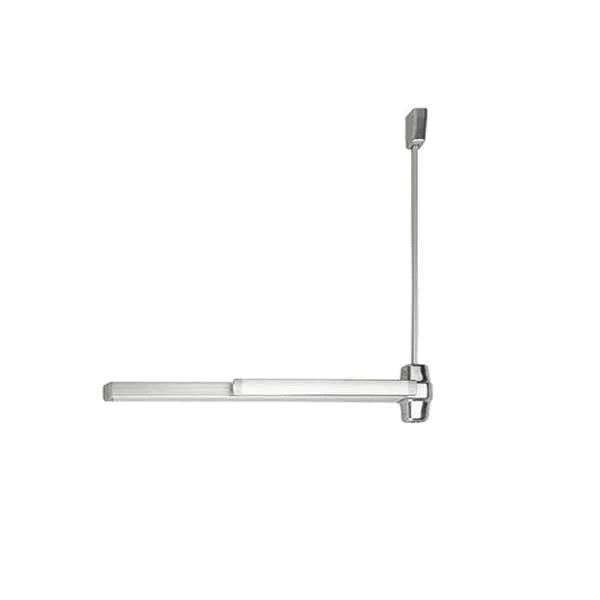

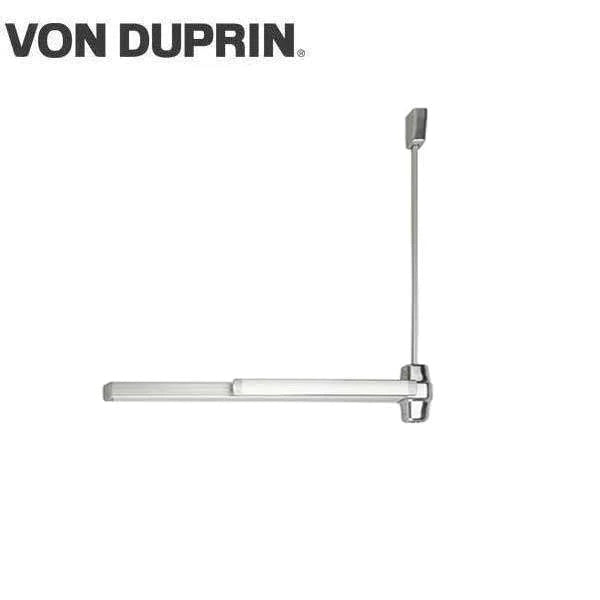

*Discontinued* Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - Fire Rated - No Trim - Hex Key Dogging - Satin Chrome - Optional Rods - 3 Foot
Out of Stock
SKU:
VNDP-9927EO-3-26D-LBRAFL
NSID:
38303
- $806.94
-
$3,845.00 - $806.94
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 9927 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features
- Uniquely designed center case
- Vertical rods designed to reinforce the strength of the door
- Reinforced top and bottom latch housing with strengthening strap
- Stamped end cap mounting bracket
- Top soffit latch with reinforced ratchet release bracket
- Cast latch covers
- Stronger latch mounting screws
- Thru-bolted attachment points
- $806.94
-
$3,845.00 - $806.94
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Trim | No Trim - Exit Only |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device lengths | 3' 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 5⁄8" (1006 mm) |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar | Pushbar neutral – 3 13⁄16" (97mm) |
| Door undercut | 1⁄4" (7mm) recommended |
| Top and bottom latch case |
4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm) |
| Vertical rods | 1⁄2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15⁄16" (887mm); Bottom rod length: 31 1⁄2" (794mm). |
| Latch bolt | Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw |
| Fasteners | Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch |
| Dogging feature | Hex Key dogging |
| Strikes |
299 – Dull black Bottom 248L-4 and 304L – unfinished |
| Fire Rated | UL 10C |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
