Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot
Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot

Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - Optional Rods - 3 Foot

Availability: In Stock
Wishlist
  • Product SKU: VNDP-9927EO-3-26D
  • NSID:
  • VNDP-9927EO-3-26D

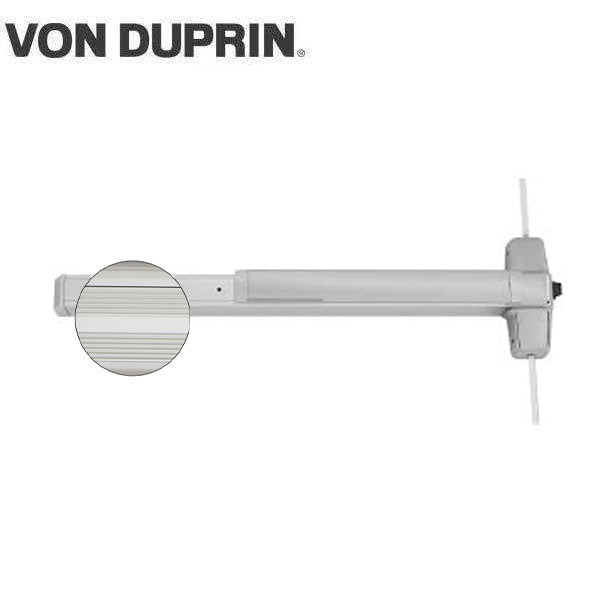

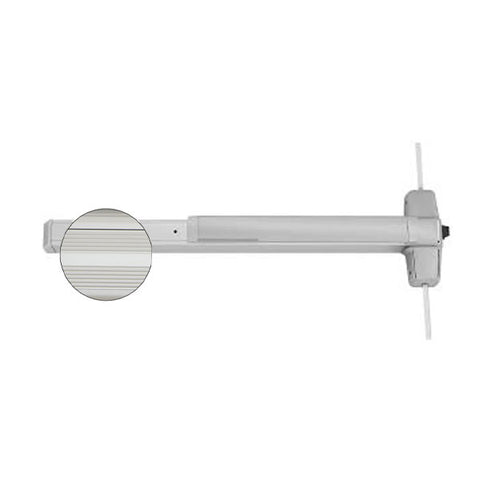

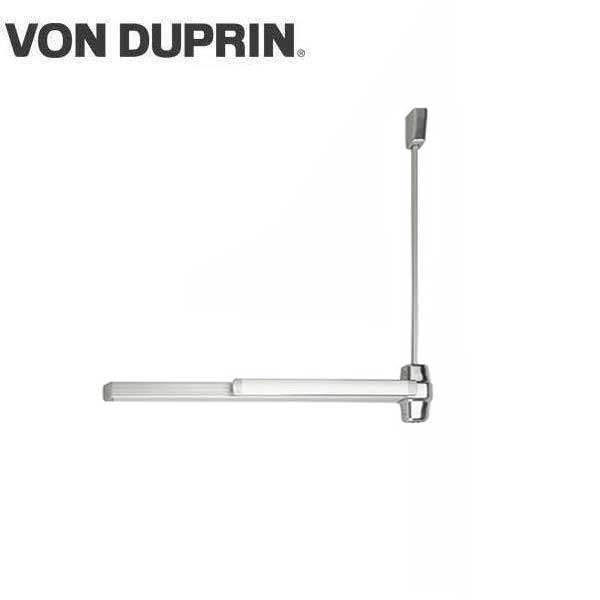

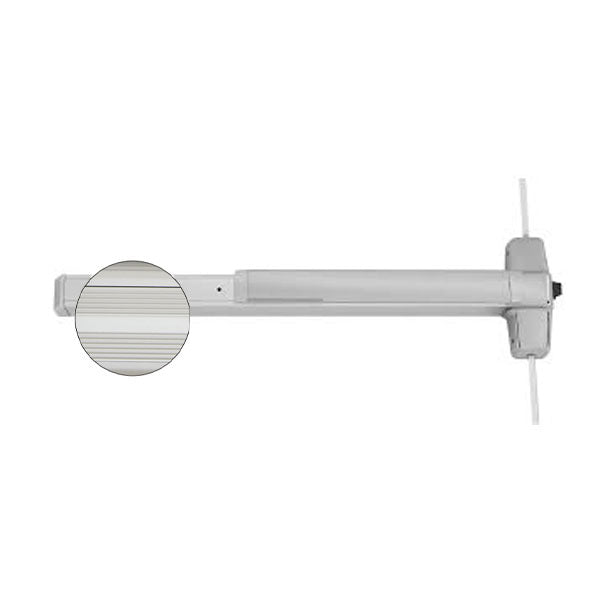

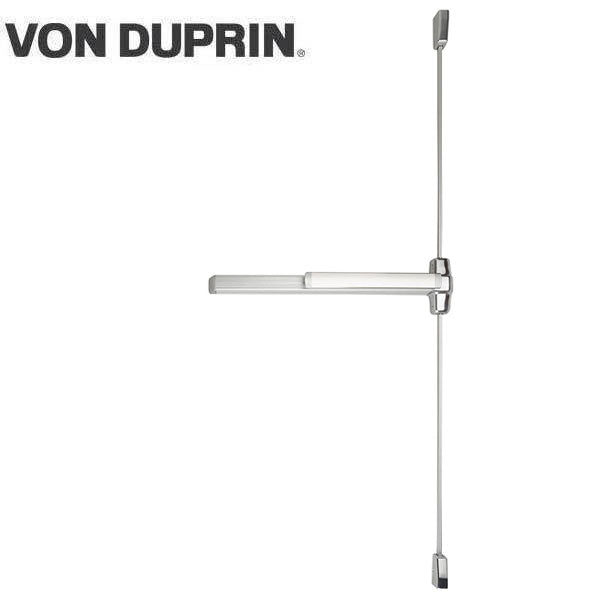

    9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 9927 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.


    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Trim No Trim - Exit Only
Device functions Device ships EO/DT/NL; Field selectable;
For TP, K or L remove NL drive screw from device
Device lengths 3' 2'4' to 3' (711mm to 914mm) Door size
Device centerline
from finished floor
39 5⁄8" (1006 mm)
Center case
dimensions
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection push bar

Pushbar neutral – 3 13⁄16" (97mm)
Pushbar depressed – 3 1⁄16" (78mm)

Door undercut 1⁄4" (7mm) recommended
Top and bottom
latch case
4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)
Vertical rods 1⁄2" square tubing, standard rods accommodate 7' (2134mm)
doors. Top rod length: 34 15⁄16" (887mm);
Bottom rod length: 31 1⁄2" (794mm).
Latch bolt Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw
Fasteners Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick
metal or wood doors, and 325 SNB for top and bottom latch
Dogging feature Hex key dogging standard
Strikes

299 – Dull black

Bottom 248L-4 and 304L – unfinished

Fire Rated No
Certifications ANSI A156.3 – 2008 Grade 1.

Downloads

Installation Instructions

Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
