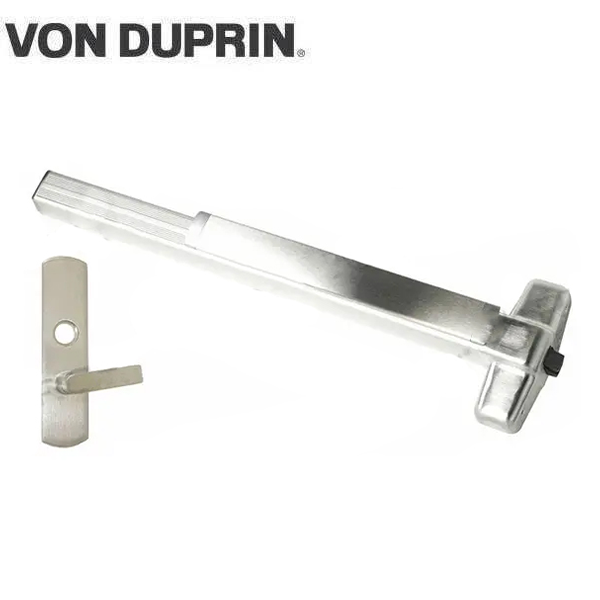

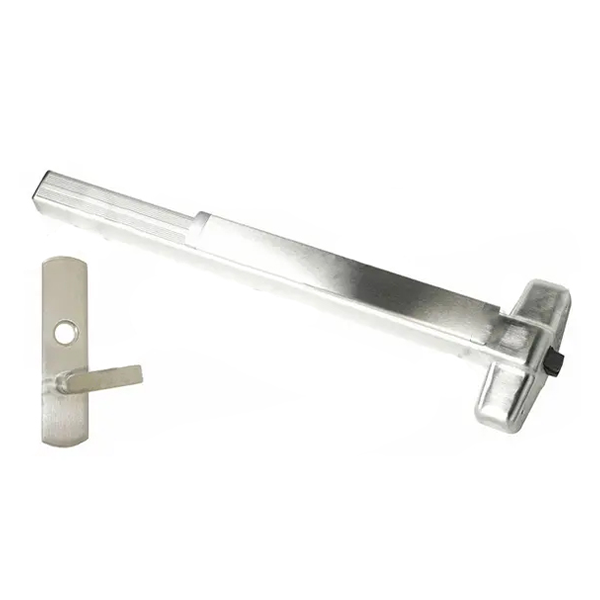

*Discontinued* Von Duprin - 99L06F-3-26D-RHR - Rim Exit Device with Classroom Lever - Grooved - Satin Chrome - 3 Foot - Fire Rated - Grade 1
Out of Stock
SKU:
VNDP-99L06F-3-26D-RHR
NSID:
- $1,639.35
-
$1,967.22 - $1,639.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected. Includes Classroom Trim Lever - Rim Cylinder Not Included
- $1,639.35
-
$1,967.22 - $1,639.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xHeavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
| Trim | Rim Exit Device with Classroom Lever (Rim Cylinder Not Included) |
| Device functions | Device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device |
| Device lengths | 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size |
| Device centerline from finished floor |
39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion |
| Center case dimensions |
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1/4" x 2 1/4" (57mm x 57mm) |
| Projection push bar neutral | 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm) |
| Latch bolt | Deadlocking, 3/4" (19mm) throw |
| Fasteners & sex bolts (SNB): | Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. |
| Finish | 26D Satin Chrome |
| Dogging feature | Hex key dogging |
| Strikes | 299 – Dull black |
| Fire Rated | Yes |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
